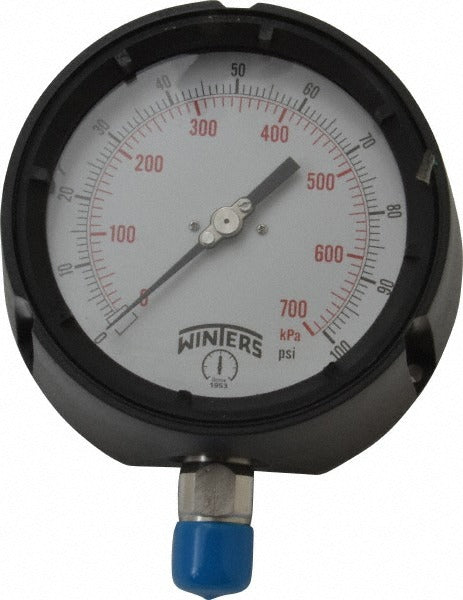

Winters PPC5064 Pressure Gauge 0-100 Psi 4.5in Dial Npt

Product Description

The WINTERS PPC5064 is a glycerine-filled process industrial pressure gauge designed for demanding industrial and commercial applications. It features a 4.5-inch analog dial with a dual scale display and reads from 0 to 100 psi with 0.5% of scale accuracy, meeting ANSI/ASME Grade 2A standards. The wetted parts are 316 stainless steel, and the case is constructed from thermoplastic with a polycarbonate lens. The glycerine fill dampens vibration and pressure spikes, protecting the Bourdon tube and extending service life. This gauge is installed by pipefitters, mechanical contractors, and instrumentation technicians in process, HVAC, and industrial piping systems.

The PPC5064 is suited for process lines, hydraulic circuits, compressed air systems, water treatment, and general industrial service where accurate pressure monitoring is required. The lower-mount NPT connection simplifies installation into standard pipe taps. The IP65 ingress protection rating makes it appropriate for wet or wash-down environments. Operating temperature range spans -40 degrees F to 250 degrees F, covering most process conditions encountered in commercial and light industrial settings.

Key Features

• Glycerine-filled for vibration and pulsation dampening
• 316 stainless steel Bourdon tube and wetted parts for corrosion resistance
• 0.5% of scale accuracy per ANSI/ASME Grade 2A
• Dual-scale analog dial, 4.5 inches diameter
• IP65 rated for protection against dust and water jets
• Thermoplastic case with polycarbonate lens for impact and chemical resistance

Compatibility

Designed as an OEM-style and replacement fit for process industrial pressure gauge applications requiring a 1/2-inch NPT lower-mount connection with a 4.5-inch dial and 0 to 100 psi range.

Installation Notes

Installation should be performed by a licensed pipefitter or qualified instrumentation technician. Isolate and depressurize the system completely before removing or installing any pressure gauge. Use appropriate thread sealant compatible with the process fluid and apply it to the male NPT threads only, keeping sealant clear of the first thread to prevent contamination of the system. Verify that the process fluid and operating conditions fall within the gauge specifications before returning the system to service.
