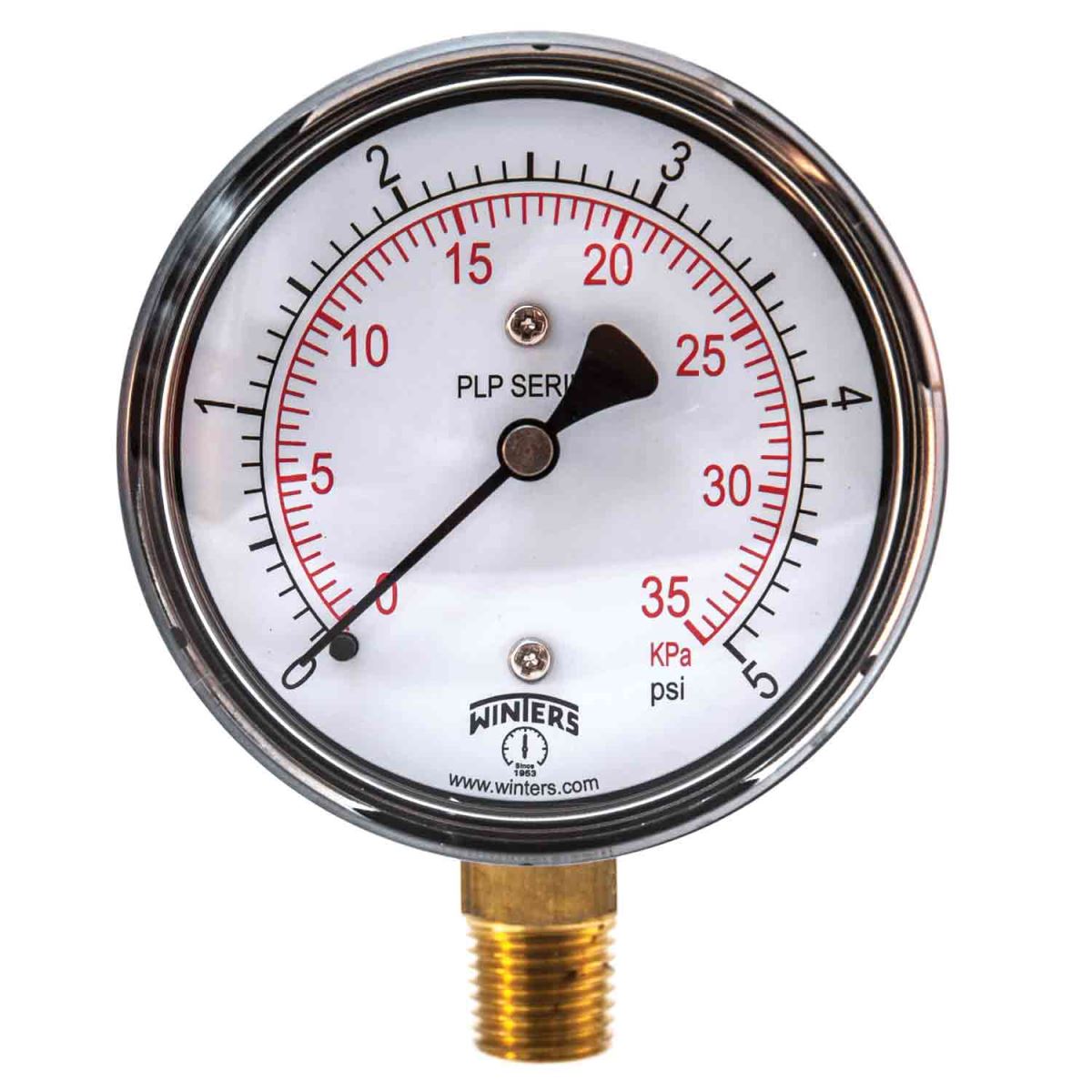

WINTERS PLP305 Low Pressure Gauge 0-5 PSI 2.5 Inch

Product Description

The WINTERS PLP305 is a low pressure gauge designed to measure pressures from zero to five psi. This product features a dual dial that shows both psi and kPa scales. The gauge has a quarter inch NPT bottom connection and is housed in a painted black steel case with a polycarbonate lens. It utilizes brass for the socket and has a phosphor bronze diaphragm element. The gauge is suitable for applications involving gaseous media and conforms to ASME B40.100 standards. It operates effectively in ambient and process temperatures ranging from negative forty to one hundred fifty degrees Fahrenheit.

• Dual dial displays psi and kPa for easy reading.
• Constructed with brass wetted parts for versatility with various media.
• Ideal for measuring pressure in air compressors, gas burners, and vacuum ovens.

Product Highlights

The WINTERS PLP305 is designed for accurate pressure measurement in a variety of applications.

Product Information

Standard Information

• Manufacturer: Winters Instruments
• Part Number: WINPLP305

Technical Specifications

• Dial Size: 2.5 inches
• Case Material: Steel
• Connection: 1/4 inch Bottom
• Pressure Range: 0 - 5 psi
• Temperature Range: -40 to 150 degrees Fahrenheit
• Accuracy: ±3-2-3% ANSI/ASME Grade B
• Scale Type: Dual dial (psi/kPa)
• Over-Pressure Limit: 30% of full scale value
