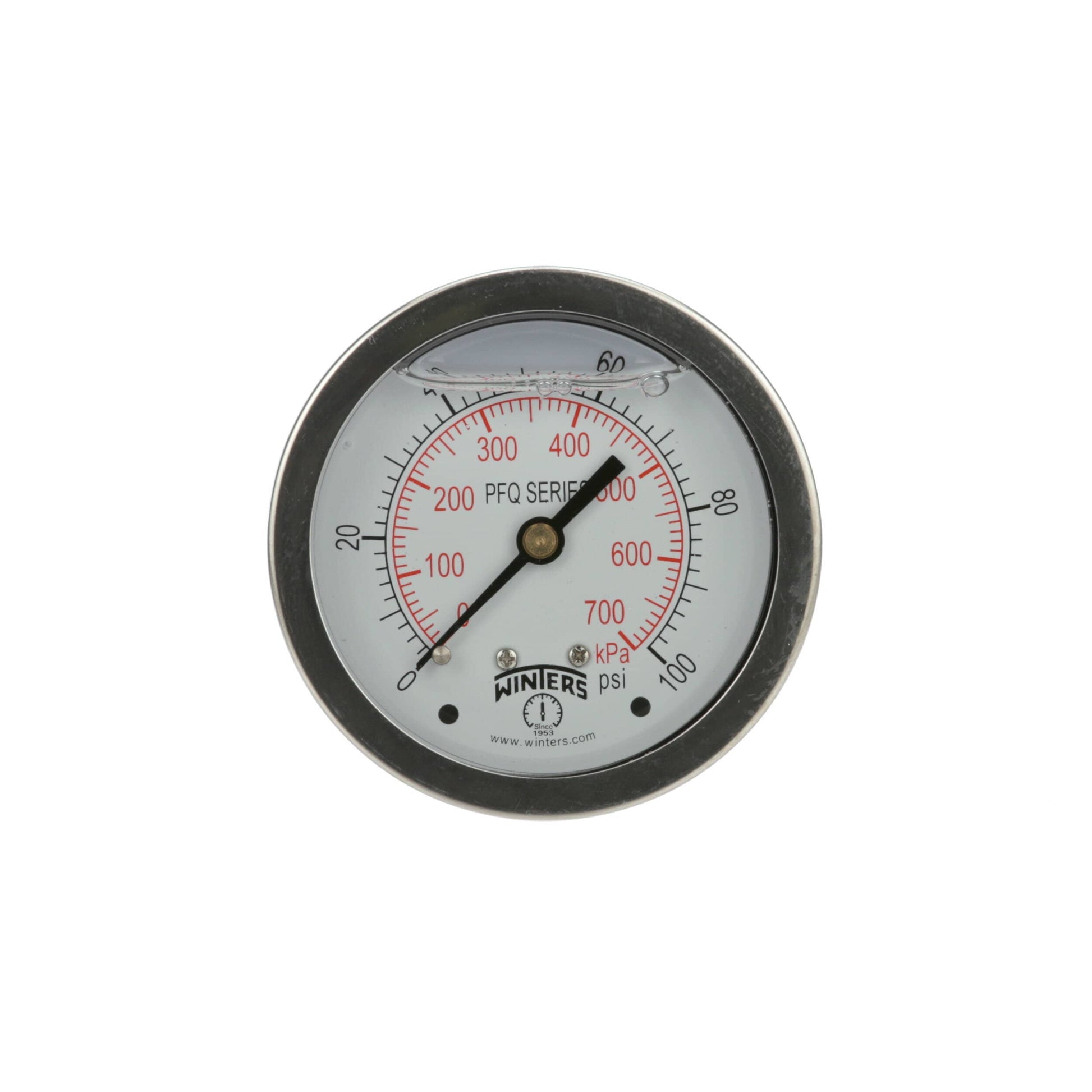

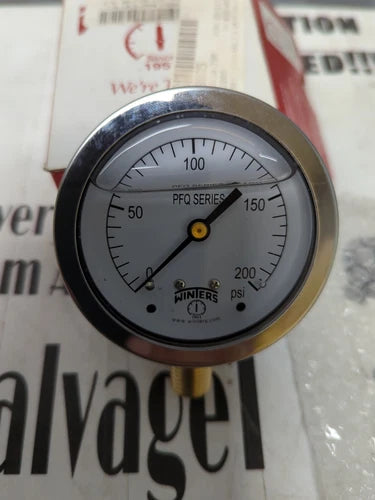

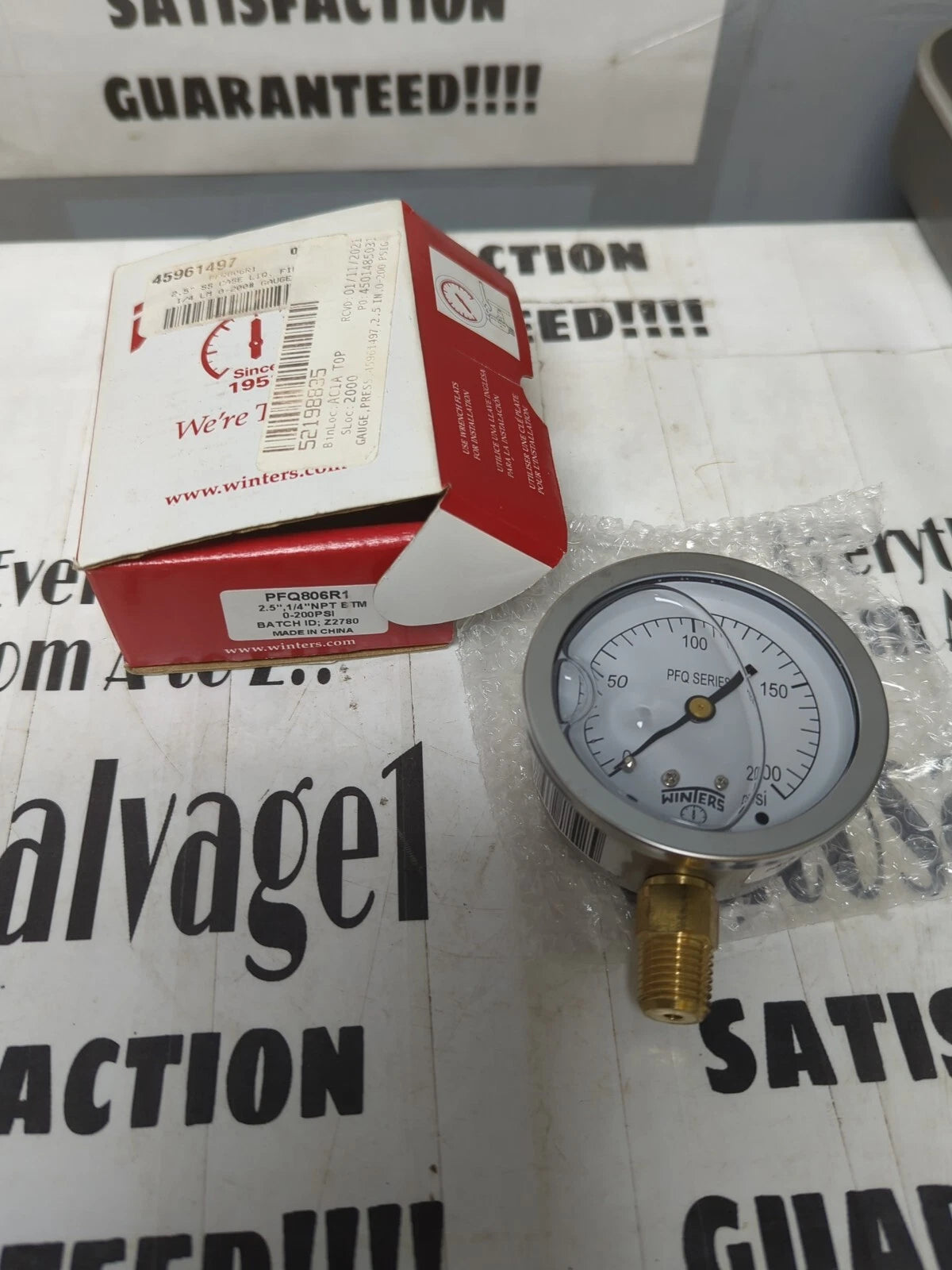

WINTERS PFQ806R1 Industrial Liquid Filled Pressure Gauge

Product Description

The WINTERS PFQ806R1 is a two point five-inch industrial pressure gauge specializing in pressure measurement. This gauge features a liquid-filled stainless steel case, ideal for dampening pulsations. It includes a one fourth-inch NPT connection and measures pressure ranges between zero to two hundred PSI. The precision dial is made of white aluminum with black and red markings for easy reading. Its internal components are crafted from brass, enhancing durability. The gauge utilizes a polycarbonate lens and is secured with a crimp-on AISI 304 stainless steel ring. Glycerin-filled for enhanced stability, it meets ASME B40.100 standards and is rated IP65 for protection against dust and water.

• Liquid-filled case for reduced vibration and pulsation.
• One fourth-inch NPT connection for easy installation.
• Operable in ambient temperatures from negative four degrees Fahrenheit to one hundred fifty degrees Fahrenheit.

Product Highlights

This gauge is suitable for various industrial applications requiring precise pressure readings.

Product Information

Standard Information

• Brand: Winters
• MPN: PFQ806R1

Technical Specifications

• Connection Diameter: one fourth inch
• Movement, Socket Tube: Brass
• Pressure Range: 0-200 PSI
• Dial: White aluminum with black and red markings
• Case: AISI 304 stainless steel
• Lens: Polycarbonate
• Ring: AISI 304 stainless steel, crimp-on
• Fill Liquid: Glycerin
