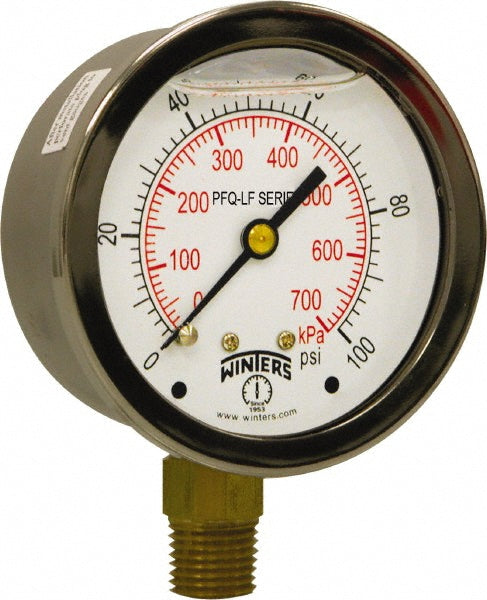

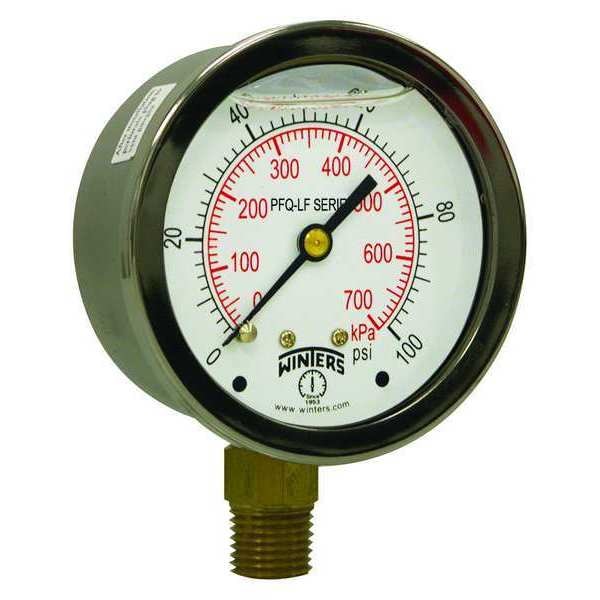

Winters PFQ804LF Lead-Free Pressure Gauge 0 to 100 psi 2 1/2 in Dial Bottom Location

Product Description

The WINTERS PFQ804LF Lead-Free Pressure Gauge is designed for precise pressure monitoring from 0 to 100 psi. Featuring a 2 1/2 inch dial and a 1/4 inch NPT bottom connection, this gauge is constructed with a 304 stainless steel case and filled with glycerin for vibration resistance. It offers an accuracy of +/-1.50% and is NSF Certified, making it suitable for plumbing, heating, air conditioning, pumps, compressors, and hydraulic systems in harsh environments.

• Accuracy of +/-1.50%
• Bottom process connection location with 1/4 inch NPT
• Liquid-filled case for vibration resistance and NSF Certified

Product Highlights

Durable 304 stainless steel construction with glycerin fill, ideal for precise pressure measurement in demanding applications.

Product Information

Standard Information

• Brand: WINTERS
• Manufacturer Part Number: PFQ804LF
• Country of Origin: China

Technical Specifications

• Case Depth: 0.97 mm
• Case Diameter: 60 mm
• Dial Size: 2 1/2 inch
• Accuracy: +/-1.50%
• Connection Location: Bottom
• Connection Type: NPT
• Process Connection Size: 1/4 in
• Application: Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps
• Case Material: 304 Stainless Steel
• Series: PFQ-LF
• Lens Material: Plastic
• Pressure Range: 0 to 100 psi
• IP/NEMA Rating: IP65
• Liquid Filled: Yes
• Hazardous Location Rating: Not Rated
• Panel-Mountable: No
• Blowout Safety Back: No
• Special Options: Restricted Orifice
• Liquid Filler: Glycerin
• Case Color: Metallic
• Characteristics: Crimp-On Bezel, CRN Registered, Pulsation Resistant, Restricted Orifice
• Calibration Certificate Included: No
• Socket Material: Lead Free Brass
• NSF Certified: Yes
• Wetted Materials: Brass / Bronze
• Standards: ASME, CRN, NSF-61-372, ASME B40.100
• Secondary Scale Units: kPa
• Pointer Color: Black
• Over-Pressure Limit: 25%
• Bezel Material: 304 Stainless Steel
• Operating Temperature Range: -4 to 150 Degrees F
• Removable Bezel: Yes
• Ambient Operating Temperature Range: -4 to 150 Degrees F (-20 to 65 Degrees C)
• Scale Type: Dual
• Sensor Type: Bourdon Tube
• Bezel Gasket Material: Silicone
• Accuracy Scale: Full Scale
• Sensor Material: Phosphor Bronze
• Cleaned for Oxygen Service: No
• Freeze Resistant Movement: No
• Case Construction: Welded Joint
• Dry Dampening Feature: None
• Secondary Pressure Range: 0 to 690 kPa
• Field Fillable: No
• Vibration Resistance: Liquid-Filled
• Dial Color: White
• Pressure Range Type: Pressure
• Bezel Mounting Type: Crimped
• Movement Material: Stainless Steel
• Dial Face Material: Aluminum
• Includes Vent Plug: Yes
• Process Connection Gender: Male
• Non-Sparking: No
• Includes Mounting Hardware: No
• Pointer Material: Aluminum
• NEMA Enclosure Rating: 4
• Gauge Type: Liquid Fillable
• Dial Type: Analog
