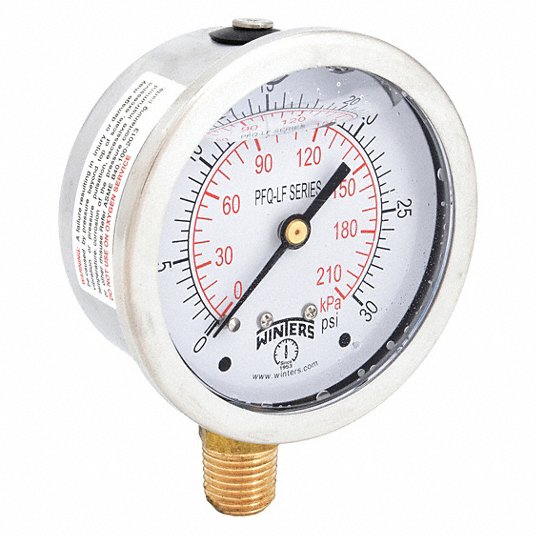

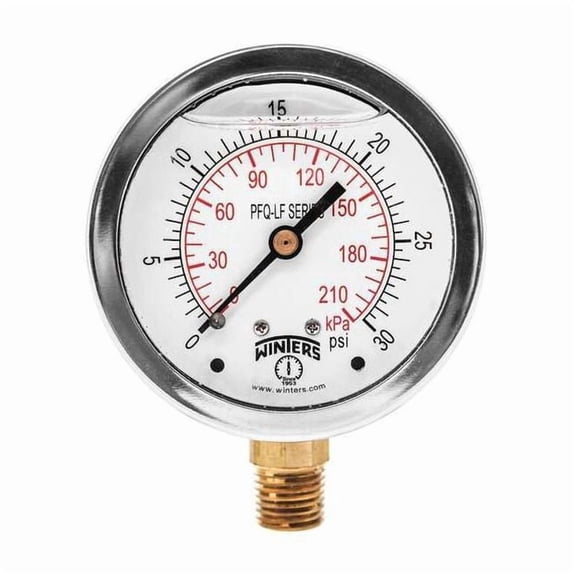

Winters PFQ802LF lead-free pressure gauge 0 psi to 30 psi 2 1/2 in dial bottom

Product Description

The WINTERS PFQ802LF Lead-Free Pressure Gauge is designed for measuring water pressure in applications such as water treatment plants where vibration and pulsation are present. Featuring a 2 1/2 inch dial and a pressure range of 0 psi to 30 psi, this gauge incorporates low-lead compliant brass and a liquid-filled case to resist vibration and pulsation, effectively reducing needle flutter. It has a 1/4 inch NPT male bottom process connection and an AISI 304 stainless steel case, ensuring durability and accurate readings with a ±1.50% accuracy.

• Low-lead compliant brass construction for safe use in water applications
• Liquid-filled case resists vibration and pulsation for stable readings
• Reduces needle flutter, ensuring clear and consistent pressure indication

Product Highlights

Lead-Free Pressure Gauge with liquid-filled case for vibration resistance and accurate water pressure measurement.

Product Information

Standard Information

• Brand: WINTERS
• Manufacturer Part Number: PFQ802LF
• Country of Origin: China

Technical Specifications

• Accuracy: ±1.50%
• Process Connection: 1/4 in NPT Male
• Process Connection Location: Bottom
• Case Material: AISI 304 Stainless Steel
• Lens Material: Plastic
• Dial Size: 2-1/2 in
• Gauge Type: Lead-Free Pressure Gauge
• Pressure Range Type: Pressure
• Wetted Parts Material: Lead Free Brass Phosphor Bronze
• Pressure Range: 0 psi to 30 psi
• Process Connection Gender: Male
• Process Connection Size: 1/4 in
• Process Connection Type: NPT
• Dry Dampening Feature: None
• Field Fillable: No
• Fill Liquid: Glycerin
• Liquid Filled: Yes
• Primary Scale Units: psi
• Series: PFQ-LF
• Bezel Gasket Material: Silicone
• Bezel Material: 304 Stainless Steel
• Bezel Mounting Type: Crimped
• Blowout Safety Back: No
• Case Color: Metallic
• Case Depth: 33 mm
• Case Diameter: 67.1 mm
• Cleaned for Oxygen Service: No
• Dial Color: White
• Dial Face Material: Aluminum
• Freeze Resistant Movement: No
• Calibration Certificate Included: No
• Mounting Hardware Included: No
• Vent Plug Included: Yes
• Mounting Type: Stem-Mount
• Non-Sparking: No
• Over-Pressure Limit: 25%
• Pointer Material: Aluminum
• Removable Bezel: Yes
• Scale Type: Dual
• Secondary Scale Units: kPa
• Sensor Material: Phosphor Bronze
• Sensor Type: Bourdon Tube
• Socket Material: Lead Free Brass
• Standards: ASME, CRN
• Panel Mountable: No
• Pointer Color: Black
• IP Rating: IP65
• NEMA Enclosure Rating: 4
• Operating Temperature Maximum: 150 °F
• Operating Temperature Minimum: -4 °F
• Primary Scale Pressure Maximum: 30 psi
• Primary Scale Pressure Minimum: 0 psi
• Process Media Temperature Maximum: 150 °F
• Process Media Temperature Minimum: -4 °F
• Secondary Scale Pressure Maximum: 200 kPa
• Secondary Scale Pressure Minimum: 0 kPa
• Compatible Brand: Universal
• Vibration Resistance: Liquid-Filled
• Category: Pressure Gauges
• Application Category: Hydraulics, Pneumatics, Pumps & Plumbing, Air Pressure Gauges
• Application: Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps, Plumbing, Heating, Air
