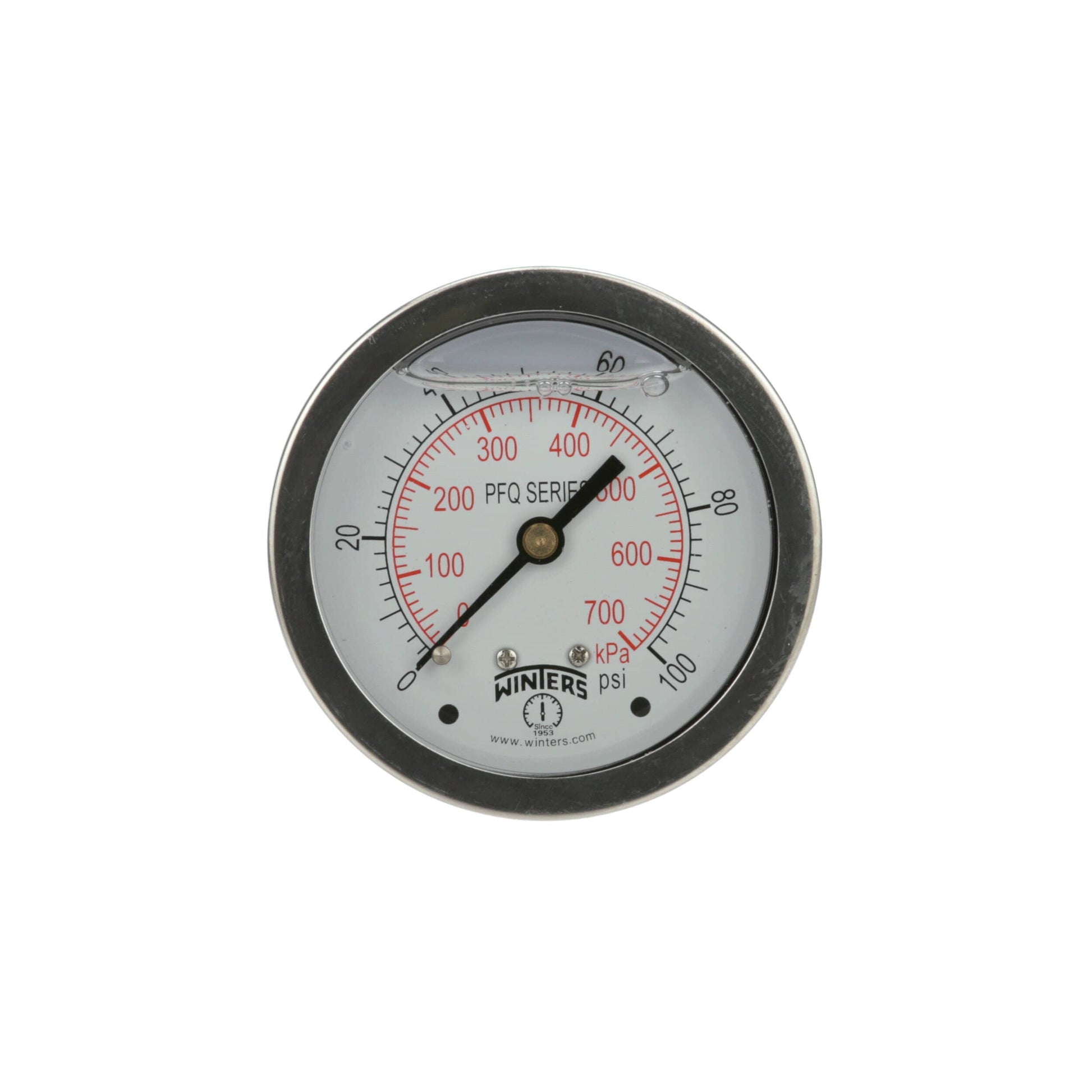

WINTERS PFQ798R1 Stainless Steel Liquid Filled Pressure Gauge

Product Description

The WINTERS PFQ798R1 is a stainless steel liquid filled pressure gauge designed for durability and accuracy in various applications. It features a robust construction that withstands pulsation effects, thanks to its liquid-filled design using glycerin. This gauge is suitable for installation in pumps, compressors, hydraulic presses, and motors operating in challenging environments.

• Manufactured with a stainless steel case for increased durability.
• Complies with ASME B40.100 for pressure gauges.
• Available with single or dual scale readings.

Product Highlights

This gauge is perfect for HVAC, plumbing, and industrial applications where reliable pressure readings are crucial.

Product Information

Standard Information

• Brand: WINTERS
• MPN: PFQ798R1

Technical Specifications

• Dial Sizes: 1.5 inches, 2 inches, 2.5 inches, 4 inches
• Material: AISI 304 stainless steel
• Lens: Polycarbonate
• Connection Size: 1/8, 1/4, or 1/2 NPT
• Fill Liquid: Glycerin
• Accuracy: ±2.5% to ±1.5% of full scale
• Working Pressure Limit: Maximum 75% of full scale value
• Temperature Range: -40°F to 200°F (dry), -4°F to 150°F (glycerin filled)
• Enclosure Rating: IP65
