WINTERS PETG203 Winters PET Series Gas Test Gauge 2 inch

Product Description

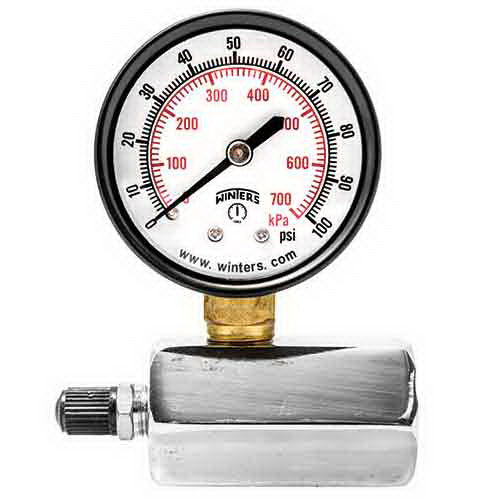

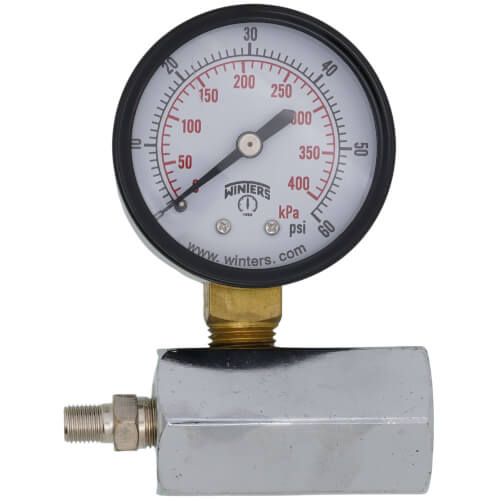

The Winters PET Series Gas Test Gauge PETG203 is designed for pressure testing applications in both residential and commercial environments. This assembly includes a bleed port and a durable plated housing for reliability. It features a black painted steel case and a polycarbonate lens for protection. The gauge's two-inch dial has a dual scale for easy reading in psi and kPa, making it suitable for testing gas, air, and water lines. Additionally, this product is CRN registered for safety.

• Two-inch dial display for clear readings.
• Equipped with a three-quarter FNPT connection.
• Accuracy level of +/- three-two-three percent as per ANSI/ASME Grade B standards.

Product Highlights

This gas test gauge is ideal for HVAC technicians, plumbers, and maintenance professionals for accurate pressure measurements.

Product Information

Standard Information

• Brand: WINTERS
• MPN: PETG203

Technical Specifications

• Series: PET Series
• Gauge Type: Gas
• Dial Size: 2 inches
• Measuring Range: 0 - 60 psi
• Units Of Measure: psi/kPa
• Accuracy: +/- 3-2-3% Full Scale
• Enclosure Rating: IP52
• Ambient/Process Temperature: -40°F to 150°F (-40°C to 65°C)
• Connection Size: 3/4 inches
• Connection Type: FNPT
• Case Material: Steel
• Lens Material: Polycarbonate
• Dial Face: White Aluminum with Black and Red Markings
• Pointer Material: Aluminum
• Movement Material: Brass
• Tube Material: Phosphor Bronze
• Socket Material: Brass
• Material In Contact With Media: Brass, nickel plated brass
• Finish: Black Painted
• Type: Gas, Dual Scale
