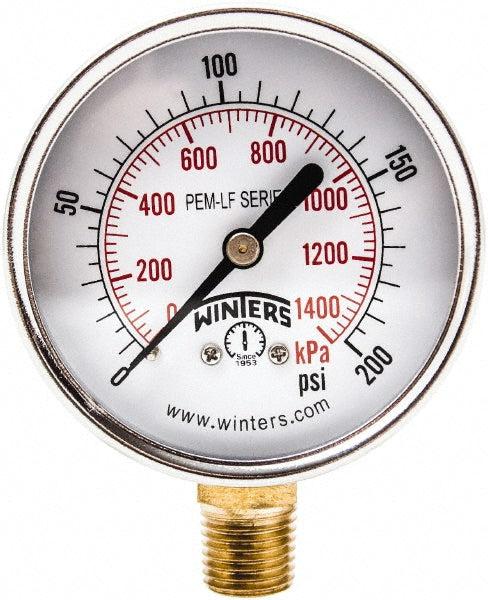

Winters PEM216LF lead-free pressure gauge 0 to 200 psi 2-1/2 in. dial

Product Description

The WINTERS PEM216LF is a lead-free pressure gauge designed for accurate measurement in various applications. It features a 2-1/2 inch dial, a durable steel case, and brass/bronze wetted parts, making it suitable for air compressors, HVAC/R, and plumbing systems. This gauge measures pressure from 0 to 200 psi with a 1/4 inch MNPT bottom connection.

• Lead-free construction with brass/bronze wetted parts for diverse applications.
• Features a 2-1/2 inch dial and measures pressure from 0 to 200 psi.
• Equipped with a 1/4 inch MNPT bottom connection and a durable steel case.

Product Highlights

Lead-free pressure gauge with steel case and brass/bronze wetted parts, ideal for general purpose pressure monitoring.

Product Information

Standard Information

• Brand: WINTERS
• Manufacturer Part Number: PEM216LF
• Country of Origin: China

Technical Specifications

• Brand: WINTERS
• MPN: PEM216LF
• Series: PEM-LF
• Gauge Type: Lead-Free Pressure Gauge
• Dial Size: 2-1/2 in.
• Pressure Range: 0 to 200 psi
• Accuracy: ±3-2-3%
• Connection Size: 1/4 in.
• Connection Type: MNPT
• Connection Location: Bottom
• Mounting Type: Stem-Mount
• Case Material: Steel
• Case Color: Black
• Wetted Parts Material: Brass / Bronze
• Sensor Material: Phosphor Bronze
• Socket Material: Brass
• Lens Material: Plastic
• Liquid Filled: No
• Operating Temperature Range: -40 deg. F to 150 deg. F
• Non-Sparking: No
• Panel Mountable: No
• Primary Range Units: psi
• Application: Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
• Standards: NSF-61-372; ANSI/ASME Grade B; IP52; ASME B40.100; CRN
• Country of Origin: China
• Bezel Material: Steel
• Calibration Certificate Included: No
• Scale Type: Dual
• Bourdon Tube Material: Bronze
