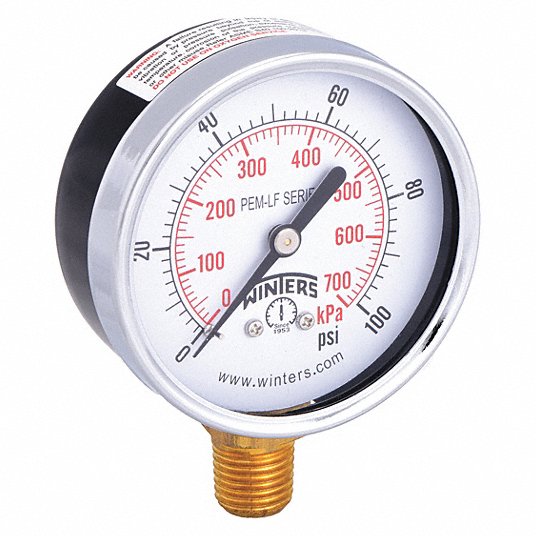

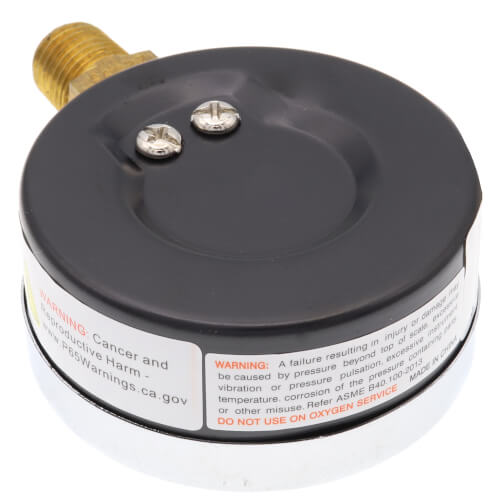

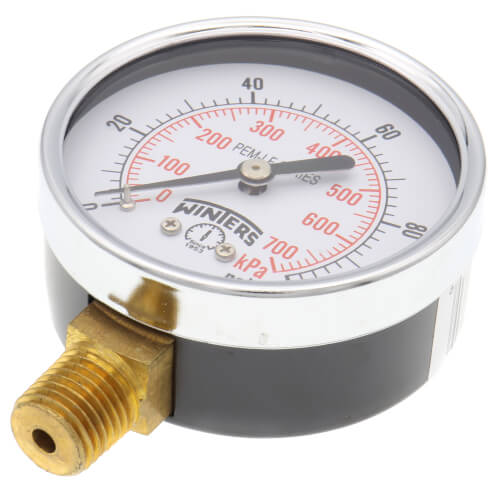

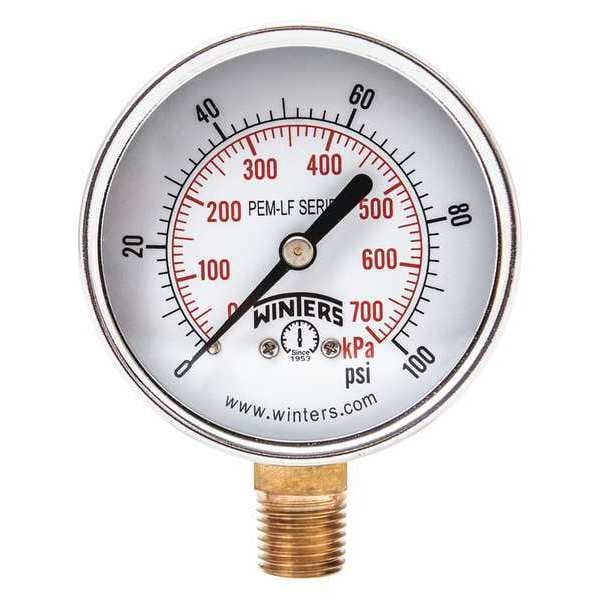

Winters PEM214LF 2-1/2 inch Pem Dual Scale Economy Pressure Gauge, Lead Free

Product Description

The WINTERS PEM214LF is a 2-1/2 inch Pem Dual Scale Economy Pressure Gauge, designed for general purpose pressure measurement. It features a black steel case and lead-free brass wetted parts, making it suitable for potable water applications. With a 1/4 inch NPT bottom connection and ±3-2-3% accuracy, this gauge measures pressure from 0 to 100 PSI. It is ASME B40.100 compliant and NSF-61-372 certified for lead-free use.

• Lead-free brass wetted parts suitable for potable water applications.
• ASME B40.100 compliant and NSF-61-372 certified.
• Features a 2-1/2 inch dial with a 1/4 inch NPT bottom connection.

Product Highlights

General purpose pressure gauge with lead-free construction, ±3-2-3% accuracy, and a 0-100 PSI range.

Product Information

Standard Information

• Brand: WINTERS
• Manufacturer Part Number: PEM214LF
• Country of Origin: China

Technical Specifications

• Product Type: Pressure Gauge
• Manufacturer Part Number: PEM214LF
• Brand: WINTERS
• Series: PEM-LF
• Gauge Type: Lead-Free Pressure Gauge
• Dial Size: 2-1/2 inch
• Process Connection Type: NPT
• Process Connection Size: 1/4 inch
• Process Connection Gender: Male
• Process Connection Location: Bottom
• Primary Pressure Range: 0 to 100 psi
• Primary Scale Units: psi
• Secondary Pressure Range: 0 to 690 kPa
• Secondary Scale Units: kPa
• Max Pressure: 100 psi
• Accuracy: ±3-2-3%
• Accuracy Grade: Grade B
• Accuracy Scale: Mid-Scale
• Case Material: Steel
• Case Color: Black
• Case Finish: Painted
• Case Construction: Welded Joint
• Case Depth: 1.102 inch
• Case Diameter: 2.488 inch
• Lens Material: Plastic
• Dial Color: White
• Dial Face Material: Aluminum
• Bezel Material: Steel
• Bezel Type: Friction Ring
• Socket Material: Lead Free Brass
• Sensor Material: Phosphor Bronze
• Wetted Parts Material: Lead Free Brass, Phosphor Bronze
• Movement Material: Stainless Steel
• Pointer Material: Aluminum
• Pointer Color: Black
• Scale Type: Dual
• Gauge Operation Type: Dry
• Liquid Filled Case: No
• Case Liquid: None
• Field Fillable: No
• Dampening Feature: None
• Vibration Resistance: None
• Ambient Operating Temperature Range: -40 to 150 Degrees F (-40 to 65 Degrees C)
• Process Media Temperature Range: -40 to 150 Degrees F
• Over-Pressure Limit: 25% of Full Scale
• Standards: ANSI/ASME, CRN, NSF
• IP Rating: IP52
• NEMA Enclosure Rating: 5
• Application: Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
• Compatible Process Media: Non-Clogging, Non-Corroding, Potable Water
• Mounting Type: Stem-Mount
• Blowout Safety Back: No
• Cleaned for Oxygen Service: No
• Freeze Resistant Movement: No
• Non-Sparking: No
• Panel Mountable: No
• Removable Bezel: No
• Overall Length: 3.189 inch
