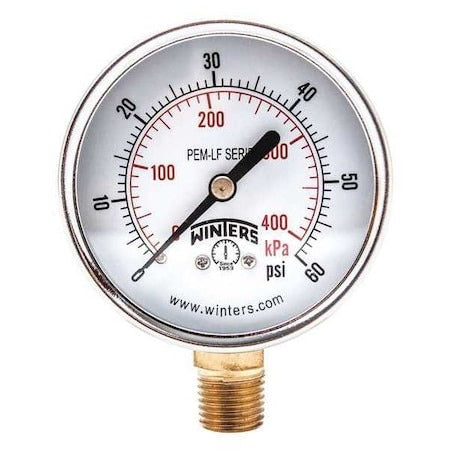

Winters PEM213LF Pressure Gauge 2.5 in Dial

Product Description

Winters PEM213LF is a lead-free pressure gauge with a 2.5 in dial and a 0 to 60 psi (0 to 410 kPa) dual scale, intended for plumbing, heating, air conditioning, pneumatic and potable water applications. It has a 1/4 in NPT male bottom connection, a black painted steel case with polycarbonate lens, and a phosphor bronze Bourdon tube. Accuracy is +/-3-2-3% (ANSI/ASME Grade B) and enclosure rating IP52; operating range -40 to 150 F (-40 to 65 C).

• 0 to 60 psi (0 to 410 kPa) dual-scale measurement with 2.5 in nominal dial
• Lead-free brass/phosphor bronze wetted parts, 1/4 in NPT male bottom connection, steel painted case with polycarbonate lens
• Accuracy +/-3-2-3% (ANSI/ASME Grade B), IP52 enclosure rating, operating temperature -40 to 150 F

Product Highlights

Lead-free wetted parts; 0-60 psi dual scale; 2.5 in dial; 1/4 in NPT bottom connection; IP52

Product Information

Standard Information

• Brand: WINTERS
• Manufacturer Part Number: PEM213LF
• Country of Origin: China
