Winters Instruments TTD408 Tridicator 3-inch 0-100 psi 70-320 F (Back Mount)

Brand: WINTERS INSTRUMENTS
SKU: TTD408
Availability: In Stock

Ships same day if ordered by 12 pm
$77.87
$77.87
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

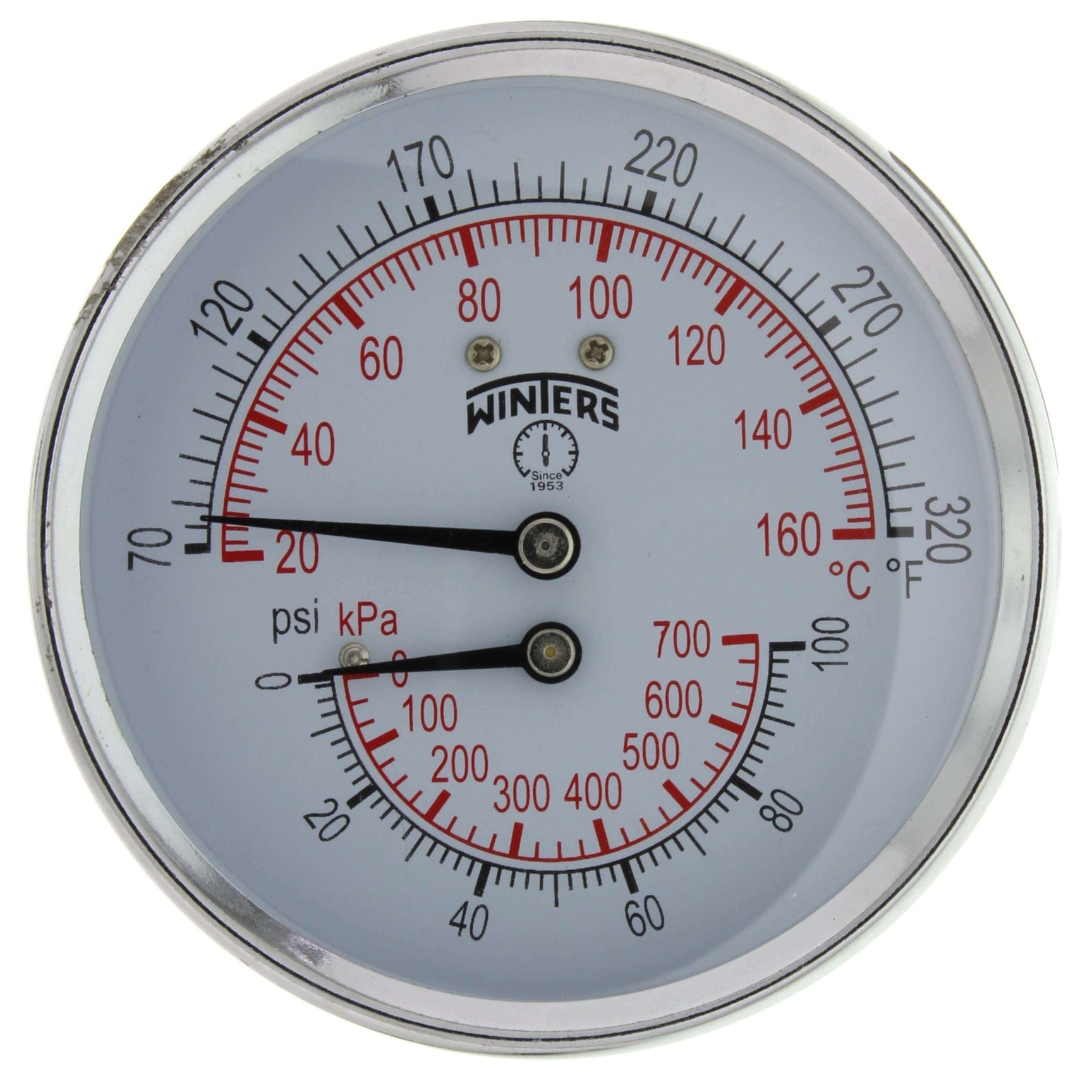

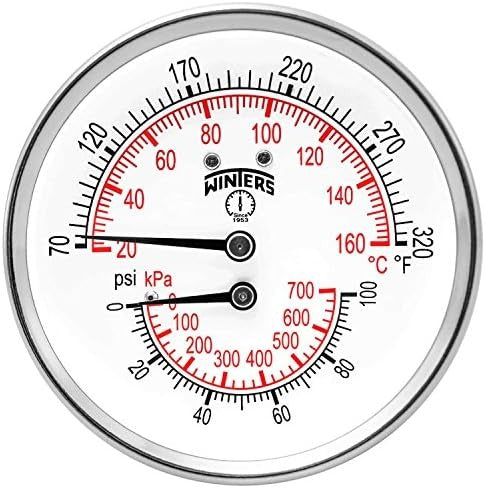

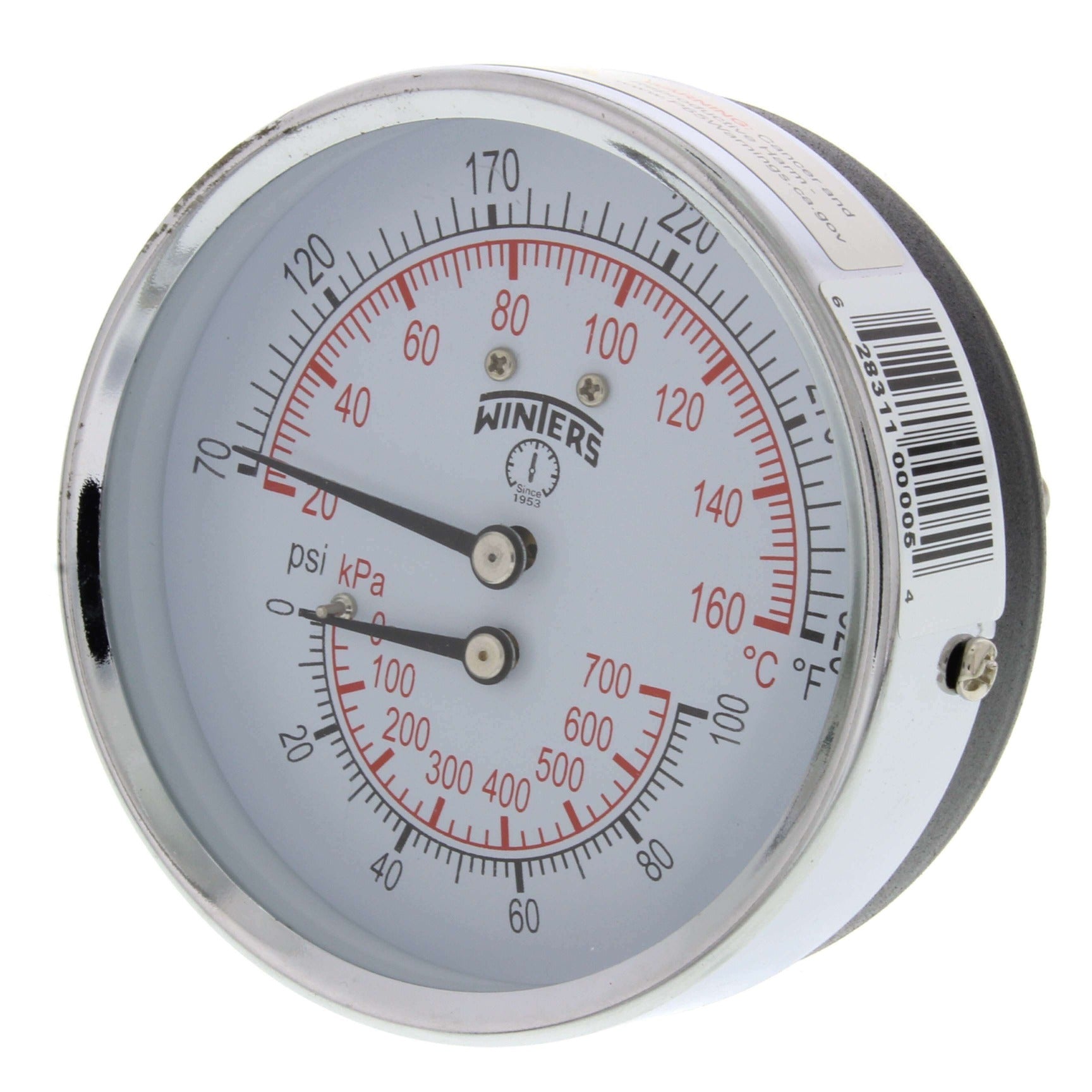

Winters Instruments TTD408 is a 3-inch tridicator that displays pressure and temperature on a single dial, measuring 0-100 psi and 70-320 F with a 1/2" back threaded connection. The unit uses a Bourdon tube for pressure sensing and a bi-metallic coil for temperature sensing, with brass wetted parts and an anodized black aluminum pointer. It is rated IP50 and has specified ambient and process temperature limits.

  • Combined pressure (0-100 psi) and temperature (70-320 F / 20-160 C) indication on a single 3-inch dial
  • Brass wetted parts, Bourdon tube pressure element, bi-metallic coil temperature element, 1/2" NPT back threaded connection
  • IP50 enclosure rating, pressure limit 75% of full scale, pressure accuracy +/-3-2-3% and temperature accuracy +/-3% of full scale

Product Highlights

3-inch back-mount tridicator for boiler hot water and steam applications; brass wetted parts; IP50.

Product Information

Standard Information

  • Brand: WINTERS INSTRUMENTS
  • Manufacturer Part Number: TTD408
  • Country of Origin: China
Technical Specifications
Brand
Winters Instruments
MPN
TTD408
Product Type
Tridicator (combined pressure and temperature gauge)
Dial Size
3 inch (75 mm)
Dial Material/Finish
Aluminum, painted white
Case Material/Finish
Steel, painted black
Lens
Glass (3 inch)
Ring
Chrome (3 inch)
Pressure Range
0-100 psi
Temperature Range
70-320 F (20-160 C)
Connection Size
1/2" NPT
Connection Type
Threaded
Mount
Back (back-mount)

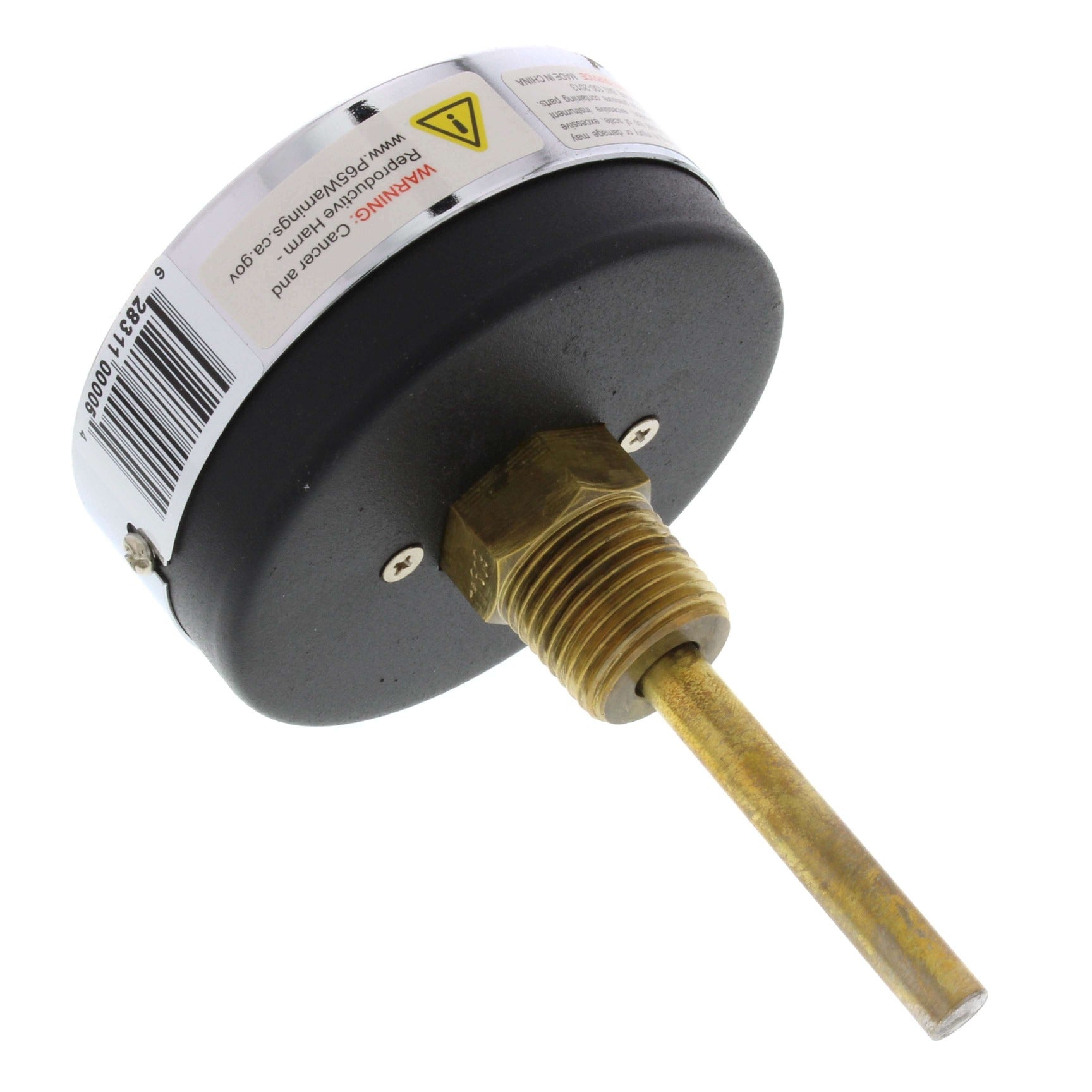

Stem
Brass (2 inch)
Socket
Brass
Tube
Brass
Movement
Brass and phosphor bronze
Sensing Element - Temperature
Bi-metallic coil
Sensing Element - Pressure
Bourdon tube
Pointer
Aluminum, anodized black
Wetted Parts
Brass
Pressure Limit
75% of full scale range
Ambient Temperature Range
23 to 122 F (5 to 50 C)
Process Temperature Limit
75% of full scale range
Accuracy - Pressure
+/-3-2-3%
Accuracy - Temperature
+/-3% of full scale
Enclosure Rating
IP50
Standards
ASME boiler code section IV (compliant ranges)
Dimensions (original)
5.35 x 3.50 x 3.45 inches
