Winters Instruments TTD403 3 TTD Bottom Mount Dual Scale Tridicator 0-75 PSI and 70F-320F

Product Description

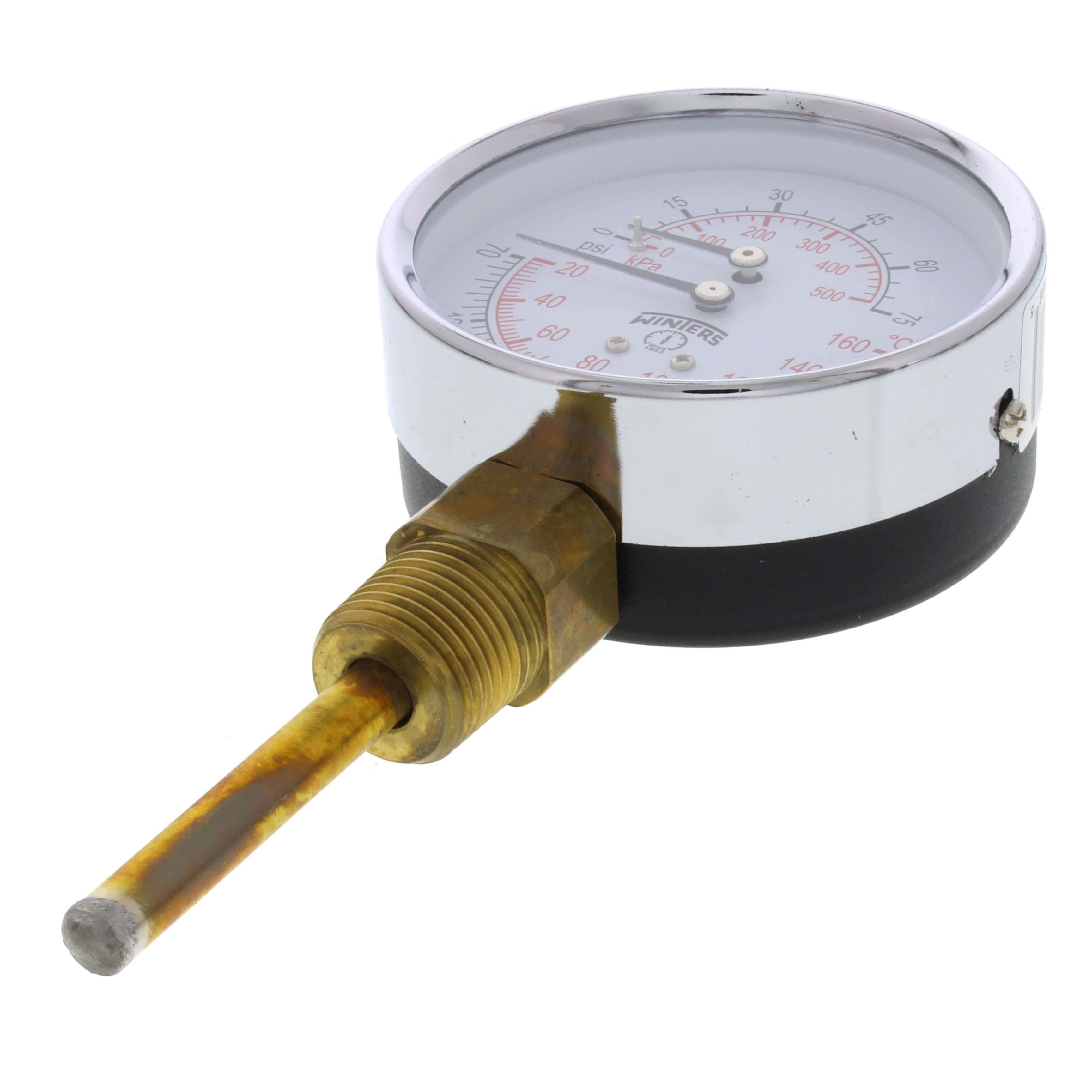

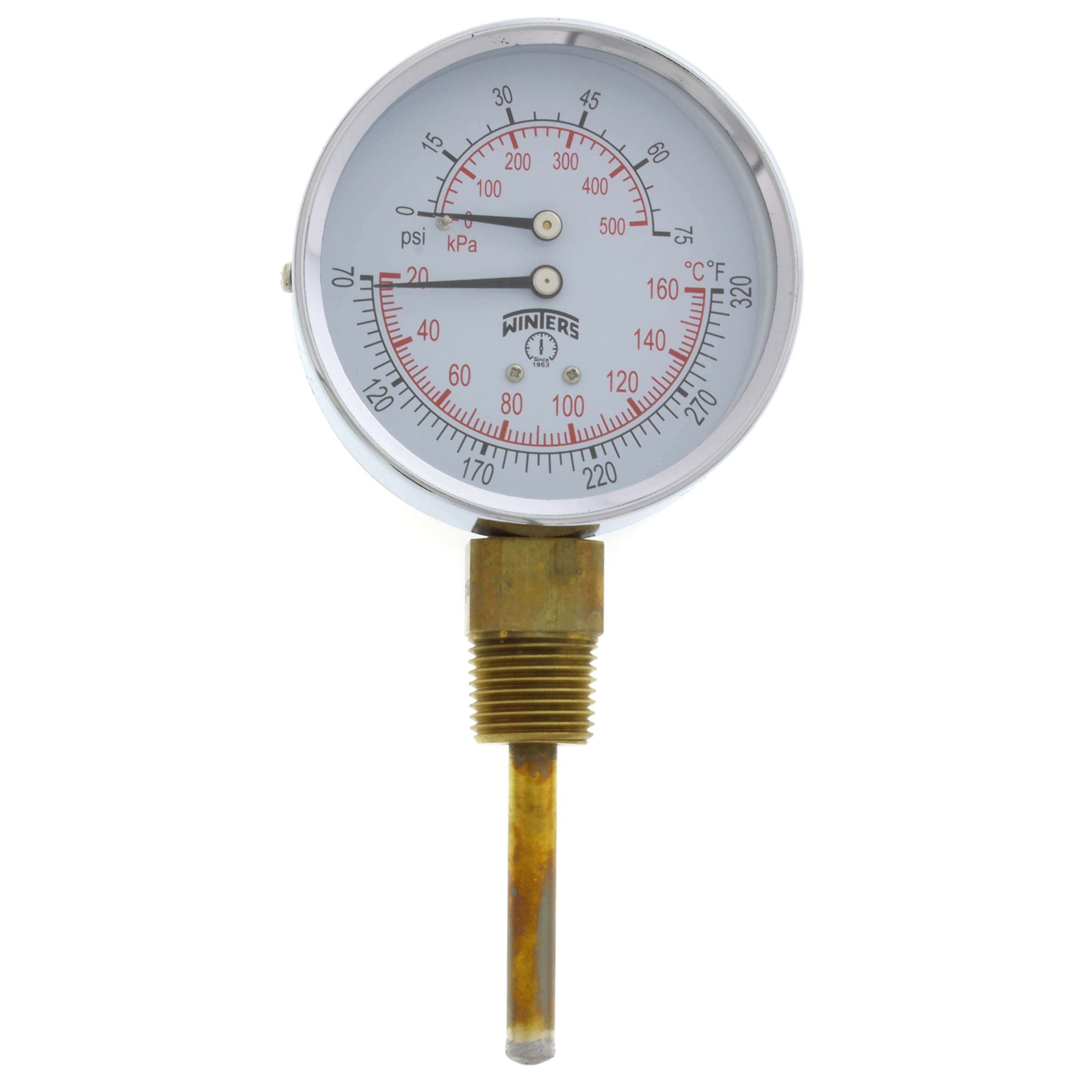

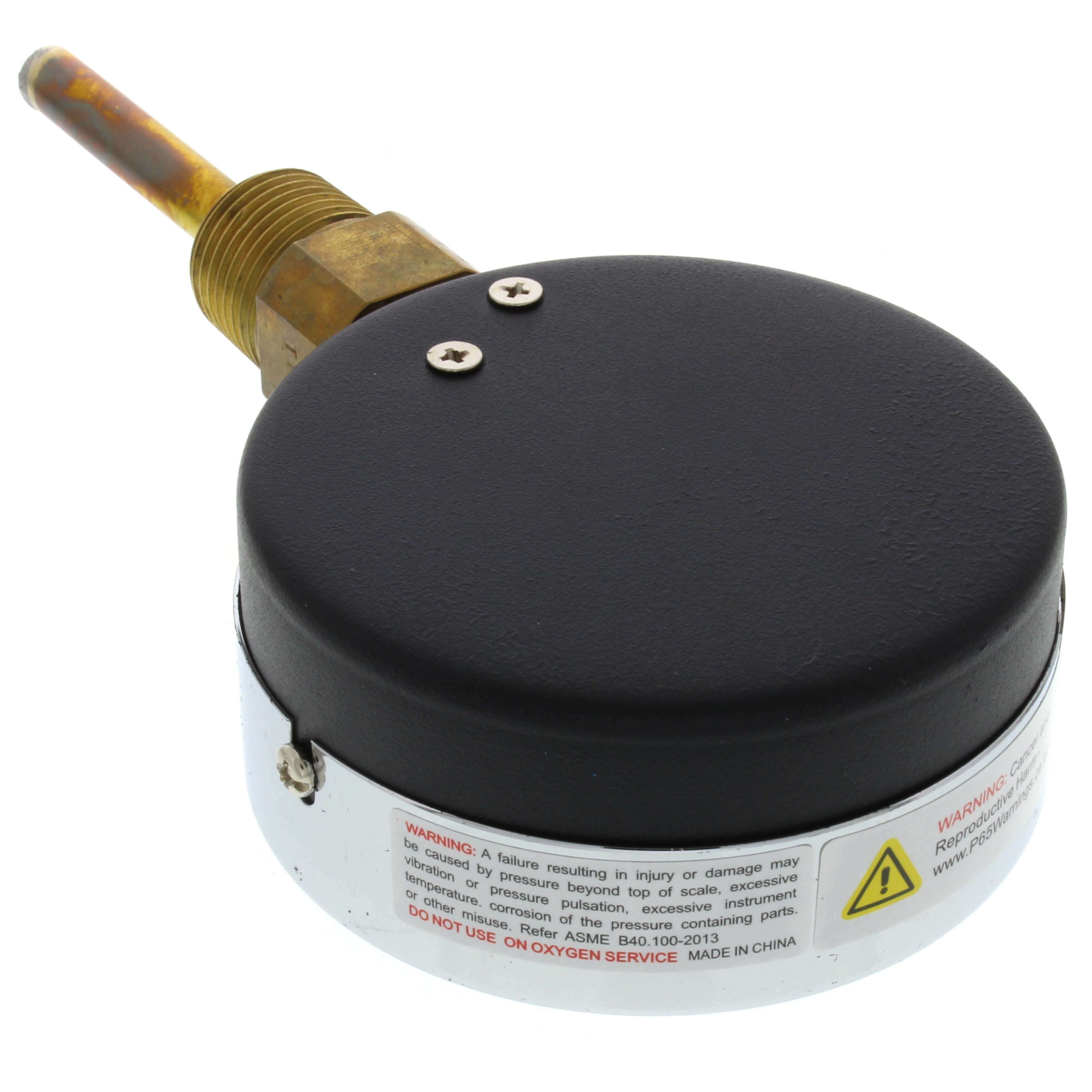

The Winters Instruments TTD403 is a dual scale tridicator designed to measure both pressure and temperature. This model features a three-inch dial, providing readings in both Fahrenheit and Celsius. Its bottom connection is suitable for various installations. The brass wetted parts enhance reliability and durability in demanding conditions.

• Measures both pressure and temperature on a single dial
• Durable brass wetted parts for longevity
• Complies with various pressure and temperature ranges

Product Highlights

This tridicator is ideal for monitoring hot water and steam pressure in boiler applications.

Product Information

Standard Information

• Brand: Winters Instruments
• Type: Tridicator

Technical Specifications

• Dial Size: 3 inches
• Ambient Temperature: 23°F to 122°F (5°C to 50°C)
• Max Pressure: 75 PSI
• Temperature Range: 70°F to 320°F
• Connection Type: Threaded
• Enclosure Rating: IP50
• Movement: Brass and phosphor bronze
• Warranty: 5 years
