Winters Instruments TTD401 2.5 Tridicator with Extension Back Temperature and Pressure Gauge 0-75 PSI

Product Description

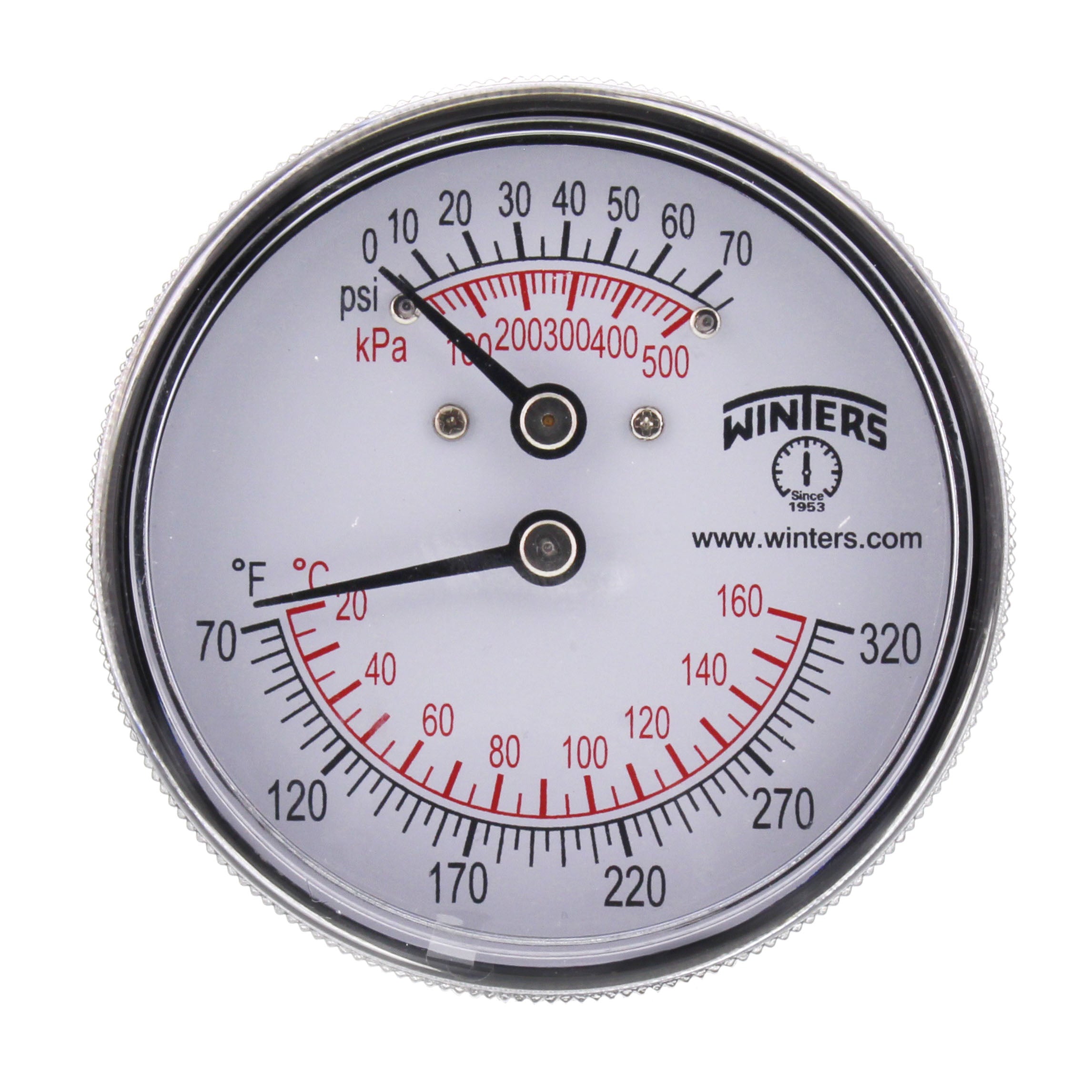

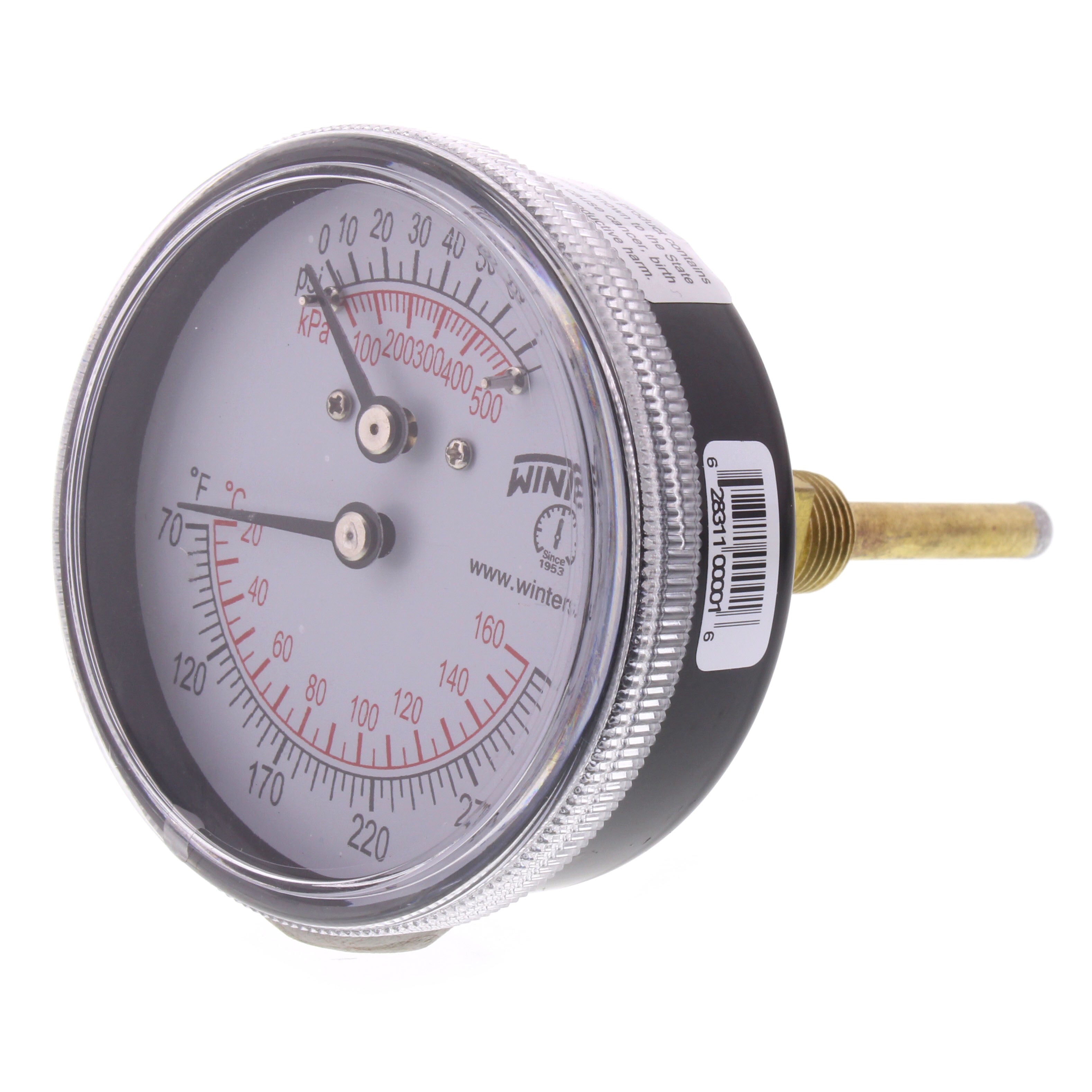

The Winters Instruments TTD401 is a 2.5 inches Tridicator designed to measure both temperature and pressure on a single dial display. It features a dual scale for easy reading, allowing for measurement in both Fahrenheit and Celsius. The gauge comes with a back connection and is made with brass wetted parts to enhance reliability. With multiple temperature and pressure ranges available, the TTD401 meets industry standards set by the ASME Boiler Code.

• Measures both temperature and pressure simultaneously

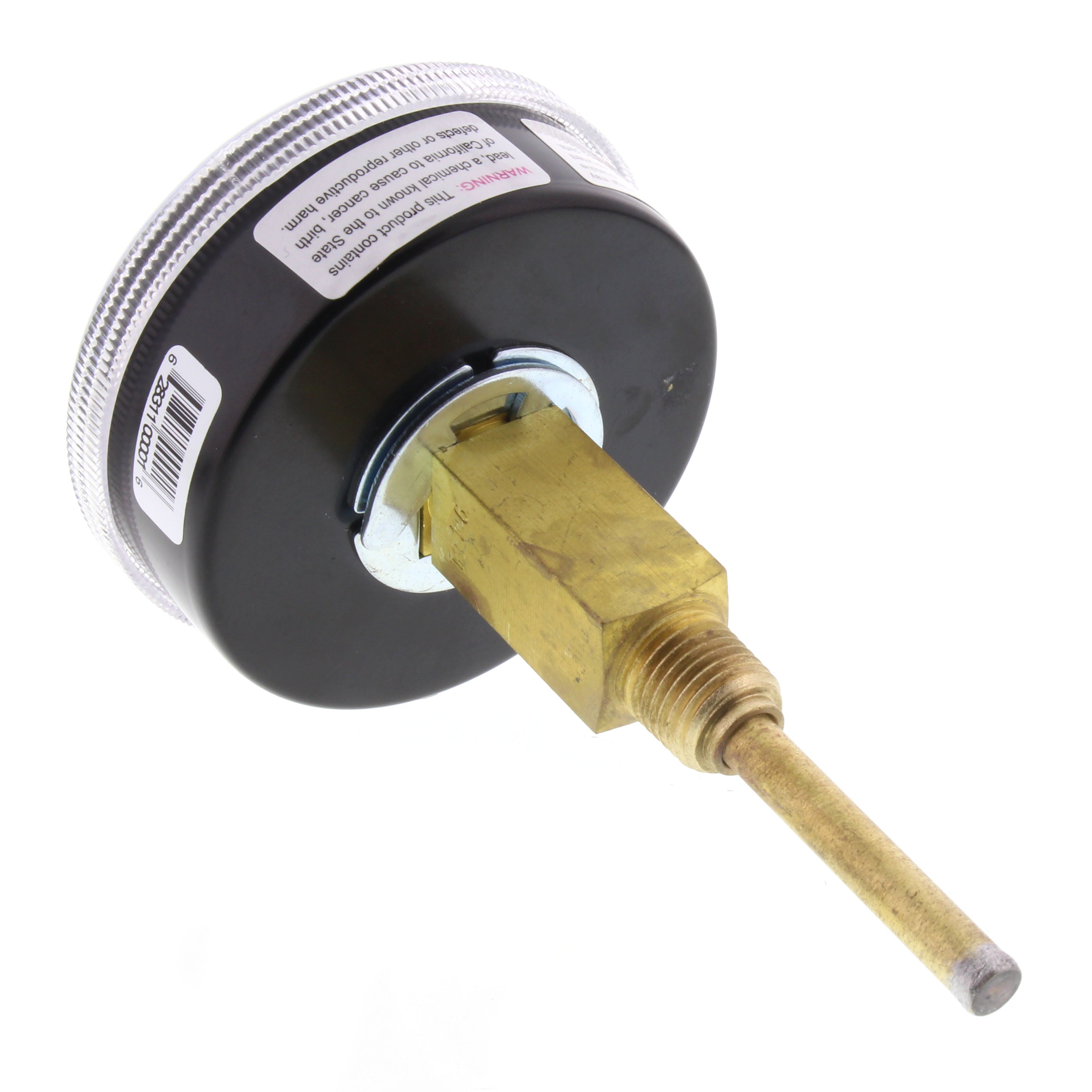

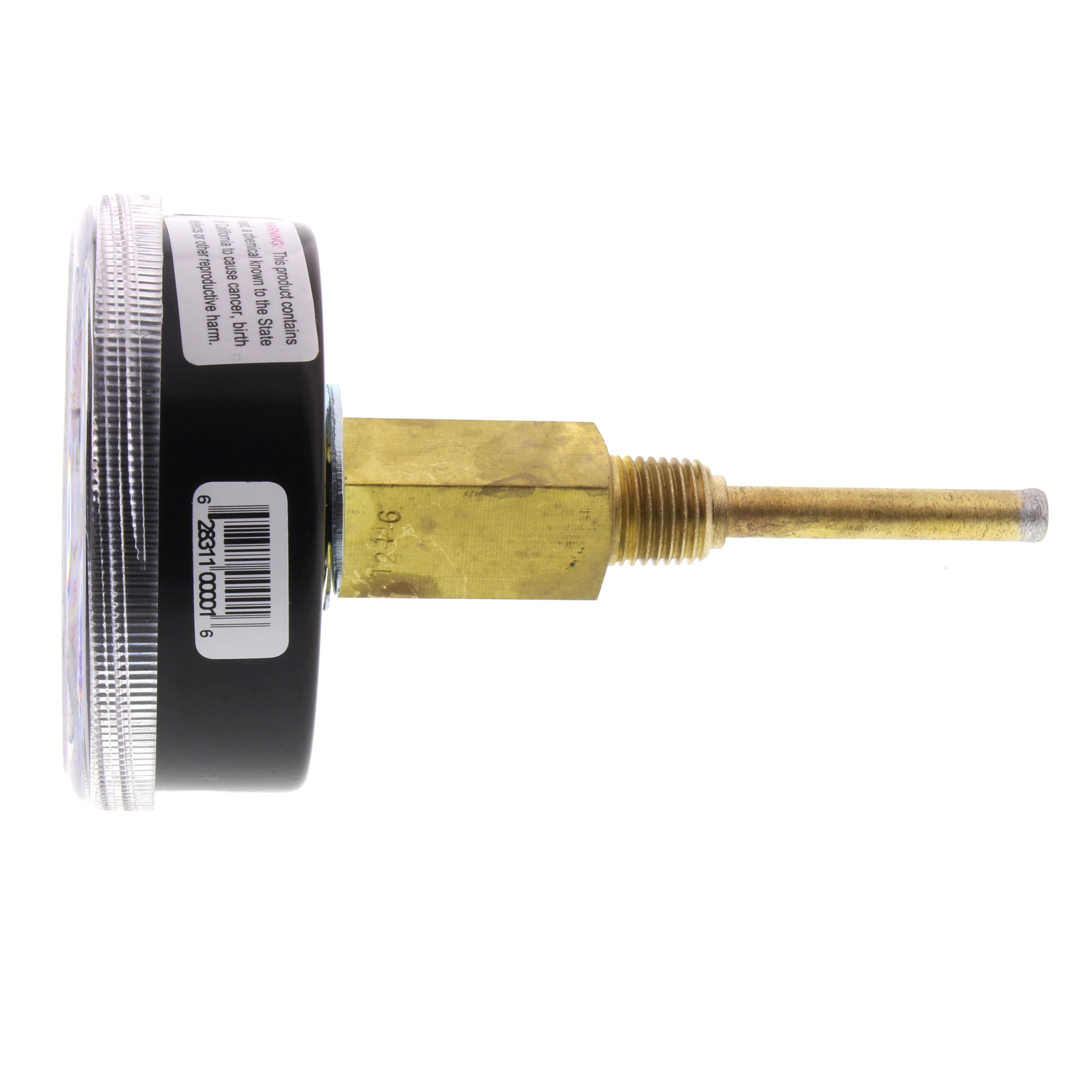

• Back connection with brass wetted parts
• 5 year warranty for assurance

Product Highlights

This gauge is ideal for monitoring hot water and steam pressure in boiler systems, ensuring safety and efficiency.

Product Information

Standard Information

• Brand: Winters Instruments
• Category: Temperature & Pressure Gauges

Technical Specifications

• Dial Size: 2.5 inches
• Accuracy: ±3% of Full Scale (Temperature), ±3-2-3% (Pressure)
• Pressure Range: 0 to 75 psi
• Temperature Range: 70°F - 320°F
• Connection Size: 1/4 inches
• Weight: 0.5 lbs
• Max Temperature: 160°C / 320°F
• Min Temperature: 20°C / 70°F
