Winters Instruments TST050 TST Series Tridicator Service Thermowell 1/2 inches NPT

Product Description

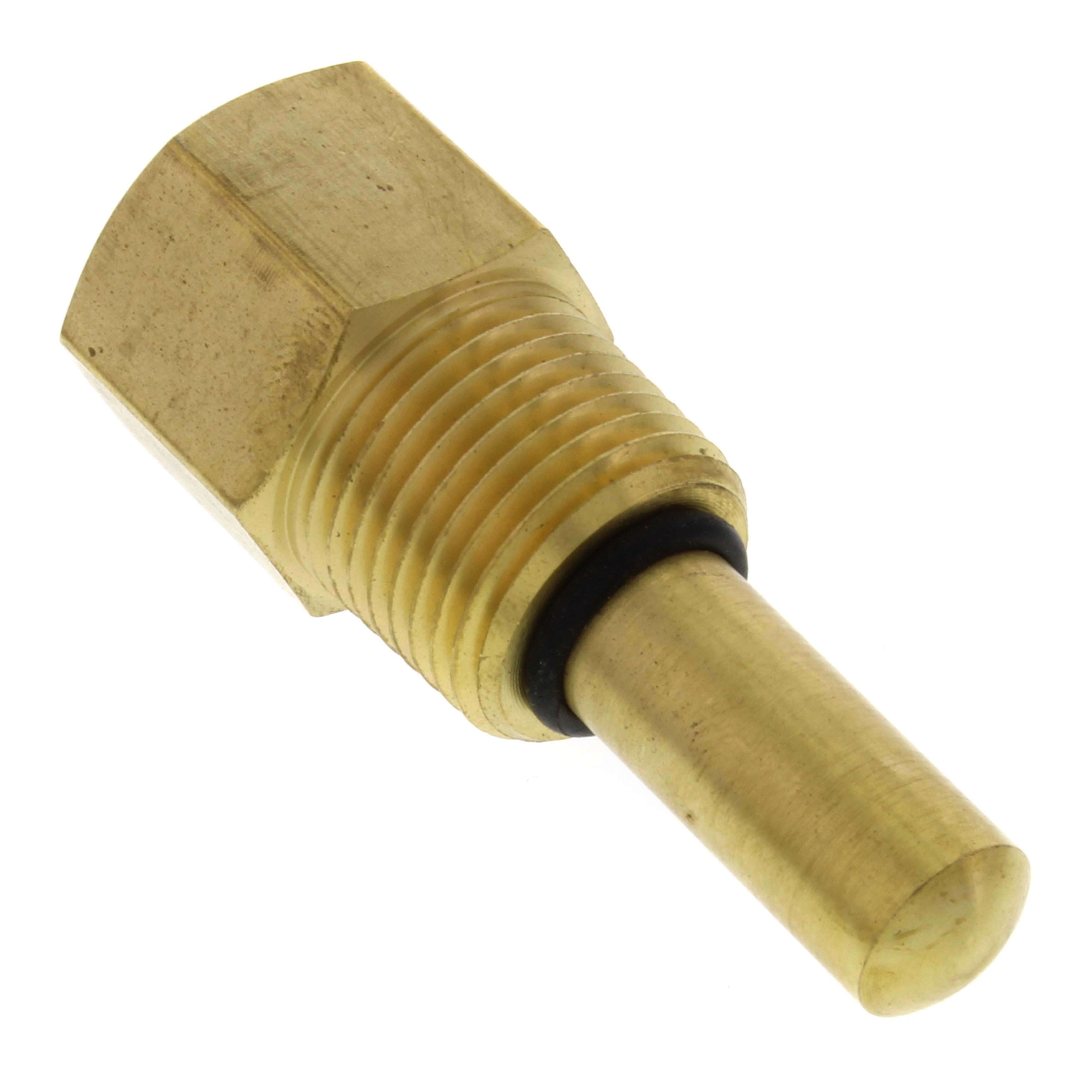

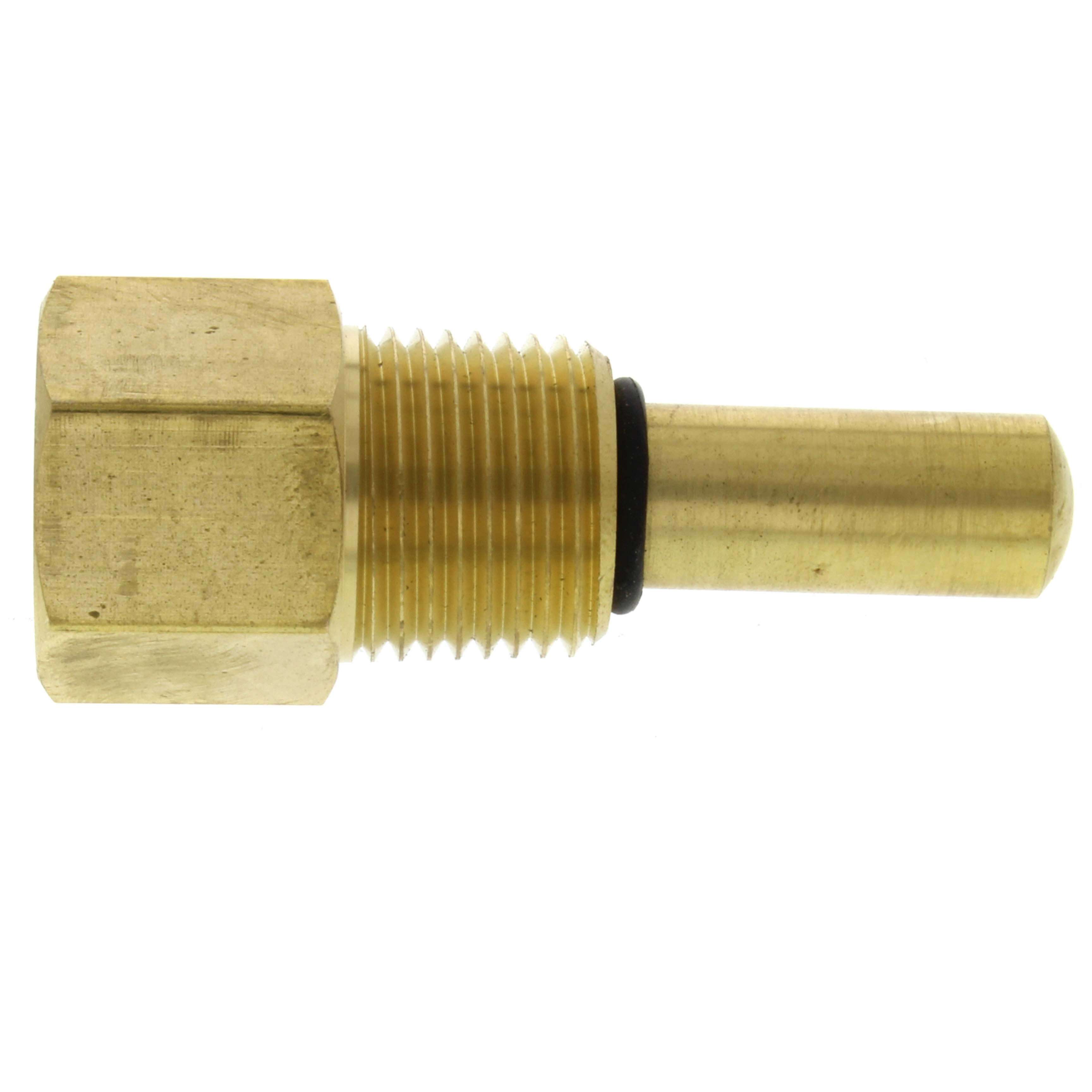

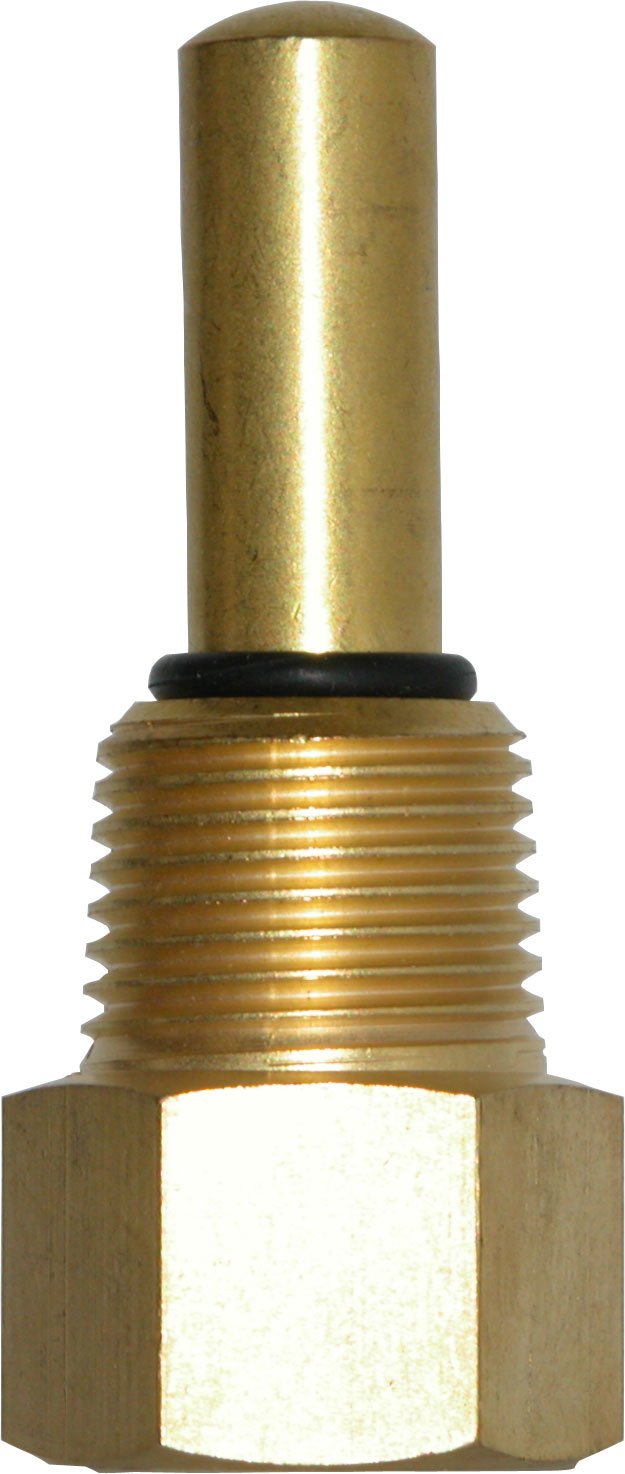

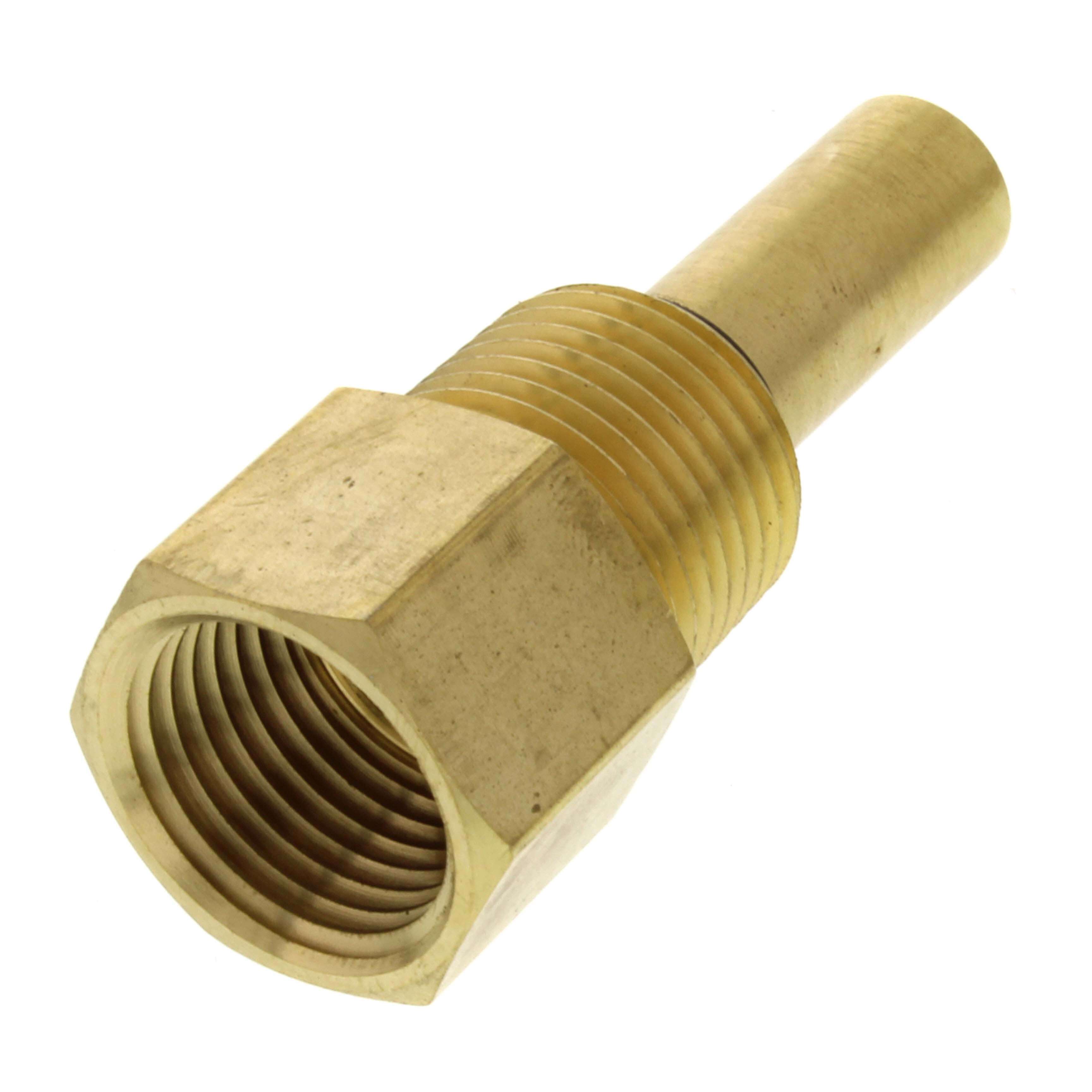

The Winters Instruments TST050 TST Series Tridicator Service Thermowell features a 1/2" NPT connection. This brass thermowell is spring loaded, allowing the TST to stay open when a tridicator is installed. Once the tridicator is removed, the thermowell closes, preventing media from exiting the system. It is designed for use in boilers and hydronic heating systems.

• Spring loaded design maintains open position when tridicator is installed.
• Closes upon tridicator removal to prevent media from exiting the system.
• Minimizes system downtime with quick instrument replacement.

Product Highlights

The TST050 thermowell minimizes downtime and is suitable for boilers and hydronic heating systems.

Product Information

Standard Information

• Brand: WINTERS INSTRUMENTS
• Manufacturer Part Number: TST050

Technical Specifications

• Brand: Winters Instruments
• MPN: TST050
• Item Model Number: TST050
• Size [Features]: 1/2"
• Type [Features]: Replacement Part
• Material [Features]: Brass
• Stem Length: 2.65" (67.3mm)
• Maximum Extension (X): 1.6" (41.5mm)
• Instrument & Pipe NPT Connection: 1/2"
• Material: Brass
