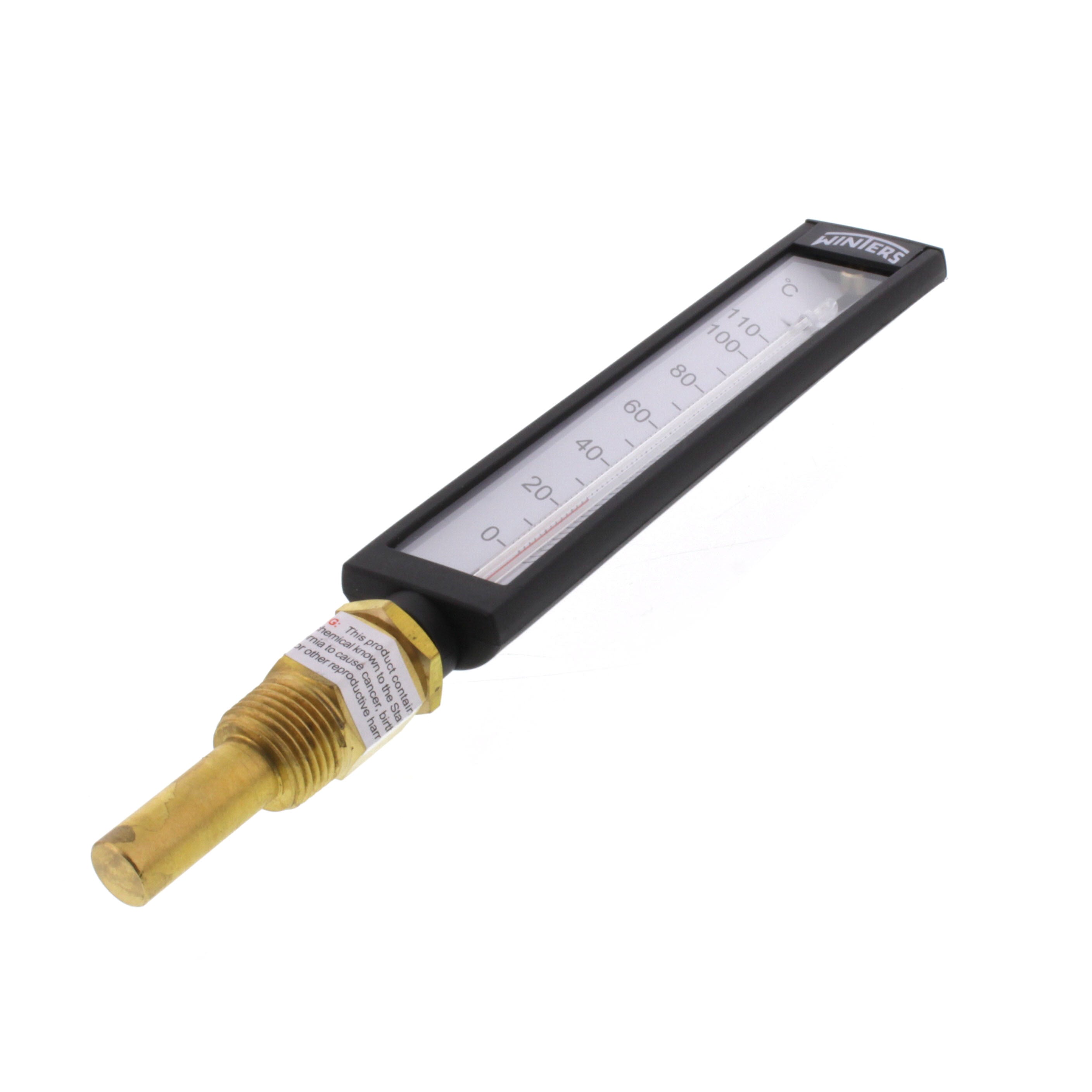

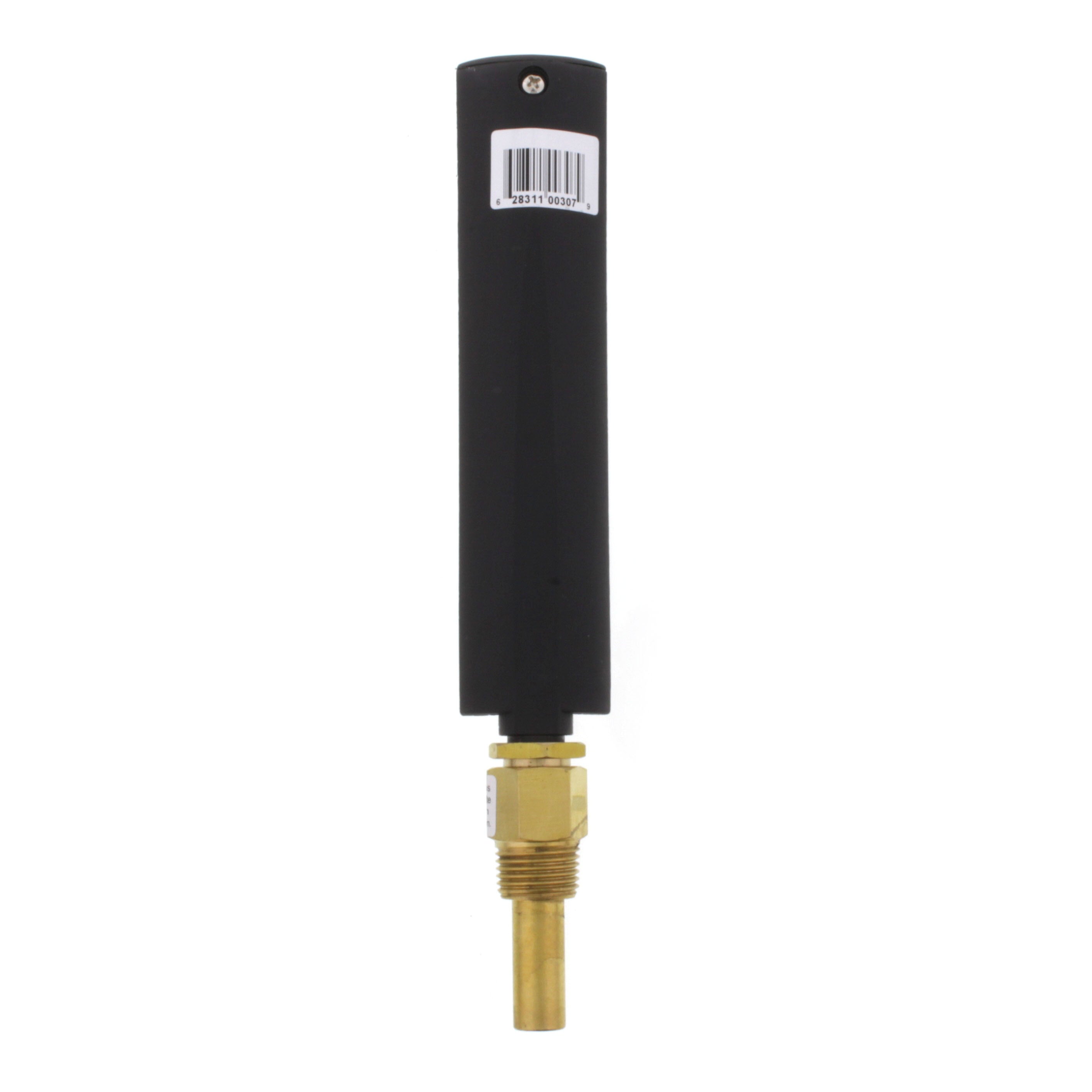

Winters Instruments TAS132 5 inches str therm 30-240F

Product Description

The WINTERS INSTRUMENTS TAS132 is a 5" straight thermometer with a temperature range of 30-240F. It features a vertical sensing tube and case, along with a separable brass, lead-free brass, or stainless steel thermowell. Designed for use in hot water lines, boilers, and HVAC systems, this thermometer offers reliable temperature measurement.

• Equipped with a red liquid-in glass tube for clear readings.
• Features a bottom-mounted connection with a 1/2" NPT process connection.
• Offers a dual scale displaying both Fahrenheit and Celsius.

Product Highlights

This thermometer is ideal for various applications, including hot water lines, boilers, and HVAC systems, providing accurate temperature readings with its durable construction and clear display.

Product Information

Standard Information

• Brand: WINTERS INSTRUMENTS
• Manufacturer Part Number: TAS132

Technical Specifications

• Case: 5" (125mm) Black ABS
• Lens: Glass
• Tube: Glass, cushioned
• Liquid Filling: Kerosene, tinted red
• Stem: Brass
• Swivel Nut: Brass
• Thermowell: Brass 1/2" NPT standard, TAS-LF: TAS: Lead free brass 1/2" NPT standard
• Operating Pressure: Maximum 710 psi (50 kg/cm2)
• Ambient Temperature: -40°F to 122°F (-40°C to 50°C)
• Process Temperature: -40°F to 400°F (-40°C to 200°C)
• Accuracy: ±2% of full scale
• Enclosure Rating: IP50
• Connection Size: 1/2"
• Connection Type: Threaded
• Maximum Temperature (C): 115°C
• Maximum Temperature (F): 240°F
• Minimum Temperature (C): 0°C
• Minimum Temperature (F): 30°F
