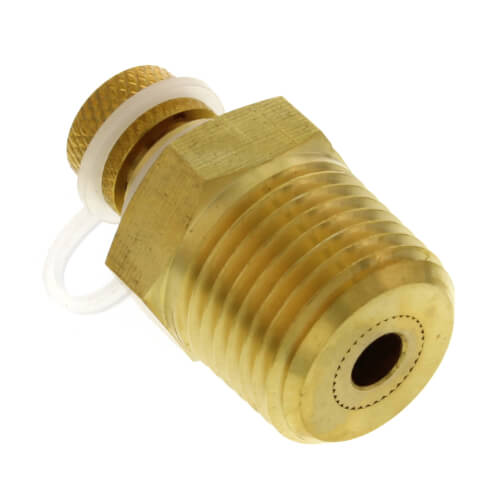

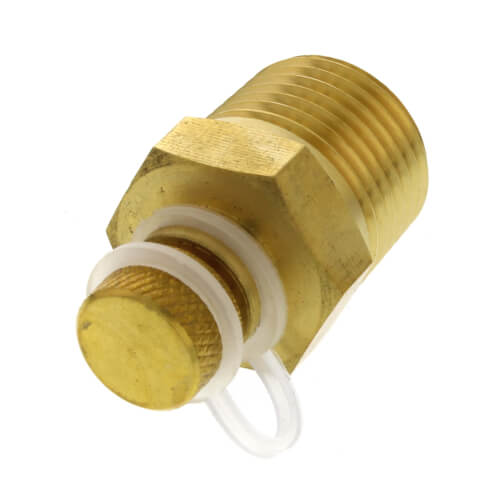

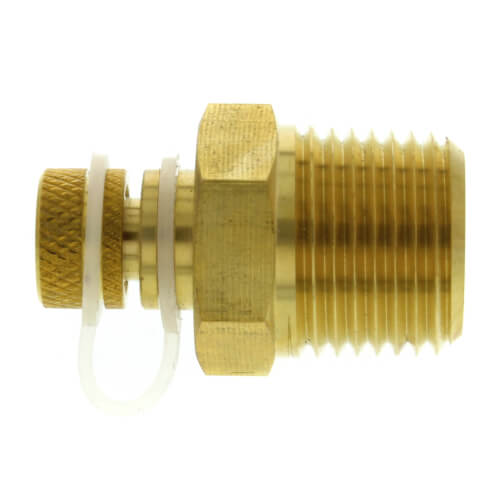

Winters Instruments STP002 1/2 NPT STP Brass Test Plug -40F to 302F

Product Description

The Winters Instruments STP002 is a brass test plug designed for accurate pressure and temperature measurement from -40 degrees Fahrenheit to 302 degrees Fahrenheit. It features a connection size of one-half inch NPT and is suitable for various applications in heating, ventilation, and air conditioning. This test plug facilitates quick access for readings, making it ideal for HVAC professionals.

• Compatible with both brass and lead-free brass wetted parts.
• Includes gauge adapters with protective aluminum sleeves.
• Backed by a one-year warranty for reliability.

Product Highlights

This test plug is primarily used in industries requiring quick measurements, offering a durable construction and easy integration into existing systems.

Product Information

Standard Information

• Material: Brass
• Warranty: One year

Technical Specifications

• Temperature Rating: -40F to 302F (-40C to 150C)
• Maximum Pressure Rating: 1,000 psi (6895 kPa)
• Connection Type: 1/2 NPT
• Diaphragm/Core: NBR (Buna N)
• Do not use for: Potable water applications
