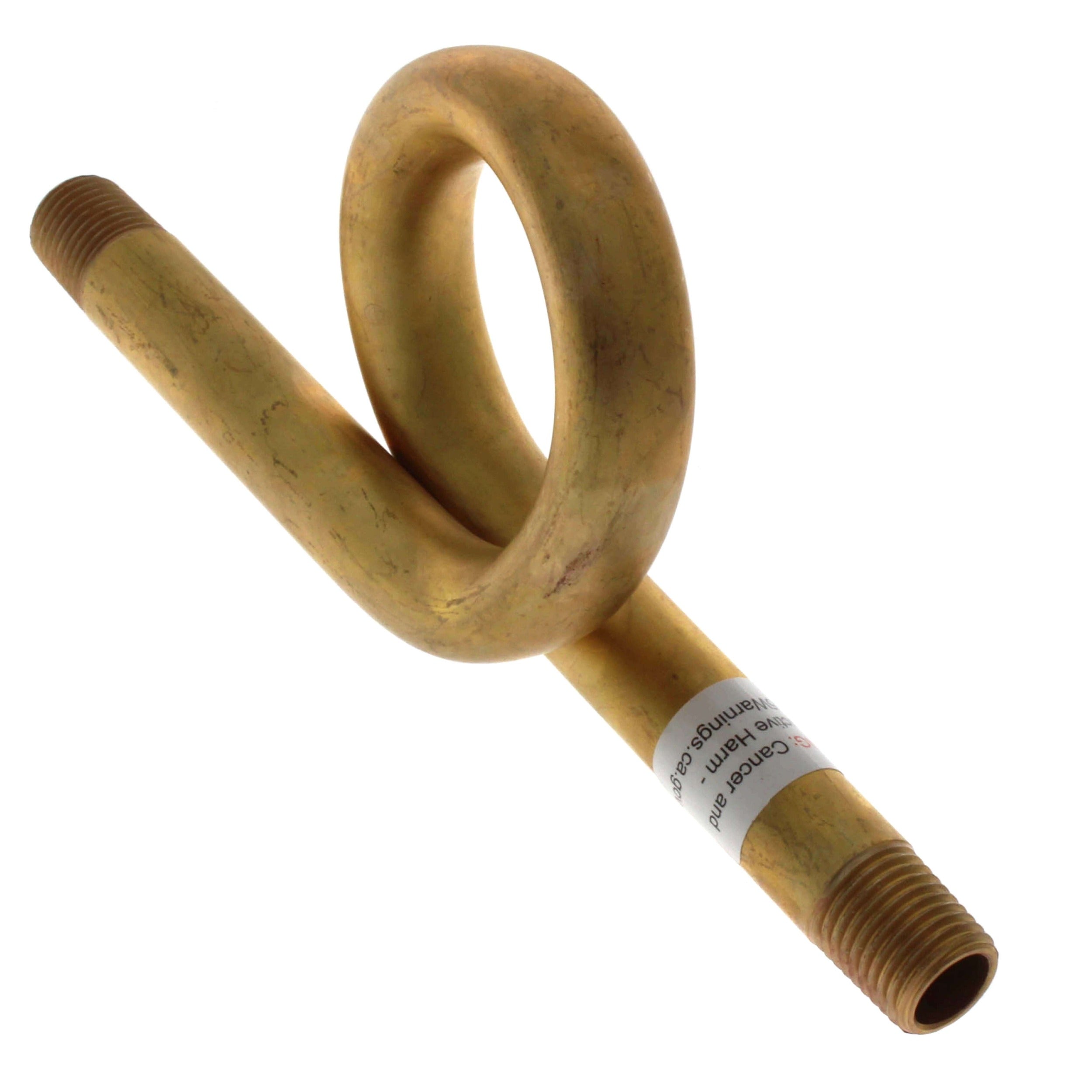

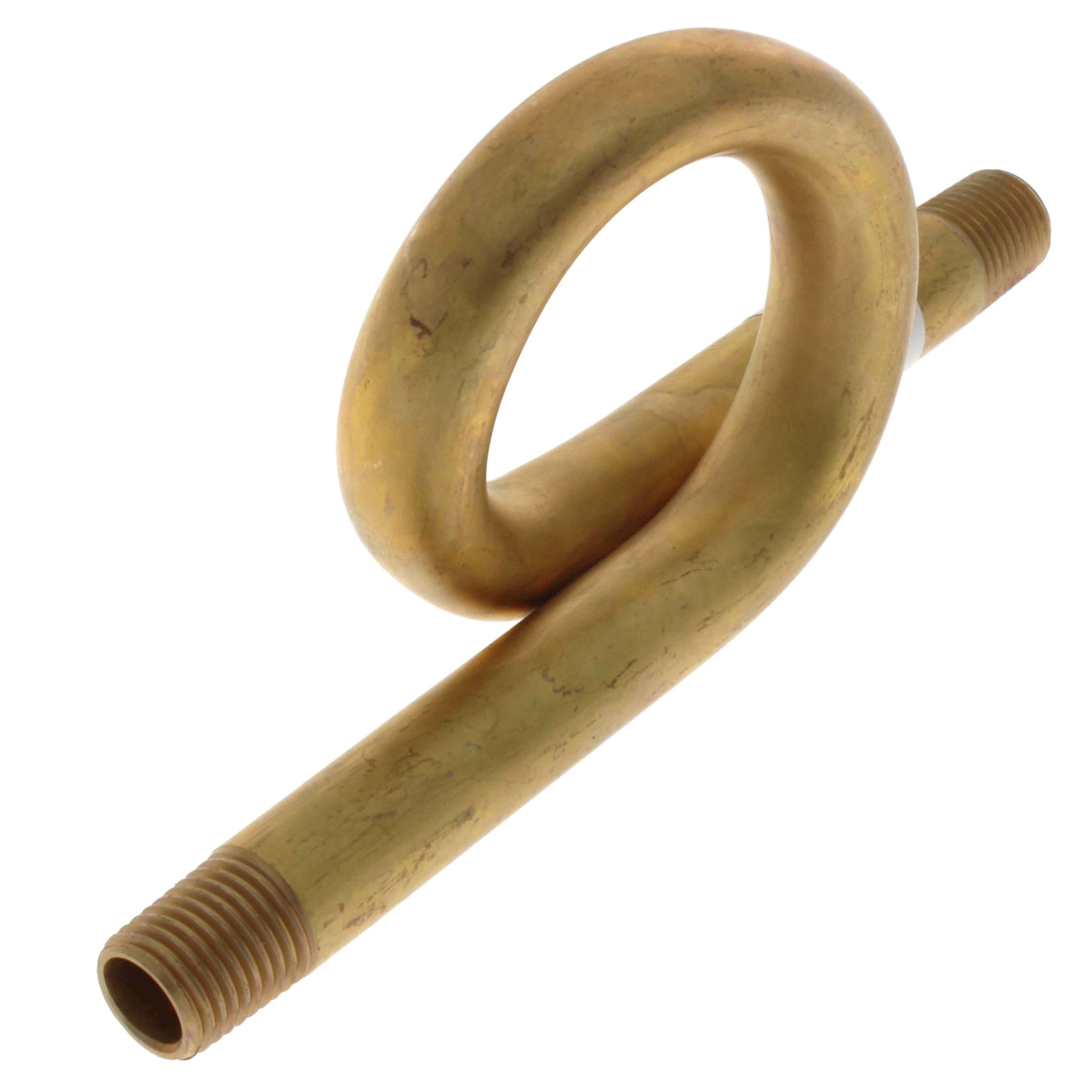

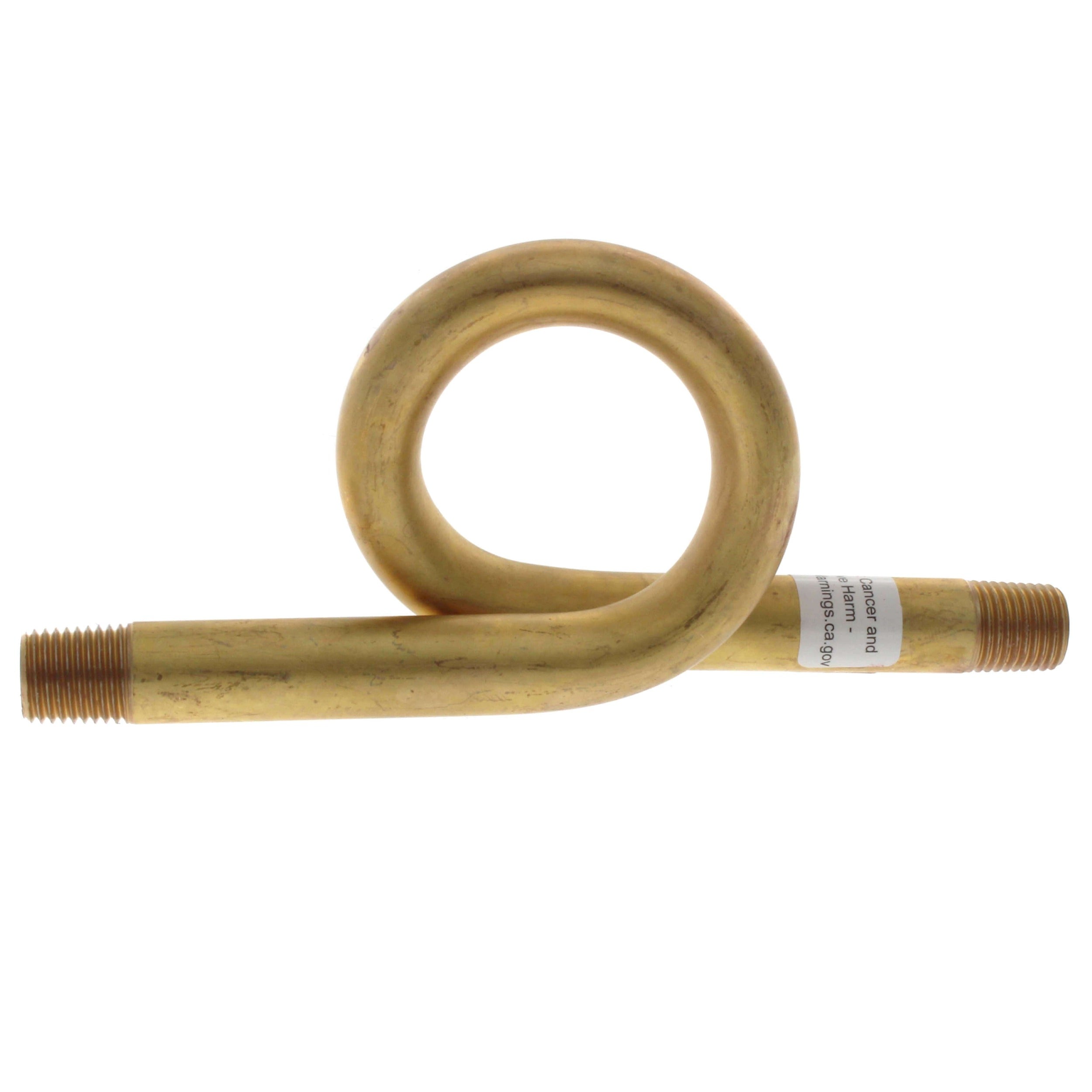

Winters Instruments SSP545 Siphon 1/4 in NPT (180 Degree Coil)

Product Description

Winters Instruments SSP545 is a 1/4 in NPT schedule 40 brass siphon designed for steam service to prevent hot steam from entering pressure gauges, diaphragm seals, or transmitters. The 180 degree coil siphon forms a condensate loop for gauge protection and is recommended for applications above 100°F (37°C). Schedule 40 brass construction is rated for operating pressures up to 500 psi at elevated temperatures.

• Prevents hot steam from reaching pressure gauges, diaphragm seals, and transmitters on steam service
• Schedule 40 brass construction in a 180 degree coil style; available connection options include 1/4 in NPT male x 1/4 in NPT male or 1/2 in NPT male x 1/2 in NPT male
• Rated for schedule 40 seamless brass up to 500 psi at 680°F (360°C); recommended for applications above 100°F (37°C); CRN registered

Product Highlights

Schedule 40 brass 180 degree coil siphon for steam gauge protection; 1/4 in NPT connections; rated up to 500 psi at high temperature; not for potable water

Product Information

Standard Information

• Brand: WINTERS INSTRUMENTS
• Manufacturer Part Number: SSP545
