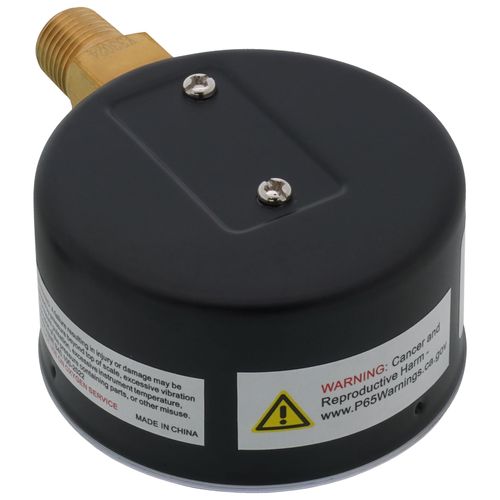

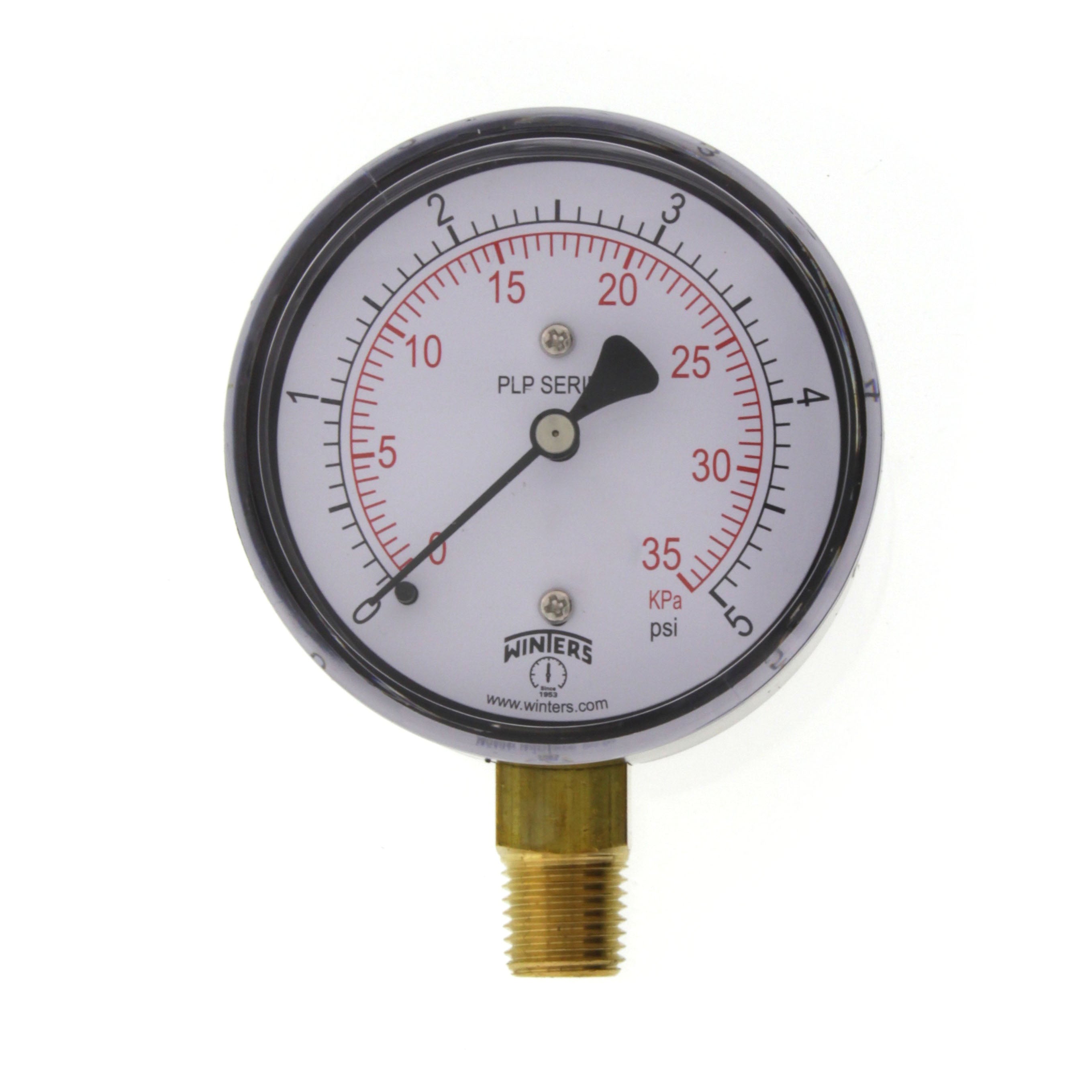

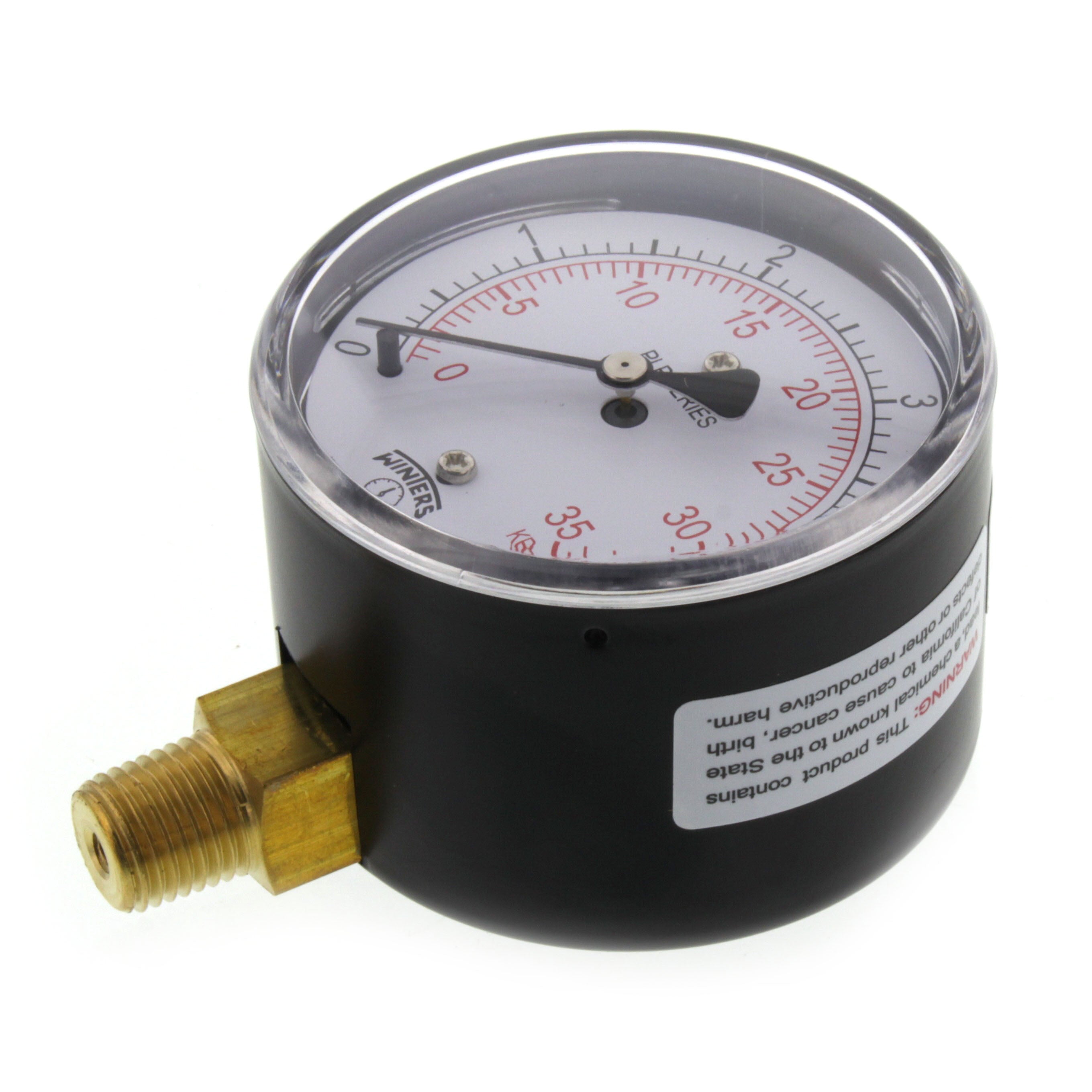

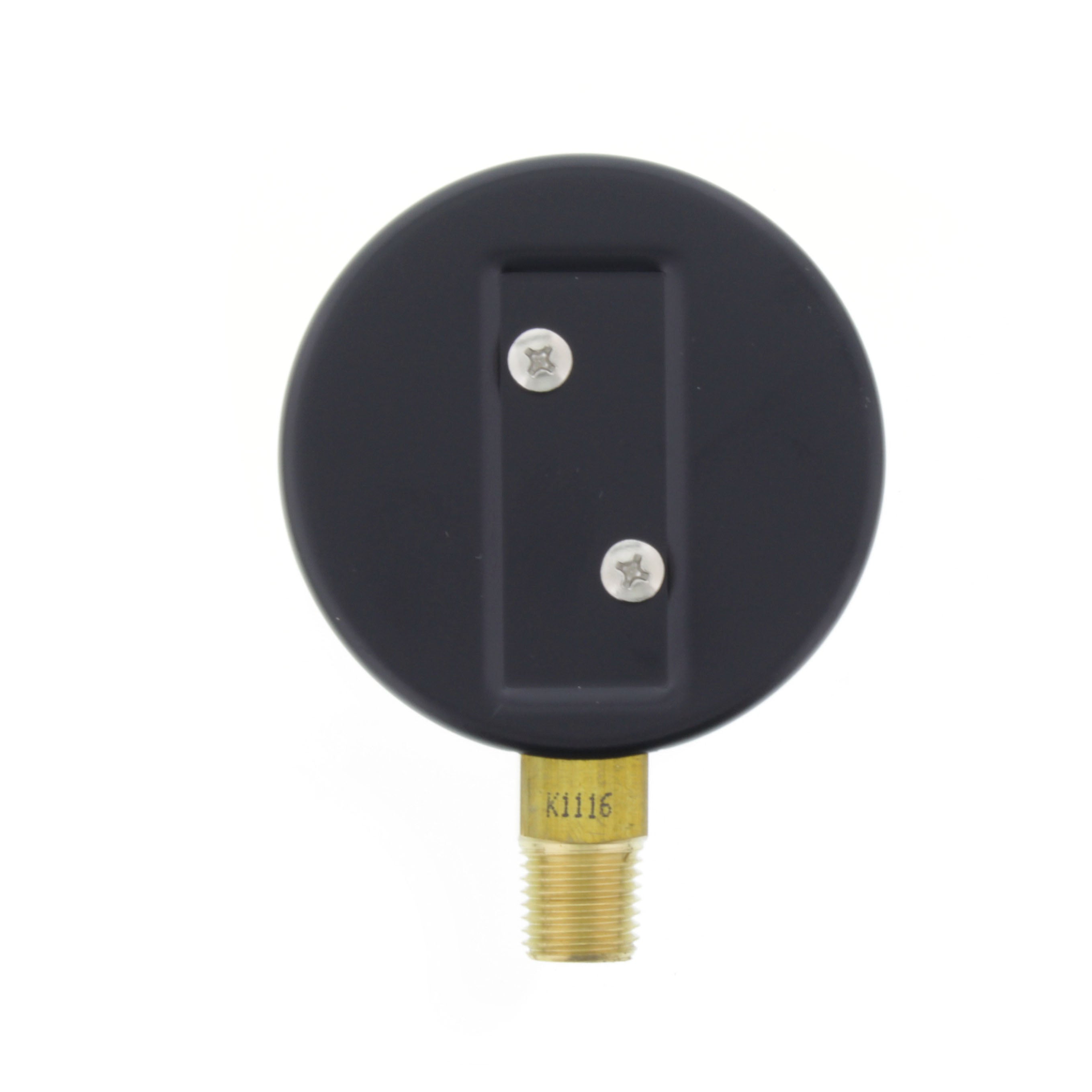

Winters Instruments PLP305 Low Pressure Gauge 0/5 PSI/KPA

Product Description

The WINTERS INSTRUMENTS PLP305 is a low pressure gauge designed for accurate readings. Suitable for measuring gaseous media, both corrosive and non-corrosive. It is used to measure natural gas pressure as well as air flow indication and leak detection. Applications include vacuum pumps, air compressors and gas burners.

• Highly Accurate Reading of Low Pressures
• Suitable for Measuring Gaseous Media Both Corrosive and Non-Corrosive
• Used to Measure Natural Gas Pressure as Well Air Flow Indication and Leak Detection

Product Highlights

The PLP305 gauge features a 2.5 inch dial, 1/4 inch threaded bottom connection, and a temperature rating of -40 to 150 Deg F.

Product Information

Standard Information

• Brand: WINTERS INSTRUMENTS
• Manufacturer Part Number: PLP305
• Country of Origin: Taiwan (subject to change)

Technical Specifications

• Accuracy: +/- 3 Percent
• Application: Vacuum Pumps, Air Compressors, Air Filters, Gas Burners, Vacuum Ovens, Suction Regulators and Respirator
• Category: Test Instruments
• Connection Location: Bottom
• Dial Color: Black and Red Marking on White Face
• Dial Diameter: 2.5 Inch
• Dial Material: Aluminum
• Display Type: Dial
• Enclosure: IP52
• Enclosure Material: Painted Black Steel
• End Connection: 1/4 Inch Threaded
• Features/Benefits: Highly Accurate Reading of Low Pressures; Suitable for Measuring Gaseous Media Both Corrosive and Non-Corrosive; Used to Measure Natural Gas Pressure as Well Air Flow Indication and Leak Detection
• Full Scale Accuracy: +/- 3 Percent
• Manufacturer Name: Winters Instruments
• Maximum Pressure: 5 PSI
• Mid Scale Accuracy: +/- 2 Percent
• Minimum Pressure: 0 PSI
• Pointer Color: Anodized Black
• Pointer Material: Aluminum
• Sensor Element: Phosphor Bronze Diaphragm Element
• Series: PLP
• Temperature Rating: -40 to 150 Deg F
• UNSPSC Code: 41112412
• Additional Information: Material Polycarbonate (Lens), Brass (Socket/Movement); Maximum Working Pressure 75 Percent PSI (Full Scale), 75 Percent PSI (Fluctuating); Applicable Standard ASME B40.100, CRN
• Manufacturer Part Number: PLP305
• Type [Features]: Dry
• Mount [Features]: Bottom
• Socket [Features]: Brass
• Material [Features]: Steel
• Measures [Features]: Pressure
• Movement [Features]: Brass
• PSI Range [Features]: 0-5
• Application [Features]: Pressure
• Product Type [Features]: Pressure Gauge
• Connection Type [Features]: 1/4" NPT
• Max Pressure (PSI) [Features]: 5
• Process Connection Gender: Male
• Process Connection Size: 1/4
• Process Connection Type: NPT
• Gauge Case Material: Steel
• Lens Material: Polycarbonate
• Nominal Dial Size: 2-1/2 in
• Accuracy Grade: ASME B40.100 Grade B
• Pressure Range Type: Pressure
• Primary Scale Units: psi
• Bezel Mounting Type: No
• Bezel: None
• Case Color: Black
• Case Depth: 1.9 in
• Case Diameter: 2.625 in
• Case Finish: Painted
• Cleaned for Oxygen Service: No
• Dial Face Material: Aluminum
• Dry Dampening Feature: None
• Field Fillable: No
• Freeze Resistant Movement: No
• Gauge Case Liquid: None
• Includes Calibration Certificate: No
• Includes Mounting Hardware: No
• Includes Vent Plug: No
• Liquid-Filled Case: No
• Manufacturer Warranty Length: 5 yr
• Mounting Type: Stem-Mount
• Over-Pressure Limit: 30% of Full Scale
• Panel-Mountable: No
• Scale Type: Dual
• Sensor Material: Phosphor Bronze
• Sensor Type: Diaphragm
• Socket Material: Brass
• Standards: CRN Registered
• Case Material: Steel
• Gauge Accuracy Grade: Grade B - Commercial
• Gauge Application: For Natural Gas & Other Gases
• Gauge Wetted Parts: Brass / Bronze
• Lens Material - Gauge: Plastic
• Pressure Range: 0 psi to 5 psi
• Process Connection: 1/4 in NPT Male
• IP Rating: IP52
• NEMA Enclosure Rating: 5
• Primary Scale Pressure Measurement - Maximum: 5 psi
• Primary Scale Pressure Measurement - Minimum: 0 psi
• Secondary Scale Pressure Measurement - Maximum: 35 kPa
• Secondary Scale Pressure Measurement - Minimum: 0 kPa
• Process Media Temperature - Maximum: 150 °F
• Process Media Temperature - Minimum: -40 °F
• Operating Temperature - Maximum: 150 °F
• Operating Temperature - Minimum: -40 °F
• Wetted Parts Material: Brass Phosphor Bronze
• UNSPSC: 23151820
• Connection: 1/4" Bottom
• Capsule Movement Socket: Brass
• Range: 0/5 psi/kPa
• Pointer: Aluminum, anodized black
• Welding: Solder/brazed
• Working Pressure: 60% of full scale value (fluctuating) 75% of full scale value (static)
• Ambient/Process Temperature: -40 to 150°F (-40 to 65°C)
• Enclosure Rating: IP52
• Accuracy [Features]: ± 3-2-3%
