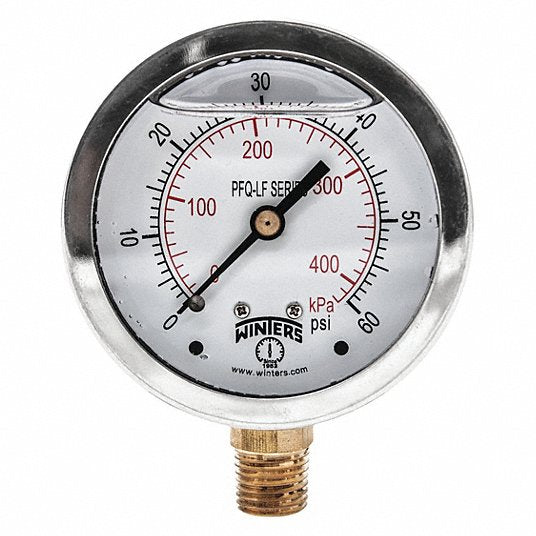

Winters Instruments PFQ803LF 2.5 Stainless Steel Liquid Filled Gauge 0-60 PSI

Product Description

The Winters Instruments PFQ803LF is a 2.5-inch stainless steel liquid-filled gauge designed for measuring pressure in various applications. This gauge is particularly suitable for pumps, compressors, hydraulic presses, and pneumatic equipment operating in harsh environments, especially where vibration and pulsation are present.

• Pulsation resistant with liquid-filled stainless steel case
• Lead-free and NSF-61-372 certified
• ASME B40.100 compliant

Product Highlights

The Winters Instruments PFQ803LF offers a reliable and accurate solution for pressure measurement in demanding conditions. With a pressure range of 0-60 PSI and a brass movement, this gauge features a glycerin-filled standard and a crimp-on bezel for added durability.

Product Information

Standard Information

• Brand: Winters Instruments
• Product Type: Pressure Gauge

Technical Specifications

• Dial Size: 2-1/2 inches
• Socket Material: Brass
• Accuracy: ± 1.5%
• Pressure Range: 0-60 PSI
• Connection Type: 1/4 NPT
• Lead Free: Yes
• Bourdon Tube Material: Phosphor Bronze
• Ambient Operating Temperature: -4°F to 150°F
