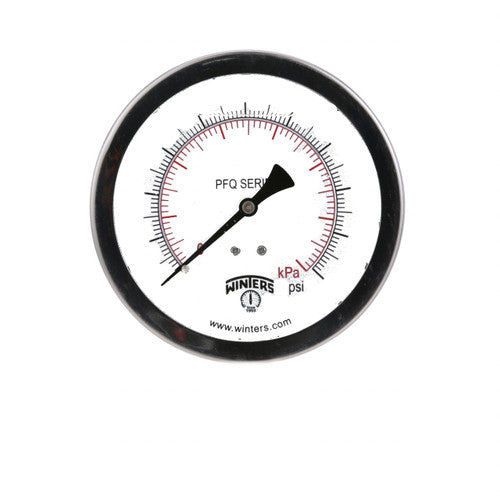

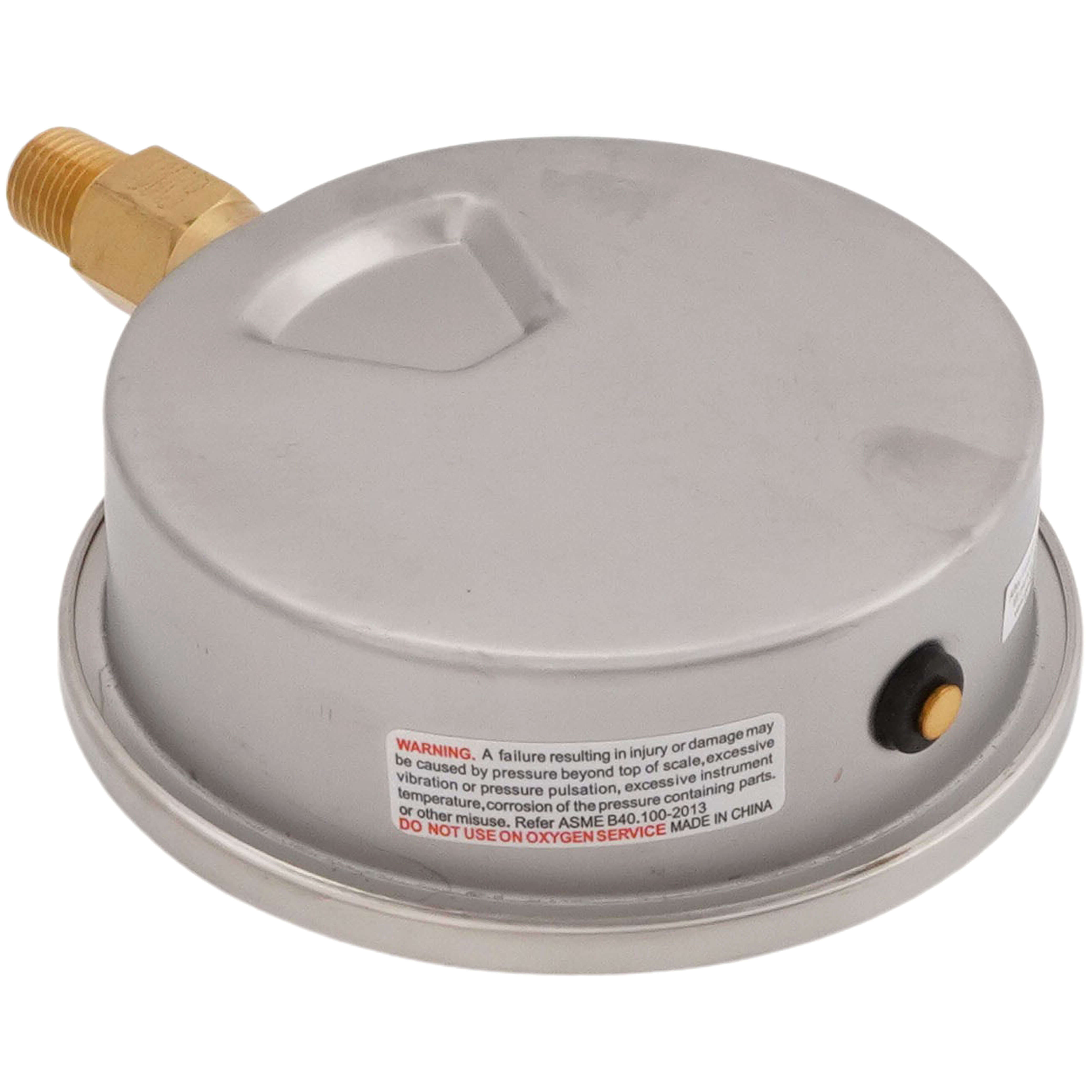

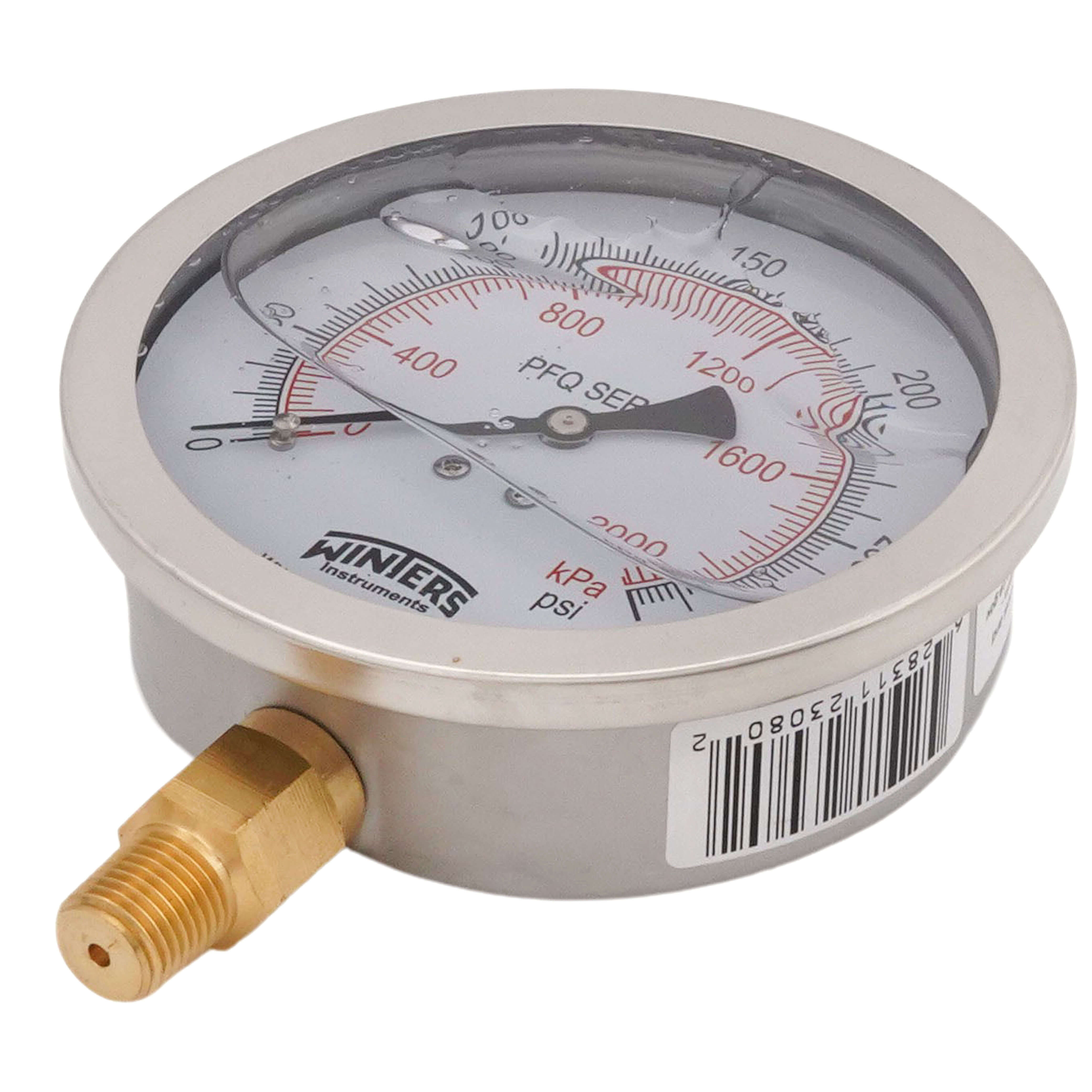

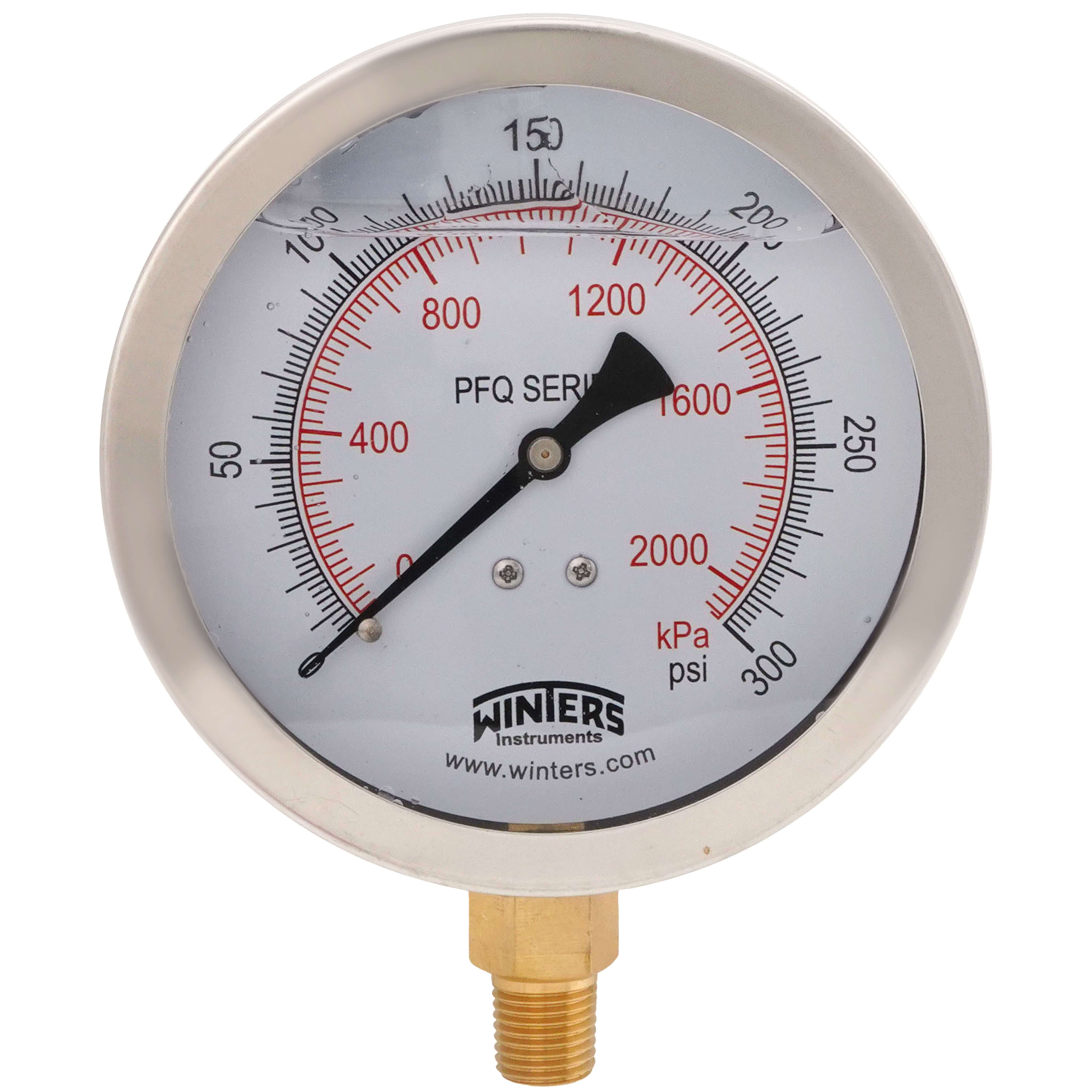

Winters Instruments Pfq714 Pfq Stainless Steel Liquid Filled Gauge 0-300 PSI

Product Description

The WINTERS INSTRUMENTS PFQ714 is a stainless steel liquid filled gauge. Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments. It features pulsation resistance, glycerin filling, and brass and stainless steel internals. Suitable for applications where harmful vibration and pulsation are present.

• Pulsation resistant, liquid filled stainless steel case
• Glycerin filled standard
• Brass and stainless steel internals

Product Highlights

The PFQ714 gauge is designed for use in harsh environments where vibration and pulsation are present.

Product Information

Standard Information

• Brand: WINTERS INSTRUMENTS
• Manufacturer Part Number: PFQ714
• Country of Origin: U.S.

Technical Specifications

• Type: Liquid Filled
• Mount: Bottom
• Socket: AISI 316 SS
• Accuracy: +/-1.5% of full scale value
• Material: Polycarbonate, Stainless Steel
• Measures: Pressure
• Movement: Brass
• Dial Size: 4"
• PSI Range: 0-300
• Application: Pressure
• Bourdon Tube: Phosphor bronze
• Product Type: Pressure Gauge
• Connection Type: 1/4" NPT
• Max Pressure (PSI): 300
• Pressure Range: 0/300 psi/kPa
• Dial: 4" (100mm) white aluminum with black and red markings
• Case: AISI 304 SS
• Lens: Polycarbonate
• Ring: AISI 304 SS, Crimp-On
• Fill Liquid: Glycerin
• Pointer: Aluminum, anodized black
• Welding: Silver alloy
• Over-pressure Limit: 25%
• Socket Gasket: Buna N for two-piece internal socket seal
• Fill Plug: Buna N
• Lens Ring Gasket: Silicone rubber
• Working Pressure: Maximum 75% of full scale value
• Ambient / Process Temperature: Dry: -40degF to 200degF (-40degC to 93degC) Glycerin Filled: -4degF to 150degF (-20degC to 65degC)
• Enclosure Rating: IP65
• Connection: 1/8", 1/4" NPT or 1/2" NPT standard with restricted orifice
• Gasket Material: Silicone rubber for socket; EPDM for lens, filling plug and blow-out vent
