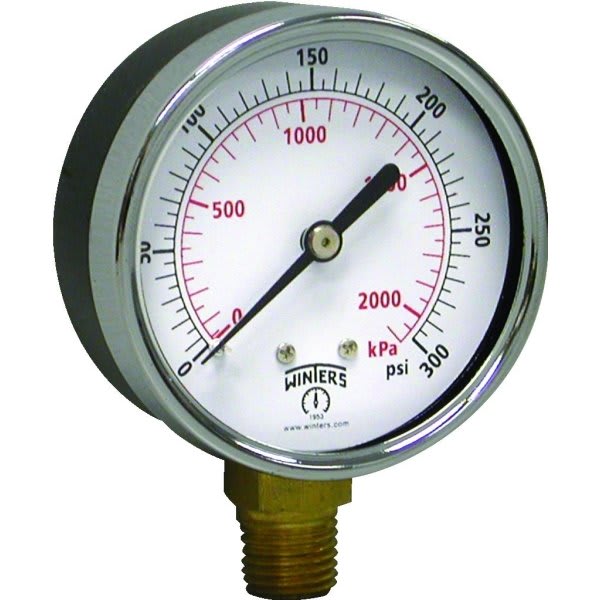

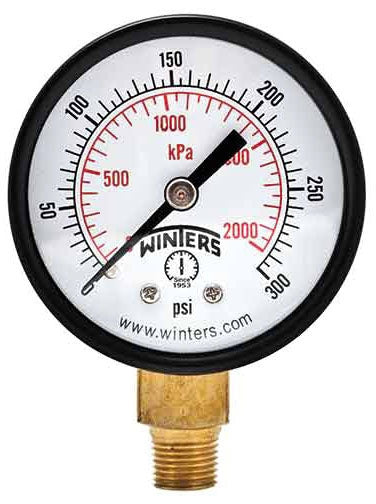

Winters Instruments PEM226 4 inch Dial Pressure Gauge 0-300 PSI 1/4 NPT Bottom

Product Description

The Winters Instruments PEM226 is an economy pressure gauge designed for various applications including plumbing, heating, and air conditioning. This 4-inch dial gauge measures pressure from 0 to 300 PSI/KPA, featuring a Bourdon tube sensor element and a bottom connection. It has an IP52 black steel enclosure and operates within a temperature range of -40 to 150 degrees F. The gauge offers an accuracy of +/-3 percent and is constructed with a glass lens and aluminum dial.

• Most economical, all-purpose pressure gauge
• Features friction bezel rings
• Working pressure maximum 75% of full scale value

Product Highlights

This pressure gauge is lead-free, CRN registered, and meets ASME B40.100 standards, featuring an IP52 enclosure and glass lens for durability.

Product Information

Standard Information

• Brand: WINTERS INSTRUMENTS
• Manufacturer Part Number: PEM226
• Country of Origin: CHINA

Technical Specifications

• Accuracy: +/-3 Percent
• Application: Plumbing, Heating, Air Conditioning, Pneumatic, Hydraulic, Water Tank, Air Compressor, OEM
• Case Material: Black Steel
• Mount Type: Bottom
• Connection Type: 1/4 Inch NPT
• Dial Diameter: 4 Inch
• Dial Material: Aluminum
• Dial Color: White
• Display Type: Dial
• Enclosure Rating: IP52
• Lens Material: Glass
• Pressure Range: 0-300 PSI/KPA
• Pointer Material: Aluminum
• Pointer Color: Black
• Product Type: Pressure Gauge
• Gauge Type: Economy
• Sensor Element: Bourdon Tube
• Series: PEM
• Temperature Rating: -40 to 150 Deg F (Ambient/Process)
• Wetted Parts: Brass (Socket), Phosphor Bronze (Bourdon)
• Construction Material: Chrome Plated Steel (Ring), Brass (Socket), Phosphor Bronze (Bourdon), Silver Alloy (Welding)
• Over-pressure Limit: 25% of full-scale value
• Maximum Working Pressure: 75% of full-scale value
• Standards: ASME B40.100, CRN
• Scale Type: Dual (PSI/KPA)
