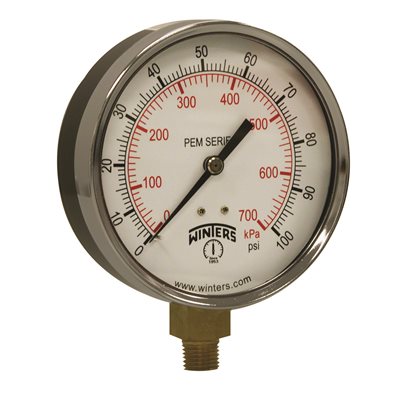

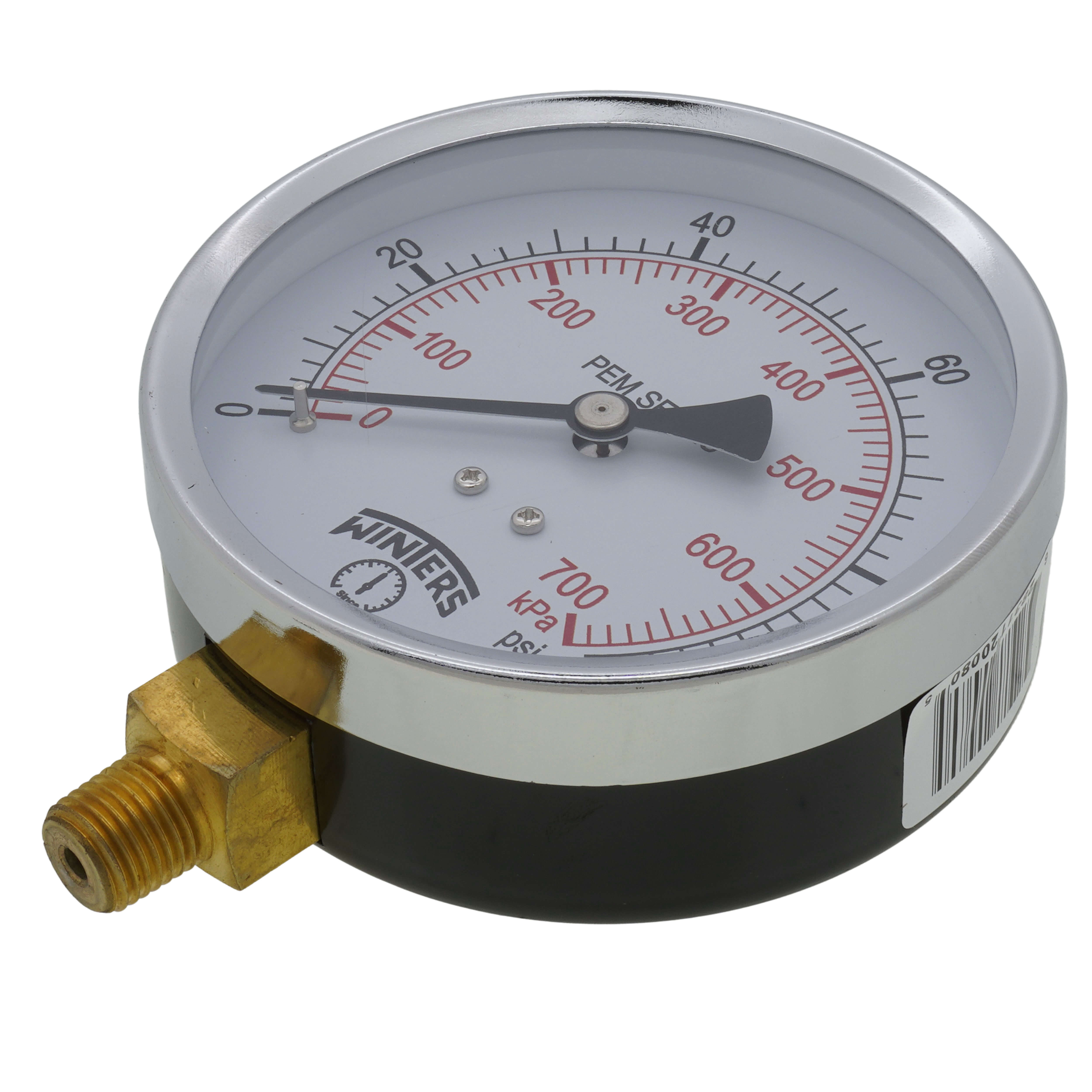

Winters Instruments PEM223 Pressure Gauge 0-100 PSI 4 inches

Product Description

The Winters Instruments PEM223 is an economical, all-purpose pressure gauge featuring a 4" dial and brass internals. It measures pressure with an accuracy of ±3-2-3%. Suitable for plumbing, heating, air conditioning, pneumatic, and hydraulic applications. Note this item is for non-potable (non-human consumption) water applications only.

• Most economical, all-purpose pressure gauge
• Friction bezel rings
• Black steel case

Product Highlights

This pressure gauge is ideal for various applications requiring accurate pressure measurement within a range of 0-100 PSI.

Product Information

Standard Information

• Brand: WINTERS INSTRUMENTS
• Manufacturer Part Number: PEM223

Technical Specifications

• Type: Dry
• Mount: Bottom
• Accuracy: +/-3-2-3 %
• Material: Steel
• Measures: Pressure
• Dial Size: 4 in
• Internals: Brass
• PSI Range: 0-100
• Application: Plumbing, Heating, Air Conditioning, Pneumatic, Hydraulic, Water Tanks, Air Compressors, OEM
• Product Type: Pressure Gauge
• Connection Type: NPT
• Max Pressure (PSI): 100
• Ambient Operating Temperature: -40°F to 150°F
• Ambient/Process Temperature: -40 to 150°F (-40 to 65°C)
• Movement: Brass
• Pointer: Aluminum, black
• Welding: Silver alloy
• Over-pressure Limit: 25% of full scale value
• Working Pressure: Maximum 75% of full scale value
• Enclosure Rating: IP52
• Dial: 4" (100 mm) white aluminum with black and red markings
• Lens: Glass
• Ring: Steel, chrome plated
• Pressure Range: 0 to 100 psi
• Series: PEM
• Temperature Rating: -40 to 150 deg F
• Manufacturer: Winters Instruments
• Manufacturer #: PEM223
• Connection Size: 1/4 in
• Enclosure Type: IP52
• Measuring Range: 0 to 100 psi
• Mounting Type: Bottom
• Pressure Rating: 0 to 100 psi
• Specifications Met: ANSI/ASME Grade B, ASME B40.100, CRN Registered, IP52
• Port Size: 1/4 in NPT
• Pressure Accuracy: +/-3-2-3 %
• Special Features: Economical
