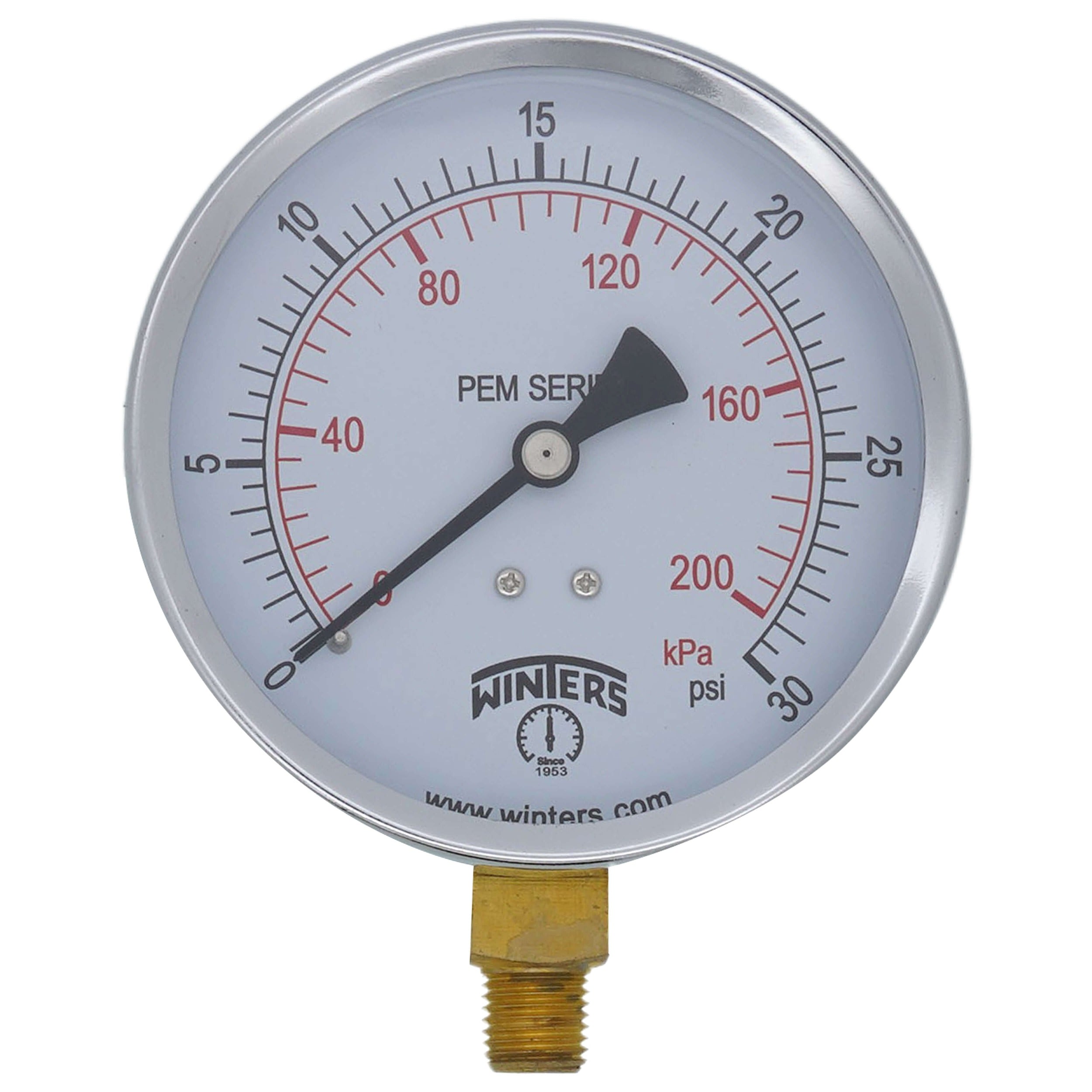

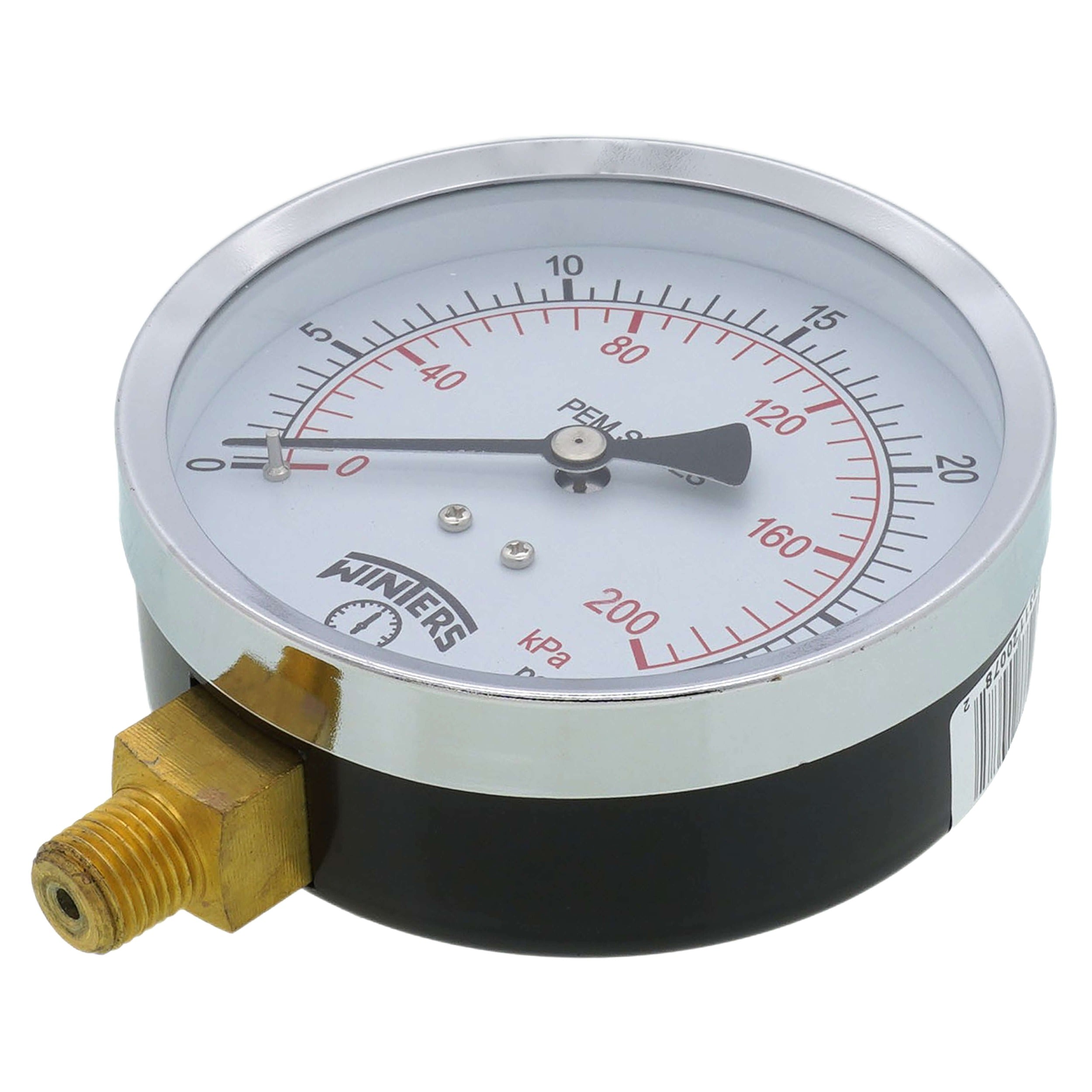

Winters Instruments PEM221 4 inch Dial 0-30 PSI 1/8 or 1/4 inch Threaded Bottom

Product Description

Winters Instruments PEM221 is an economy pressure gauge with a 4 inch dial and a 0-30 PSI range that uses a bourdon tube sensor and a bottom threaded connection. The gauge has a glass lens, IP52 enclosure, black steel case with chrome-plated ring, brass socket, and phosphor bronze bourdon for lead-free construction. Operating temperature is -40 to 150 Deg F and accuracy is +/-3%. Applications include plumbing, HVAC, pneumatic and hydraulic systems.

• 4 inch dial, 0–30 PSI range with bourdon tube sensing and dual-scale (psi/kPa) readout
• Bottom threaded connection (1/8 or 1/4 inch), glass lens, IP52 enclosure, black steel case
• Materials: brass socket, phosphor bronze bourdon, chrome-plated steel ring; temperature -40 to 150 Deg F; accuracy +/-3%

Product Highlights

4 in dial • 0–30 PSI • Bottom 1/8 or 1/4 in threaded connection • IP52 • -40 to 150 Deg F • +/-3% accuracy

Product Information

Standard Information

• Brand: WINTERS INSTRUMENTS
• Manufacturer Part Number: PEM221
