Winters Instruments PEM217 Dual Scale Economy Pressure Gauge 0-300 PSI (2-1/2 inches Dial)

Brand: WINTERS INSTRUMENTS
SKU: PEM217
Availability: In Stock

Ships same day if ordered by 12 pm
$15.48
$15.48
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

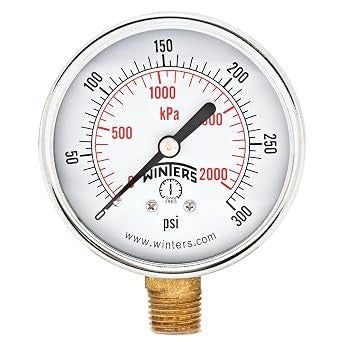

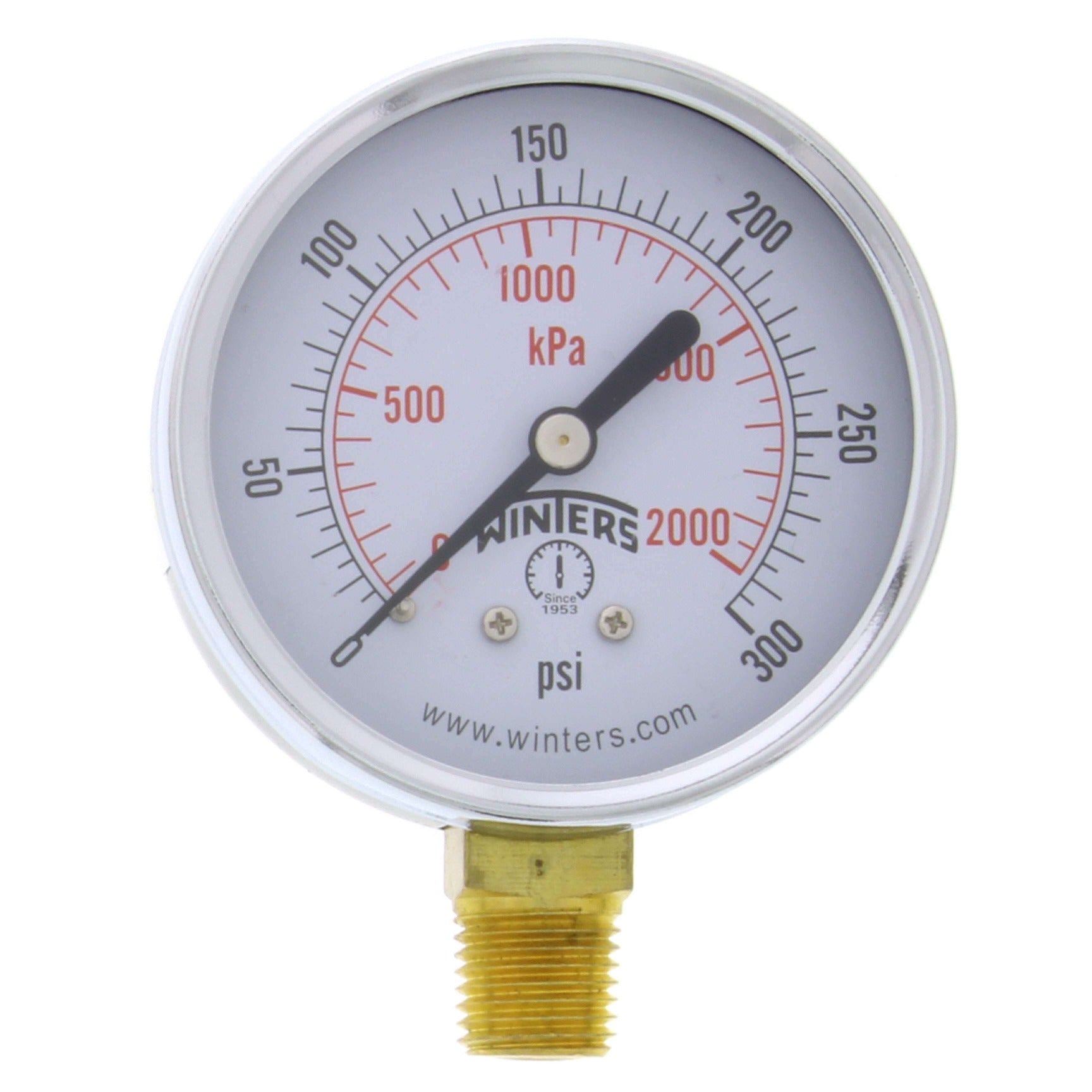

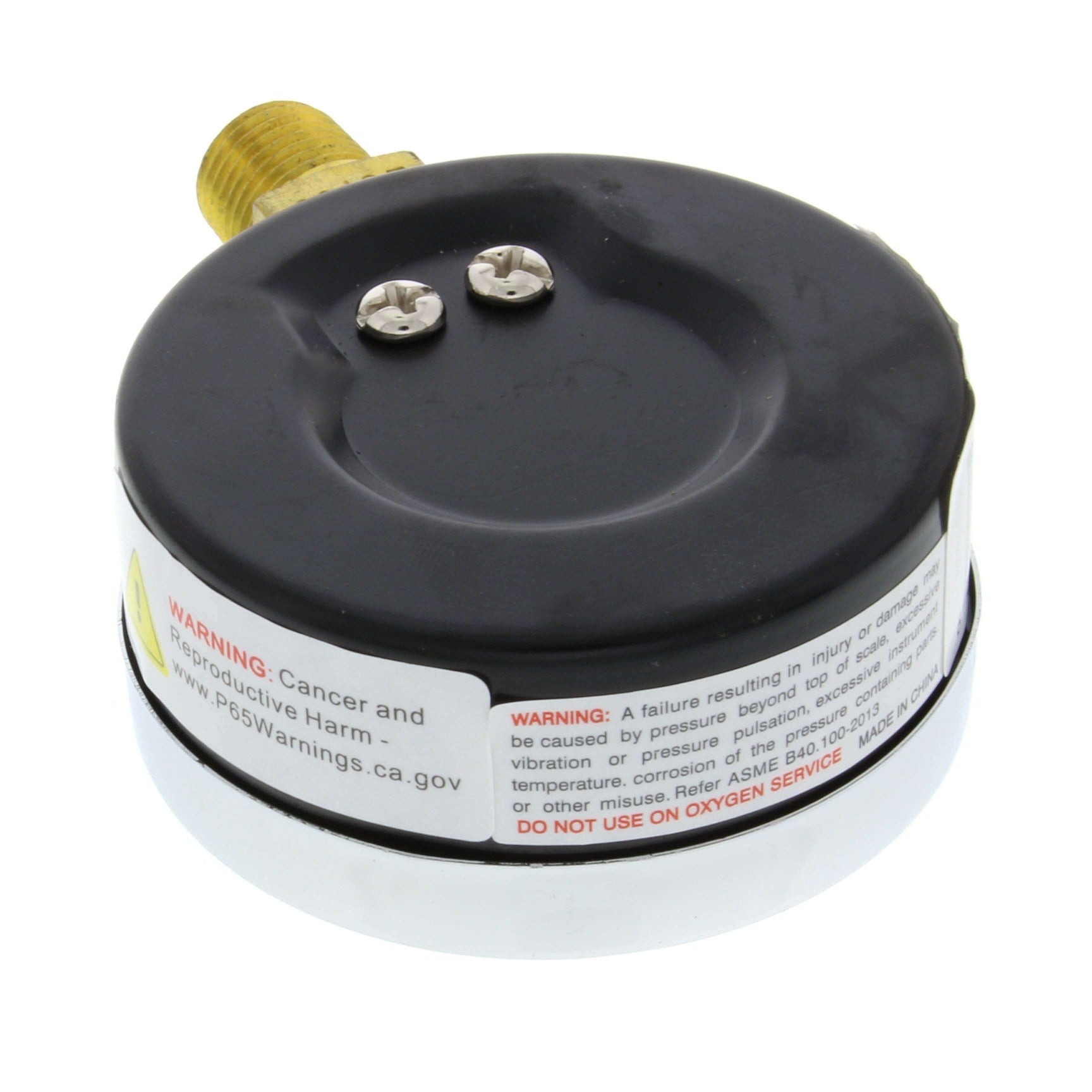

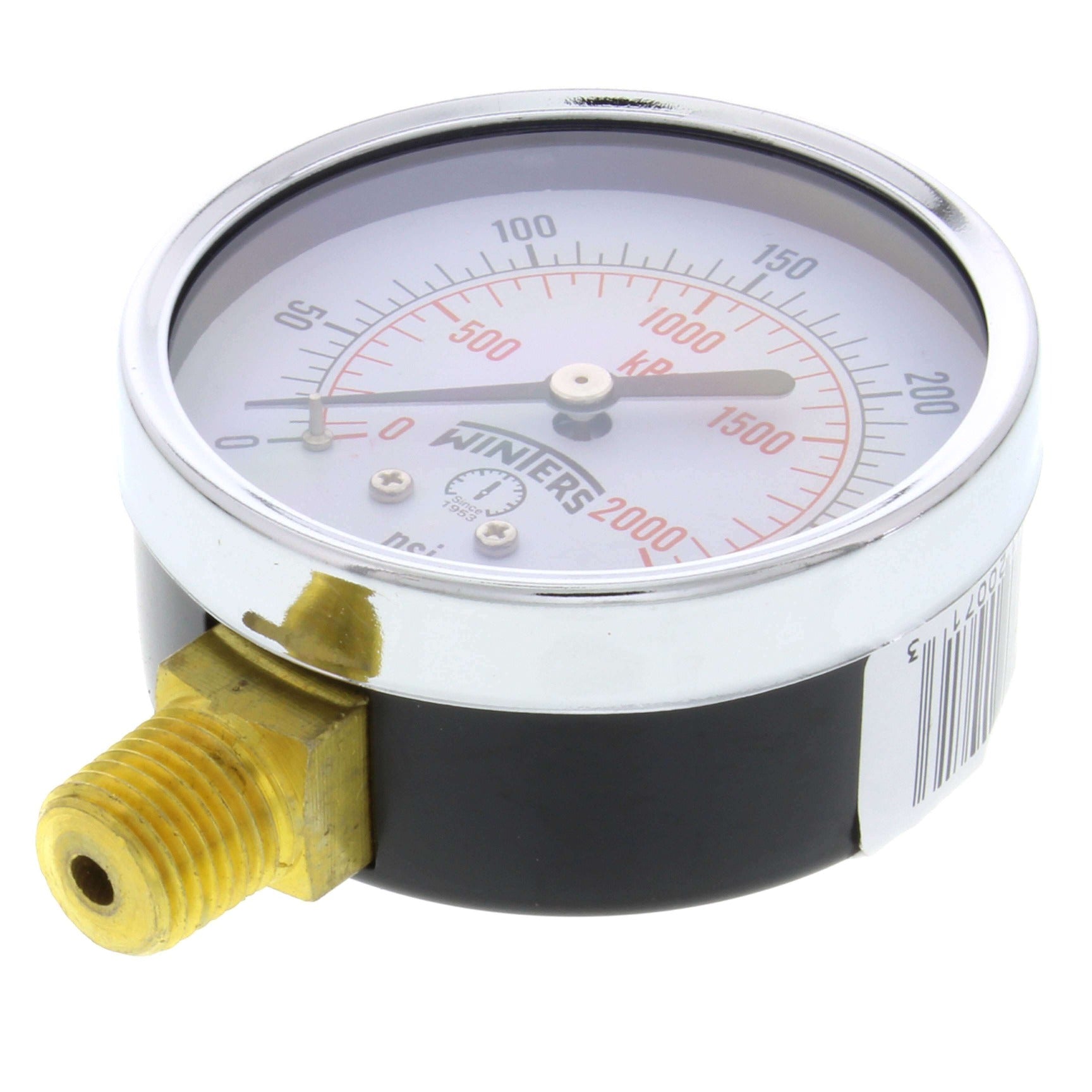

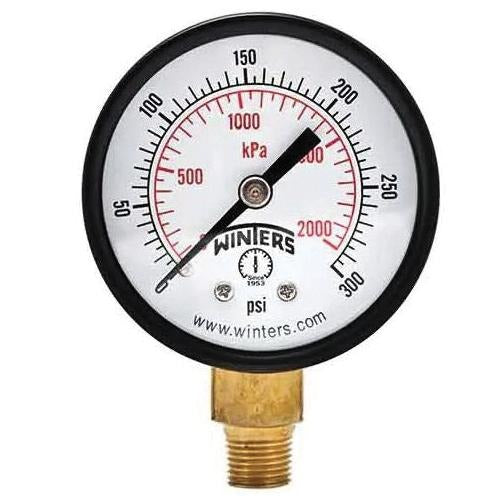

Winters Instruments PEM217 is a 2-1/2" dual scale dry pressure gauge with a 0–300 psi range, bottom 1/4" NPT connection, brass internals and a black steel case. The gauge is listed with approximately ±3% accuracy and an operating temperature range of -40 to 150 F. It includes friction bezel rings, IP52 protection, CRN registration. Not for potable water use.

  • Dual scale 2-1/2" dial (psi/kPa) with friction bezel rings and polycarbonate lens
  • Brass wetted parts and phosphor bronze bourdon tube in a black painted steel case; dry type construction
  • Bottom mount 1/4" NPT connection, operating temperature -40 to 150 F, over-pressure limit 25% of full scale

Product Highlights

2-1/2" dual scale dial, 0-300 psi range, 1/4" NPT bottom connection, IP52, CRN registered

Product Information

Standard Information

  • Brand: WINTERS INSTRUMENTS
  • Manufacturer Part Number: PEM217
Technical Specifications
Brand
Winters Instruments
MPN
PEM217
Product Type
Pressure Gauge
Dial Size
2-1/2" (63 mm)
Pressure Range
0-300 psi
Max Pressure
300 psi
Connection Type
1/4" NPT (male)
Mounting Type
Bottom (also available center back option)
Type
Dry
Wetted Parts
Brass
Internals
Brass
Case Material
Black painted steel
Ingress Protection
IP52
Accuracy
±3% (listed as ±3-2-3%)
Operating Temperature
-40 to 150 F (-40 to 65 C)
Over-pressure Limit
25% of full scale
Maximum Working Pressure
75% of full scale
Bourdon Tube Material
Phosphor bronze
Movement Material
Brass
Lens
Polycarbonate (for 1.5"-2.5" dials)
Weight
0.27 lb
Certifications
CRN registered
Applications
Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors, OEM
