Winters Instruments PEM214LF Lead Free Pneumatic Pressure Gauge 0 to 100 psi

Product Description

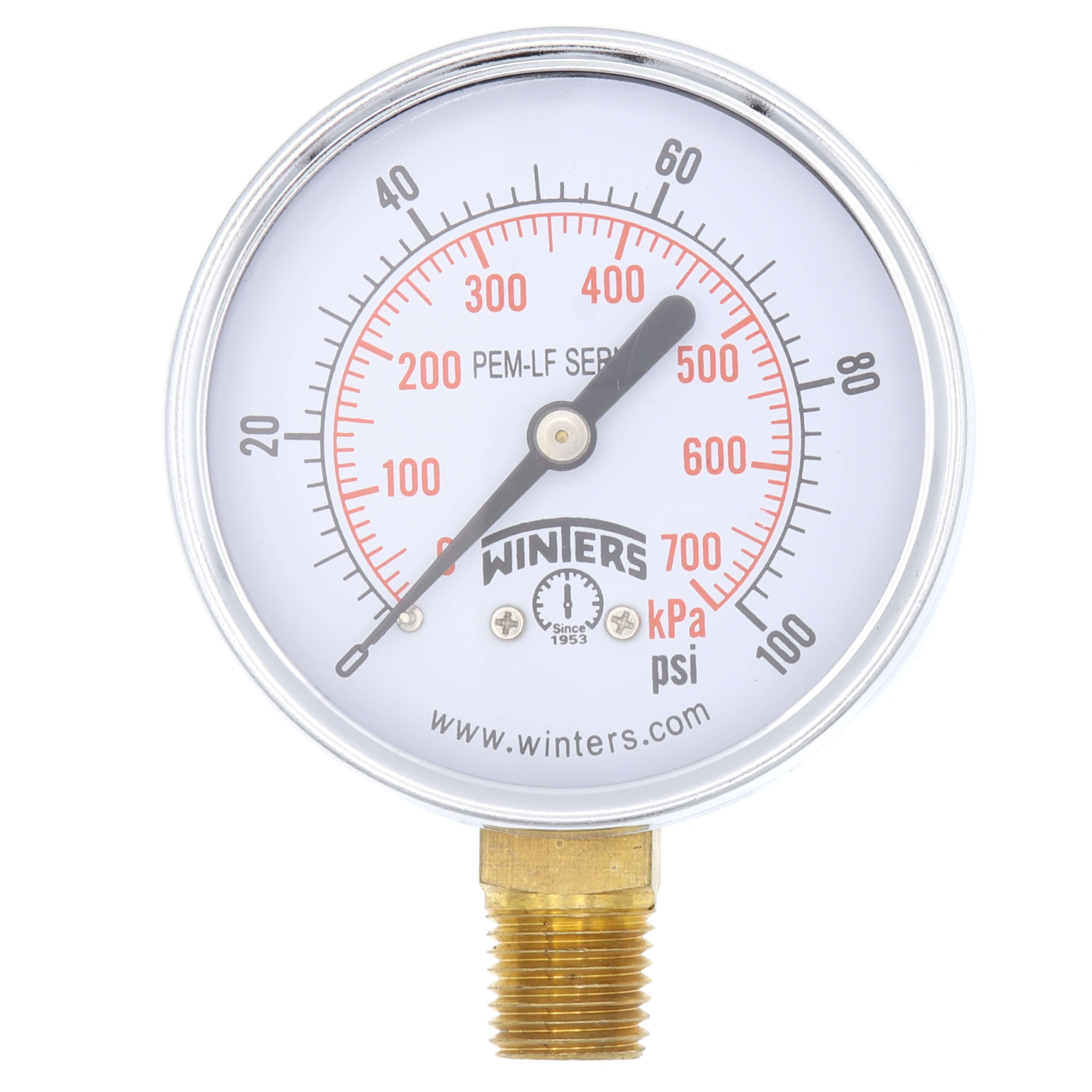

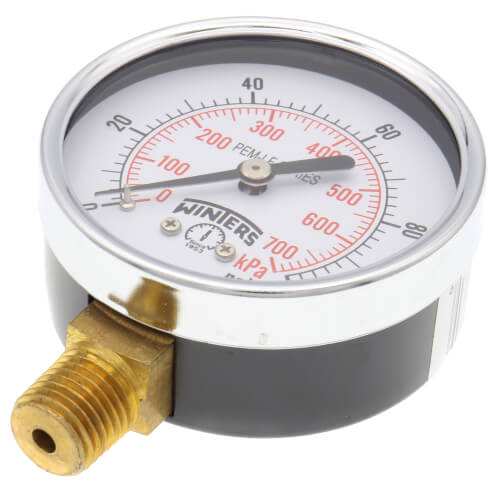

The Winters Instruments PEM214LF is a lead-free pneumatic pressure gauge designed for various applications. This gauge features a two and a half inch face and offers a pressure range of zero to one hundred psi. It is built with a black steel case for durability and is equipped with brass wetted parts.

• Lead free construction compliant with NSF-61-372
• ASME B40.100 compliant
• Accurate readings within three percent

Product Highlights

This pressure gauge is designed for reliable performance in pneumatic systems, featuring a bottom mount connection and a friction bezel ring for easy adjustments.

Product Information

Standard Information

• Brand: Winters Instruments
• MPN: PEM214LF

Technical Specifications

• Dial Size: 2-1/2 inches
• Pressure Range: 0 to 100 psi
• Connection Type: 1/4 NPT
• Accuracy: ±3% of full scale
• Material: Steel case and brass wetted parts
• Application: Pressure measurement
• Weight: 0.25 lbs
• Ambient Operating Temperature: -40°F to 150°F
