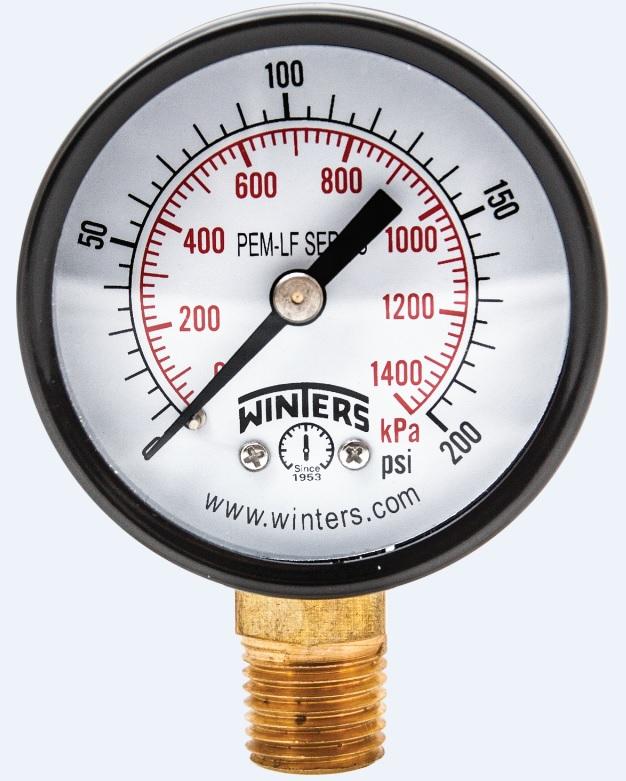

Winters Instruments pem204lf Lead Free Pressure Gauge 200 Psi

Product Description

The WINTERS INSTRUMENTS pem204lf is a lead-free dual-scale pressure gauge from the PEM Series, designed to display pressure in both psi and kPa. The gauge features a 2-inch dial face and a 1/4-inch NPT connection, with a measurement range of 0 to 200 psi. Accuracy is rated at 3-2-3 percent of full scale, meeting standard requirements for general-purpose pressure monitoring. It is suitable for installation by licensed plumbers, HVAC technicians, and mechanical contractors working on potable water, hydronic heating, or similar fluid systems.

The pem204lf is built for residential and light commercial plumbing and HVAC applications where lead-free construction is required by code. Its compact 2-inch dial makes it practical for use in tight mechanical spaces. The dual psi and kPa scale supports projects where both measurement systems are referenced. This gauge is commonly installed on pressure test points, boiler systems, water supply lines, and pump discharge headers.

Key Features

• Lead-free construction for compliance with potable water and plumbing code requirements
• Dual-scale display showing both psi and kPa readings
• 0 to 200 psi measurement range suitable for common plumbing and HVAC service pressures
• 3-2-3 percent accuracy rating across the dial range
• 2-inch dial size for clear readability in compact installations
• 1/4-inch NPT male connection for standard threaded fitting compatibility

Compatibility

Designed as an OEM-style replacement or direct installation gauge for residential and light commercial plumbing, hydronic, and HVAC pressure monitoring applications requiring a 1/4-inch NPT connection and lead-free compliance.

Installation Notes

Installation should be performed by a licensed plumber or mechanical contractor in accordance with local plumbing codes and applicable ASME or ANSI standards. Shut off system pressure and relieve line pressure completely before connecting or removing the gauge. Use an appropriate thread sealant rated for the system fluid and pressure range. Do not exceed the rated maximum pressure of 200 psi.

Technical Specifications

• Pressure Range: 0 to 200 psi
• Dial Size: 2 inches
• Connection Size: 1/4 inches NPT
• Accuracy: 3-2-3 percent of full scale
• Scale: Dual psi and kPa
• Lead-Free: Yes

Standard Information

• Brand: WINTERS INSTRUMENTS
• Manufacturer Part Number: pem204lf
