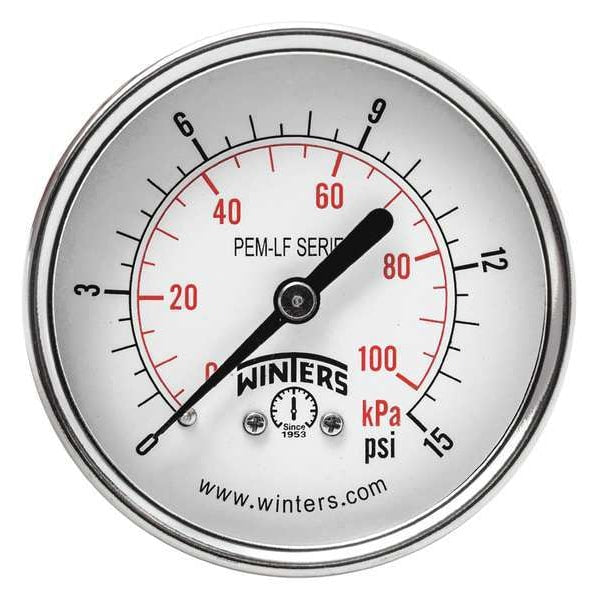

Winters Instruments pem1436lf Lead-free Pressure Gauge 0 to 15 Psi 2.5 Inches Dial 1/4 Inches Npt Center Back

Product Description

The Winters Instruments PEM1436LF is a lead-free pressure gauge designed for plumbing, HVAC, pneumatic, hydraulic, and water system applications where potable water compliance is required. This gauge is part of the PEM-LF series and meets NSF certification standards, making it a code-compliant choice for drinking water systems and installations where lead-free materials are mandated. It reads pressure from 0 to 15 psi and displays a dual scale with a secondary range of 0 to 100 kPa, giving technicians both standard and metric readings at a glance. The 2.5 inches nominal dial features a white face with a black aluminum pointer, making readings easy under typical job site conditions. The gauge uses a phosphor bronze Bourdon tube sensor, which provides reliable and repeatable pressure measurement across non-clogging, non-corroding, and potable water media. The 1/4 inches male NPT center back connection allows for straightforward installation in tight spaces and panel configurations. The steel case is black painted with a welded joint construction, and the lens is plastic. Movement is stainless steel for durability and corrosion resistance. Accuracy is rated at plus or minus 3-2-3 percent, Grade B, mid-scale, in compliance with ANSI/ASME and CRN standards. The ambient and process operating temperature range spans from -40 degrees to 150 degrees F. The IP52 rating means this gauge resists dust ingress and light water dripping. Over-pressure limit is 25 percent of full scale, or approximately 18.75 psi. This gauge is a practical, code-ready option for HVAC technicians, plumbers, and OEM equipment builders who need an affordable, NSF-certified, lead-free pressure gauge for everyday general purpose use. No liquid fill, no calibration certificate, and no mounting hardware are included.

• NSF certified and lead-free brass socket for potable water and plumbing code compliance
• Dual scale display: 0 to 15 psi and 0 to 100 kPa with phosphor bronze Bourdon tube sensor
• 1/4 inches MNPT center back connection with stainless steel movement and IP52 environmental rating

Product Highlights

The Winters Instruments PEM1436LF delivers NSF-certified, lead-free pressure measurement across a wide range of HVAC, plumbing, pneumatic, and water system applications. Its dual-scale 2.5 inches dial, Bourdon tube sensing, and ANSI/ASME compliance make it a reliable general purpose gauge for trade professionals.

Product Information

Standard Information

• Brand: WINTERS INSTRUMENTS
• Manufacturer Part Number: PEM1436LF

Technical Specifications

• Series: PEM-LF
• Pressure Range: 0 to 15 psi
• Secondary Pressure Range: 0 to 100 kPa
• Dial Size: 2.5 inches
• Process Connection Size: 1/4 inches
• Process Connection Type: MNPT
• Process Connection Location: Center Back
• Accuracy: Plus or minus 3-2-3 percent, Grade B
• Sensor Type: Bourdon Tube
• Sensor Material: Phosphor Bronze
• Socket Material: Lead-Free Brass
• Case Material: Steel, Black Painted, Welded Joint
• Lens Material: Plastic
• Dial Color: White
• Pointer Material: Aluminum
• Pointer Color: Black
• Movement Material: Stainless Steel
• Dial Face Material: Aluminum
• IP/NEMA Rating: IP52
• Operating Temperature Range: -40 degrees to 150 degrees F
• Over-Pressure Limit: 25 percent of Full Scale
• Compatible Process Media: Non-Clogging, Non-Corroding, Potable Water
• Scale Type: Dual
• Liquid-Filled Case: No
• NSF Certified: Yes
• Standards: ANSI/ASME, CRN, NSF
• Country of Origin: China
• Manufacturer Warranty: 5 years
• Length: 1.850 inches
