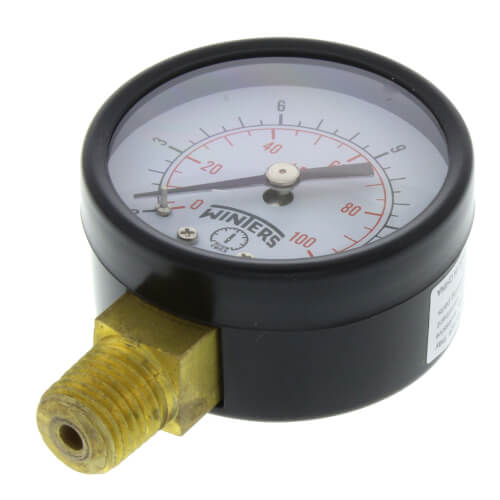

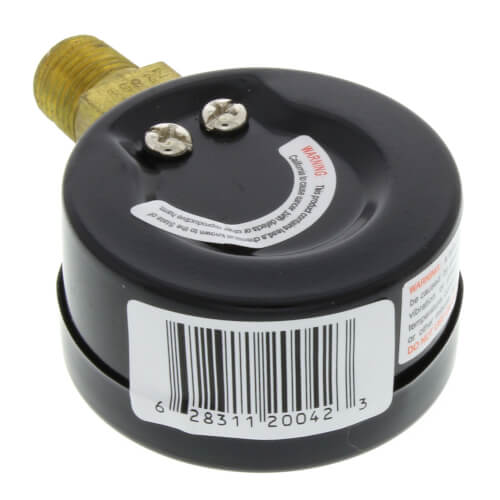

Winters Instruments PEM136LF Pressure Gauge 0-15 PSI (2 inches)

Product Description

The WINTERS INSTRUMENTS PEM136LF is an economical, all-purpose pressure gauge with a black steel case and brass internals. Suitable for plumbing, heating, air conditioning, and more. It features a friction bezel ring and

• Suitable across a variety of applications including potable water systems.
• Crafted from quality materials ensuring durability and reliable performance.
• Has a 2" dial size with 1/4" NPT bottom connection.

Product Highlights

This pressure gauge is ideal for use in plumbing, heating, air conditioning, water tanks, and air compressor applications.

Product Information

Standard Information

• Brand: WINTERS INSTRUMENTS
• Manufacturer Part Number: PEM136LF
• Country of Origin: China

Technical Specifications

• Product Type: Pressure Gauge
• Dial Size: 2"
• Connection Type: 1/4" NPT
• Measures: Pressure
• Application: Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
• PSI Range: 0-15
• Max Pressure (PSI): 15
• Internals: Brass
• Material: Steel
• Type: Dry
• Accuracy: +/-3-2-3%
• Ambient Operating Temperature: -40 Degrees F to 150 Degrees F, -40 Degrees to 65 Degrees C
• Mount: Bottom
• Brand: WINTERS
• Process Connection: 1/4" NPT Male
• Process Connection Location: Bottom
• Gauge Case Material: Steel
• Lens Material: Plastic
• Nominal Dial Size: 2 in
• Pressure Gauge Type: Lead-Free Pressure Gauge
• Pressure Range Type: Pressure
• Case Material: Steel
• Gauge Wetted Parts: Brass, Bronze
• Lens Material - Gauge: Plastic
• Pressure Range: 0 psi to 15 psi
• Process Connection Gender: Male
• Process Connection Size: 1/4 in
• Dry Dampening Feature: Not Available
• Field Fillable: No
• Gauge Case Liquid: None
• Liquid-Filled Case: No
• Primary Scale Units: psi
• Accuracy Grade: Grade B
• Series: PEM-LF
• Bezel Material: Steel
• Blowout Safety Back: No
• Case Color: Black
• Case Depth: 1.161 in
• Case Diameter: 2.19 in
• Case Finish: Painted
• Cleaned for Oxygen Service: No
• Dial Color: White
• Dial Face Material: Aluminum
• Freeze Resistant Movement: No
• Includes Mounting Hardware: No
• Includes Vent Plug: No
• Mounting Type: Stem Mount
• Non-Sparking: No
• Over-Pressure Limit: 25% of Full Scale
• Pointer Material: Aluminum
• Removable Bezel: No
• Scale Type: Dual
• Secondary Scale Units: Kpa
• Sensor Material: Phosphor Bronze
• Sensor Type: Bourdon Tube
• Socket Material: Lead Free Brass
• Standards: ANSI/ASME; CRN; NSF
• Manufacturer Part Number: PEM136LF
• Panel-Mountable: No
• Pointer Color: Black
• IP Rating: IP52
• NEMA Enclosure Rating: 5
• Operating Temperature - Maximum: 150 Degrees F
• Operating Temperature - Minimum: -40 Degrees F
• Primary Scale Pressure Measurement - Maximum: 15 psi
• Primary Scale Pressure Measurement - Minimum: 0 psi
• Process Media Temperature - Maximum: 150 Degrees F
• Process Media Temperature - Minimum: -40 Degrees F
• Secondary Scale Pressure Measurement - Maximum: 100 kPa
• Secondary Scale Pressure Measurement - Minimum: 0 kPa
• Compatible with Brand - TS Only: Universal
• Wetted Parts Material: Lead Free Brass Phosphor Bronze
• IP/NEMA Rating: IP52
• Vibration Resistance Properties: None
• UNSPSC: 23151820
• Item: Lead-Free Pressure Gauge
• Accuracy Scale: Mid Scale
• Ambient Operating Temperature Range: -40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
• Basic Gauge Case Material: Steel
• Basic Gauge Sensor Material: Bronze
• Basic Gauge Socket Material: Brass
• Case Construction: Welded Joint
• Case Dia.: 2.19"
• Characteristics: Friction Bezel Ring
• Color: Black
• Compatible Process Media: Non-Clogging, Non-Corroding, Potable Water
• Connection Location: Bottom
• Connection Size: 1/4"
• Dial Size (In.): 2 in
• For Use With: Air Compressors, Air Conditioning, Heating, Plumbing, Pneumatic, Water Tanks
• Gauge Case Color: Black
• Gauge Connection Location: Bottom
• Gauge Connection Size: 1/4"
• Gauge Nominal Dial Size: 2"
• Gauge Panel Mountable: No
• Gauge Primary Range Units: Psi
• Gauge Socket Material: Brass
• Hazardous Location Rating: Not Rated
• Movement Material: Stainless Steel
• Nsf Certified: Yes
• Operating Temp. Range: -40 Degrees F to +150 Degrees F
• Over-pressure Limit: 25%
• Primary Application: Lead Free
• Primary Pressure Range: 0 psi to 15 psi
• Process Temperature Range: -40 Degrees F to +150 Degrees F
• Required Gauge Adapter: No
• Wetted Materials: Brass, Bronze
• Standard: ANSI/ASME, CRN, NSF
• Vibration Resistance: None
• Maximum Pressure: 15
• Operating Temperature Range: -40 Degrees to 150 Degrees F
• Case Liquid: None
• Compatible with Brand: Universal
• Length: 2.992"
• Nominal Dial Diameter: 2 in
