WINTERS INSTRUMENTS Winters Instruments PCT334 Industrial Compound Gauge 300 psi 4 1/2 in Dial
WINTERS INSTRUMENTS Winters Instruments PCT334 Industrial Compound Gauge 300 psi 4 1/2 in Dial

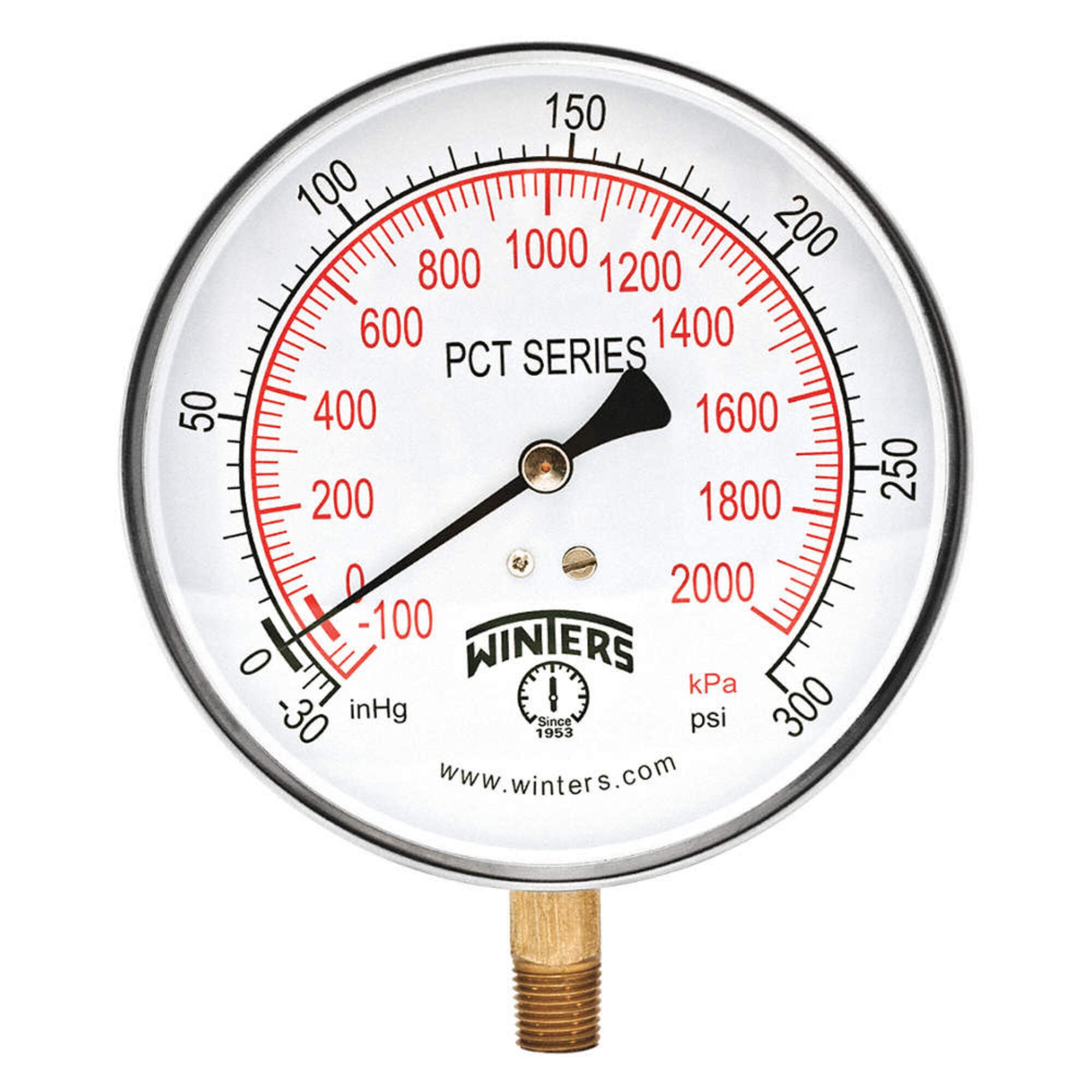

Winters Instruments PCT334 Industrial Compound Gauge 300 psi 4 1/2 in Dial

Brand: WINTERS INSTRUMENTS
SKU: PCT334
Availability: In Stock

Ships same day if ordered by 12 pm
$37.71
$37.71
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The WINTERS INSTRUMENTS PCT334 is an industrial compound gauge commonly used in commercial HVAC applications to monitor system pressure. It is a good option for steam, hot water, and chilled water pumping systems. The gauge features a 4 1/2 in dial, a 1/4 in NPT male bottom connection, and an IP52 rating.

  • Accuracy +/-1.0%
  • Process Connection Location Bottom
  • Process Connection Size 1/4 in

Product Highlights

Industrial compound gauge with 4 1/2 in dial and 1/4 in NPT male bottom connection for HVAC and boiler systems.

Product Information

Standard Information

  • Brand: WINTERS INSTRUMENTS
  • Manufacturer Part Number: PCT334
  • Country of Origin: China
Technical Specifications
Brand
WINTERS
Accuracy
+/-1.0%
Accuracy Grade
ASME B40.100 Grade 1A
Bezel Material
304 Stainless Steel
Blowout Safety Back
No
Case Color
Metallic
Case Depth
1.18 in
Case Diameter
4.92 in
Case Material
Stainless Steel
Cleaned for Oxygen Service
No
Dial Color
White
Dial Face Material
Aluminum
Dry Dampening Feature
None
Field Fillable
No
Freeze Resistant Movement
No
Gauge Accuracy Grade
Grade 1A - Industrial
Gauge Case Material
304 Stainless Steel
Gauge Wetted Parts
Brass / Bronze
Includes Mounting Hardware
No
Includes Vent Plug
No
Lens Material
Acrylic
Liquid-Filled Case
No
Nominal Dial Size
4-1/2 in
Non-Sparking
No
Over-Pressure Limit
25%
Panel-Mountable
No
Pointer Material
Aluminum
Pressure Gauge Type
Industrial Pressure Gauge
Pressure Range
0 psi to 300 psi
Pressure Range Type
Compound
Primary Scale Units
in Hg/psi
Process Connection
1/4 in NPT Male
Process Connection Gender
Male
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Removable Bezel
No
Scale Type
Single
Sensor Material
Phosphor Bronze
Sensor Type
Bourdon Tube
Series
PCT
Socket Material
Brass
Standards
ASME; CRN
IP Rating
IP52
NEMA Enclosure Rating
5
Primary Scale Pressure Measurement - Maximum
300 psi
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Vacuum Measurement - Maximum
30 in Hg
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Process Media Temperature - Maximum
200 \n {
