Winters Instruments PCT325 4.5 inches PCT Contractor Pressure Gauge (0-200 psi)

Brand: WINTERS INSTRUMENTS
SKU: PCT325
Availability: Out Of Stock
$26.31
$26.31
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

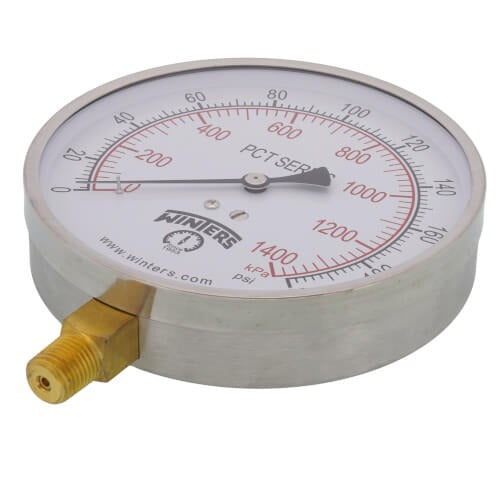

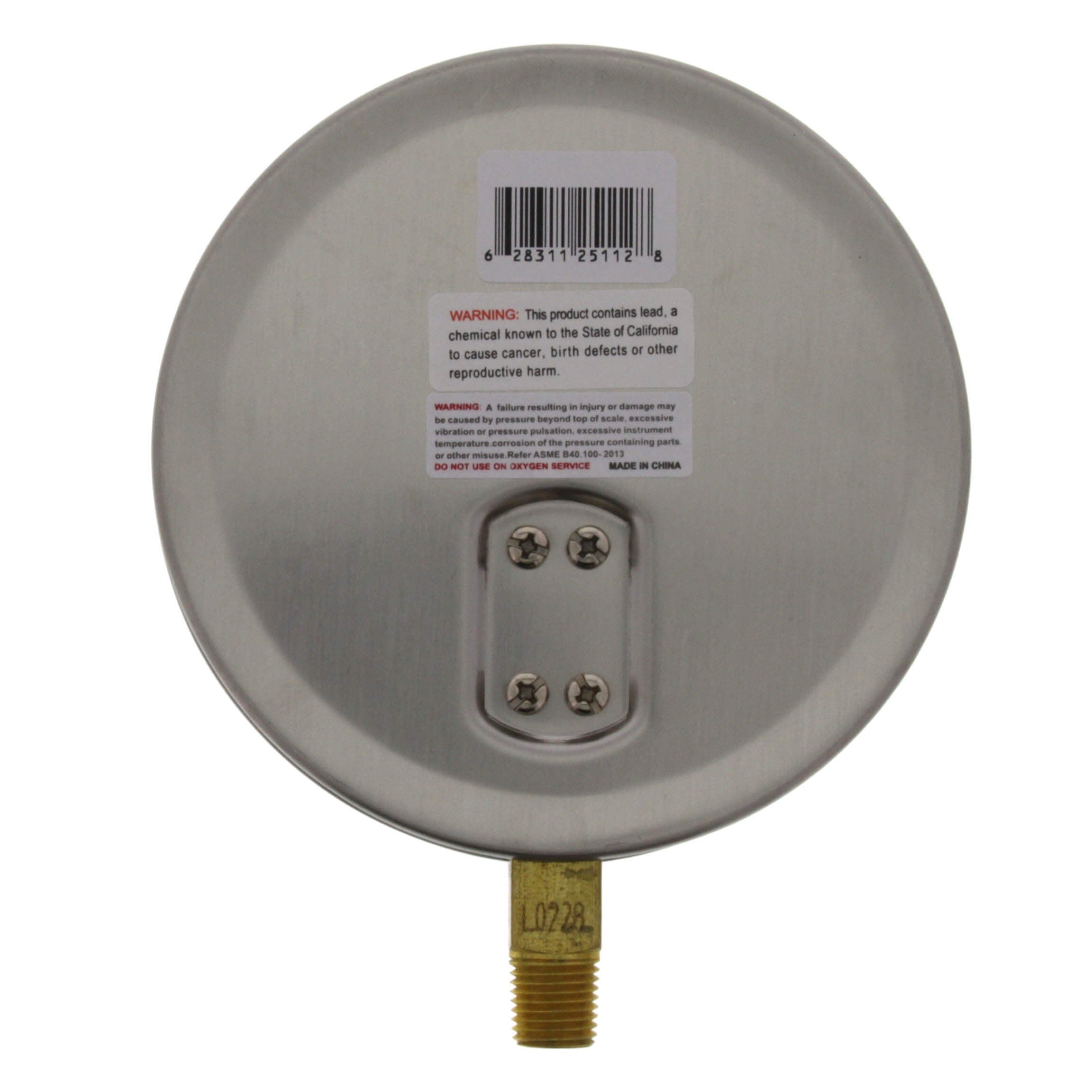

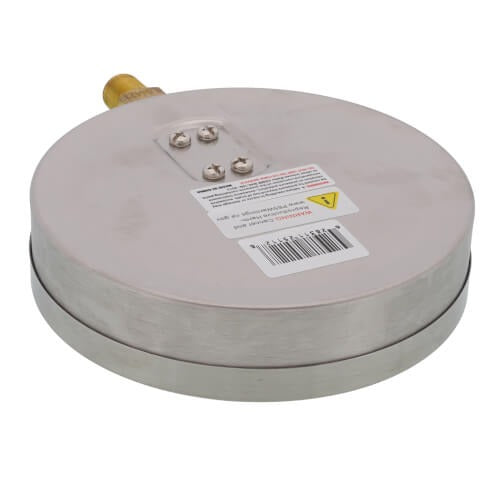

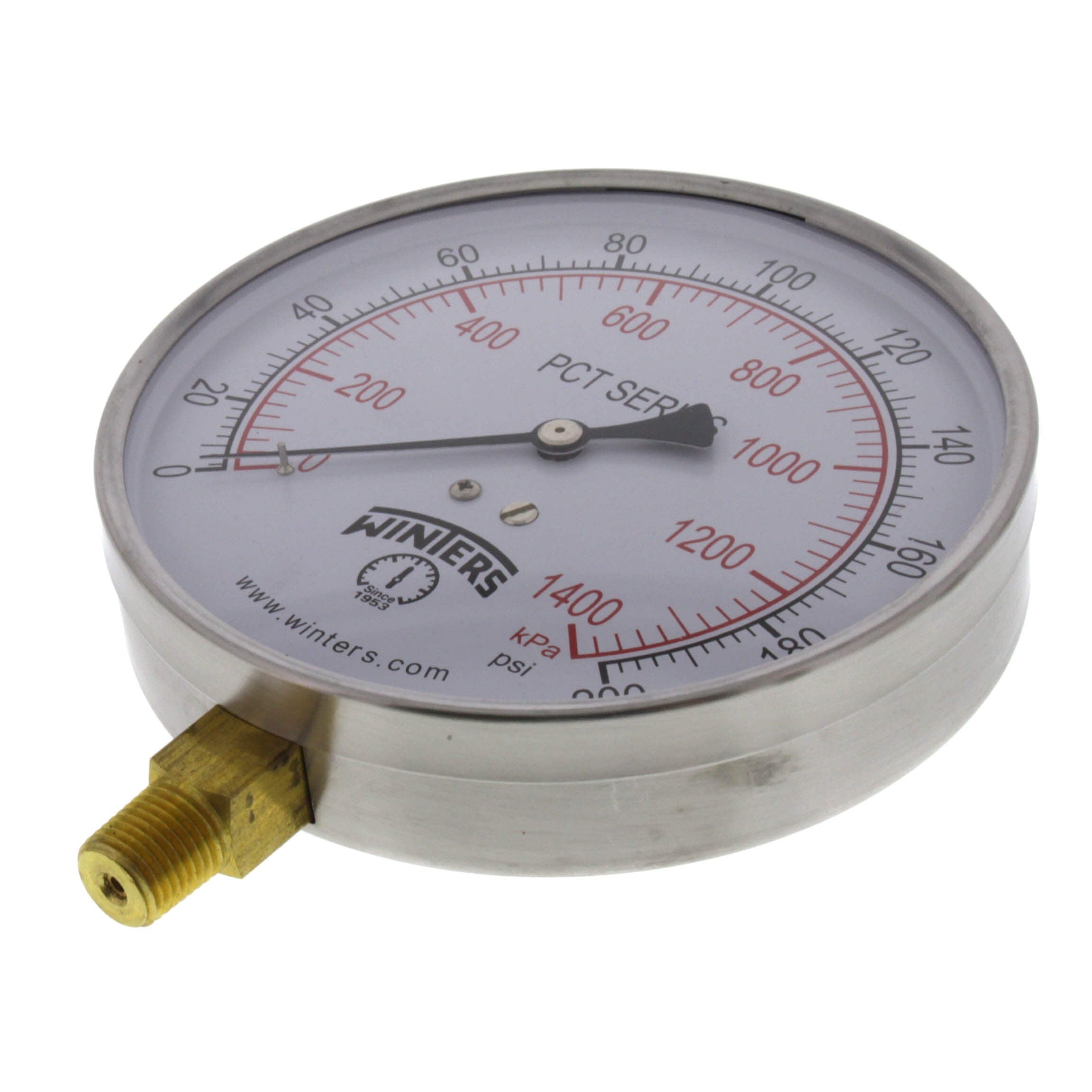

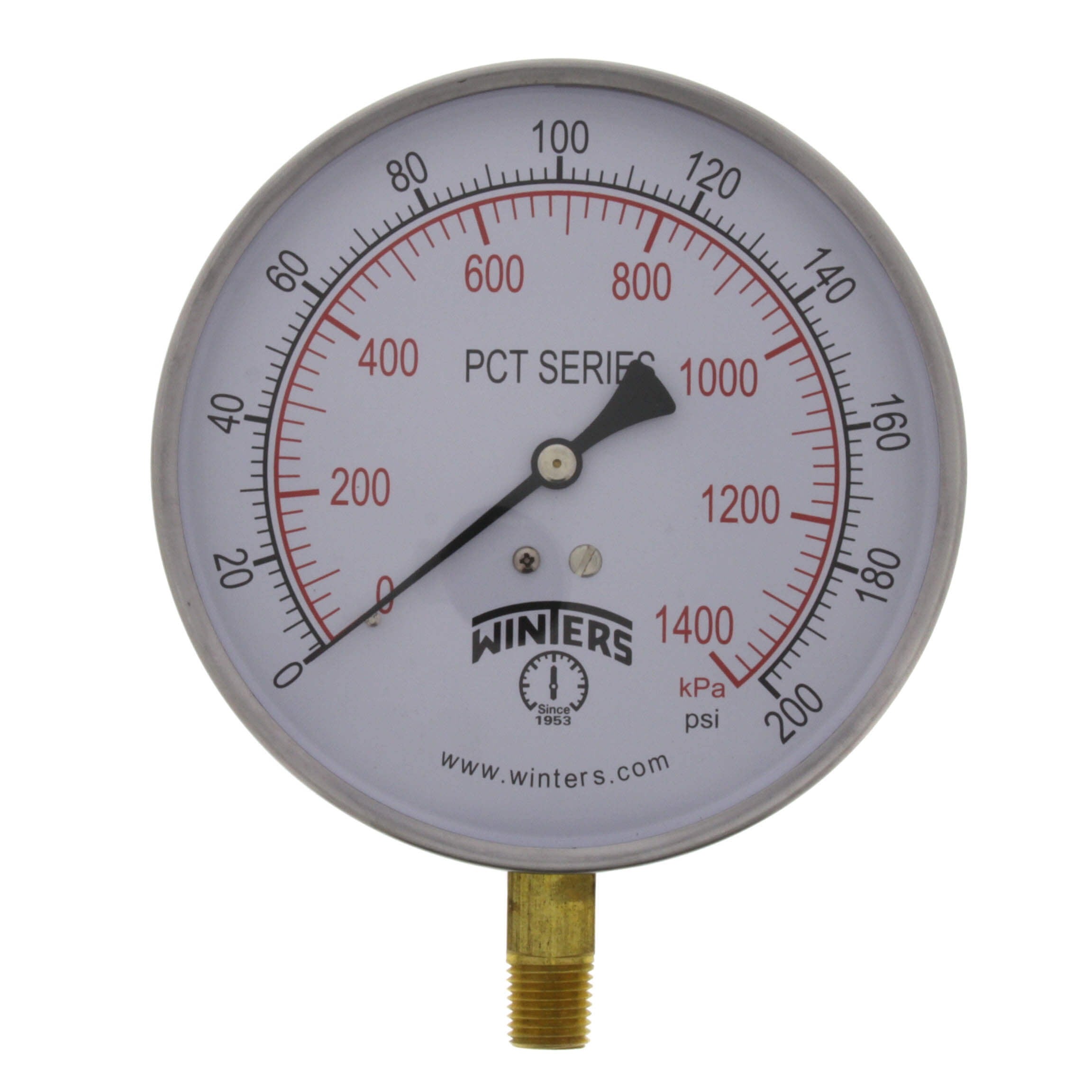

Winters Instruments PCT325 is a 4.5-inch stainless steel dry pressure gauge that measures 0–200 psi with ±1% full-scale accuracy. It includes a bottom 1/4-inch NPT connection and a zero adjustment screw, and uses a bronze bourdon tube for general-purpose pressure measurement in commercial air, water, and steam systems. The gauge is CRN registered and not for potable water use.

  • 4.5 in (115 mm) dial, 0–200 psi range, ±1% full-scale accuracy
  • Bottom 1/4" NPT connection, 304 stainless steel case, acrylic window
  • Dry movement with zero adjustment screw; CRN registered; operating temperature -40°F to 200°F

Product Highlights

Stainless steel contractor pressure gauge for commercial air, water, and steam (non-potable); CRN registered.

Product Information

Standard Information

  • Brand: WINTERS INSTRUMENTS
  • Manufacturer Part Number: PCT325
Technical Specifications
Brand
Winters Instruments
MPN
PCT325
Product Type
Pressure gauge
Dial Size
4.5 in (115 mm)
Range
0-200 psi
Max Pressure
200 psi
Accuracy
±1% full-scale
Case Material
304 stainless steel
Bourdon Tube Material
Bronze
Window Material
Acrylic
Type
Dry
Filling
Dry (wet filled versions available on other models)
Mounting Type
Bottom (lower)
Connection Type
1/4" NPT
Connection Location
Lower / bottom
Scale
psi (dual psi/kPa scale available on some versions)
Media Compatibility
Air, water, steam; compatible with liquids and gases
Overpressure
125% of full scale value
Operating Temperature
-40°F to 200°F
CRN Registered
Yes
Weight
0.8 lb
