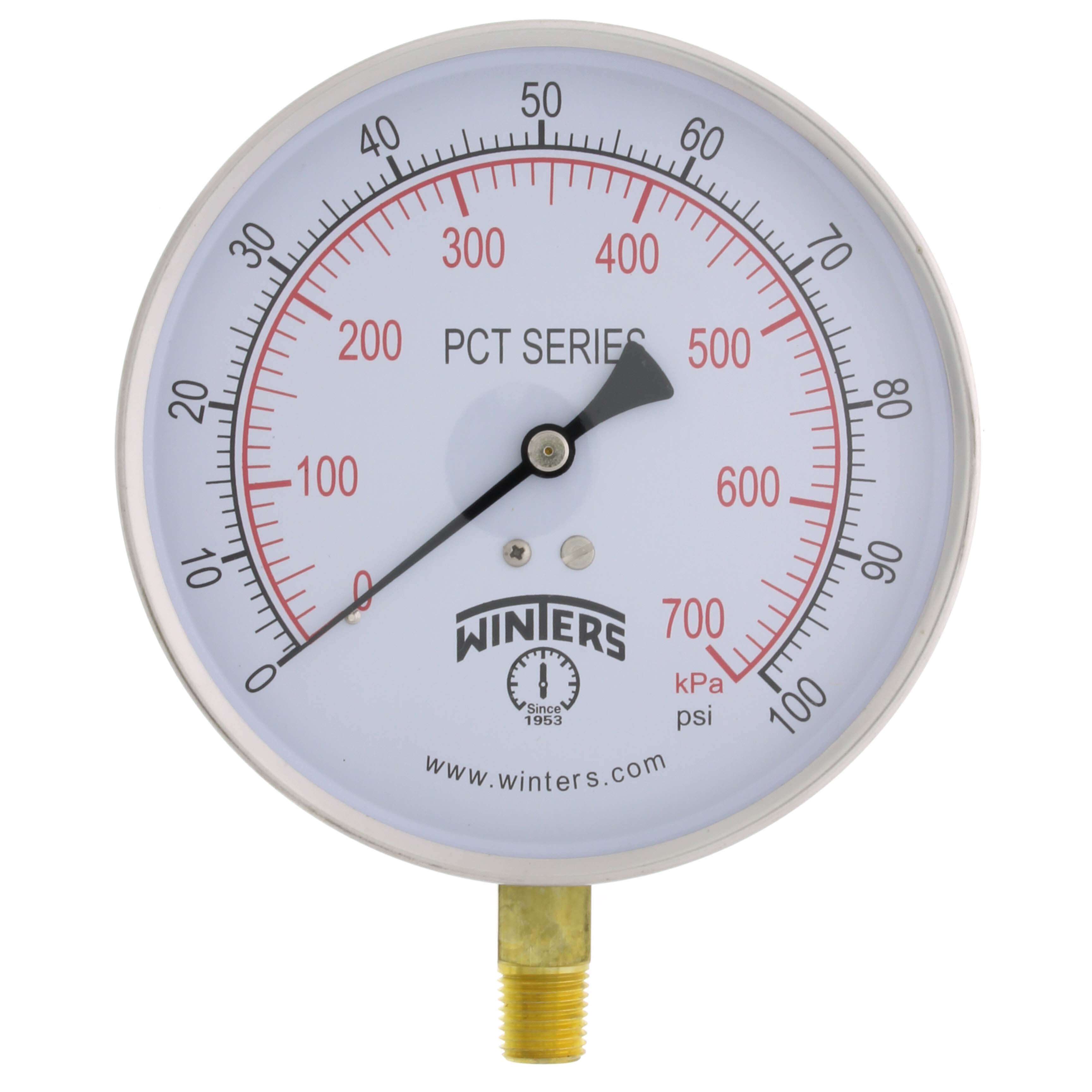

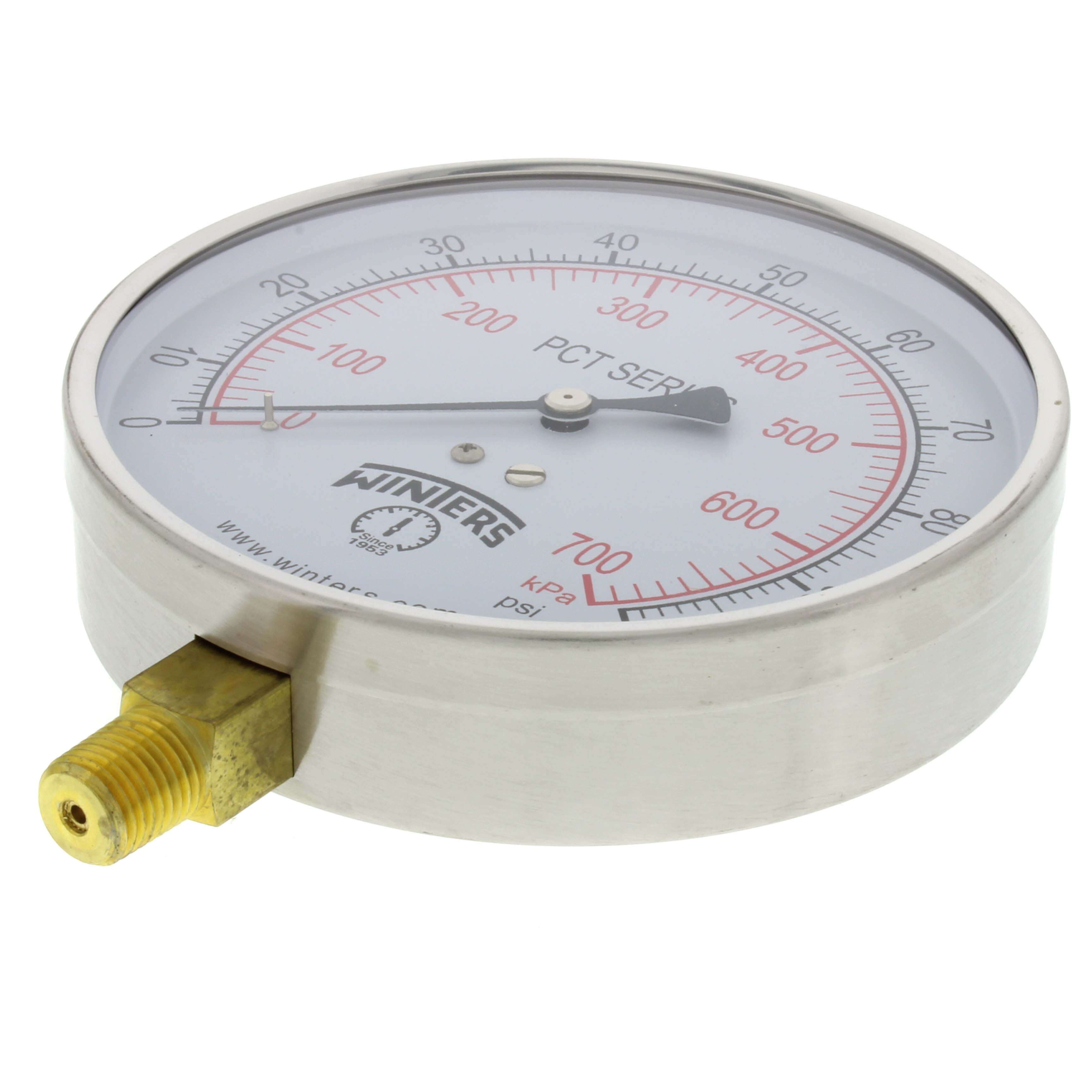

Winters Instruments PCT323 Contractor Pressure Gauge 0-100 psi 4.5 inches

Product Description

The WINTERS INSTRUMENTS PCT323 is an economical 4.5" stainless steel case gauge with ±1% accuracy. It features a zero adjustment screw and a 1/4" NPT connection. Suitable for most commercial air, water, and steam services requiring ±1% full-scale accuracy. It is CRN registered and comes with a 5-year warranty.

• Economical 4.5" (115mm) stainless steel case gauge
• ±1% accuracy
• Zero adjustment screw

Product Highlights

This pressure gauge is designed for use in commercial air, water, and steam applications. It features a stainless steel case, brass wetted parts and is CRN registered.

Product Information

Standard Information

• Brand: WINTERS INSTRUMENTS
• Manufacturer Part Number: PCT323

Technical Specifications

• Type: Dry
• Mount: Bottom
• Accuracy: 1%
• Material: 304 Stainless Steel
• Dial Size: 4-1/2"
• Product Type: Pressure Gauge
• Connection Size: 1/4 in
• Connection Type: NPT
• Ambient Temperature: -40 to 200 F
• Measurement: PSIG
• Media Compatibility: Liquid,Gas
• Range: 100 psi
• Connection: NPT
• Filling: Dry,Wet
• Direction: Uni-Directional
• Overpressure: 125% of FS value
• Operating Temperature: -40 to 150 F (-40 to 65 C)
• Wetted Parts: Brass socket, phosphor bronze bourdon tube
• Window Material: Acrylic
• Case: 304 SS
• Lens: Acrylic
• Ring: 304 SS
• Socket: Brass
• Bourdon Tube: Phosphor bronze
• Movement: Brass
• Pointer: Aluminum, anodized black, recalibrator screw
• Welding: Silver solder
• Over-Pressure Limit: 25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa)
• Working Pressure: Maximum 75% of full scale value
• Ambient/Process Temperature: -40 to 200 F (-40 to 93 C)
• Enclosure Rating: IP52
• Series: PCT Series
• Measuring Range: 0 to 100 psi
• Temperature Rating: -40 to 150 deg F
• Mounting Type: Bottom
• Dial Diameter: 4-1/2 in
• Application Type: Most commercial air water and steam services
