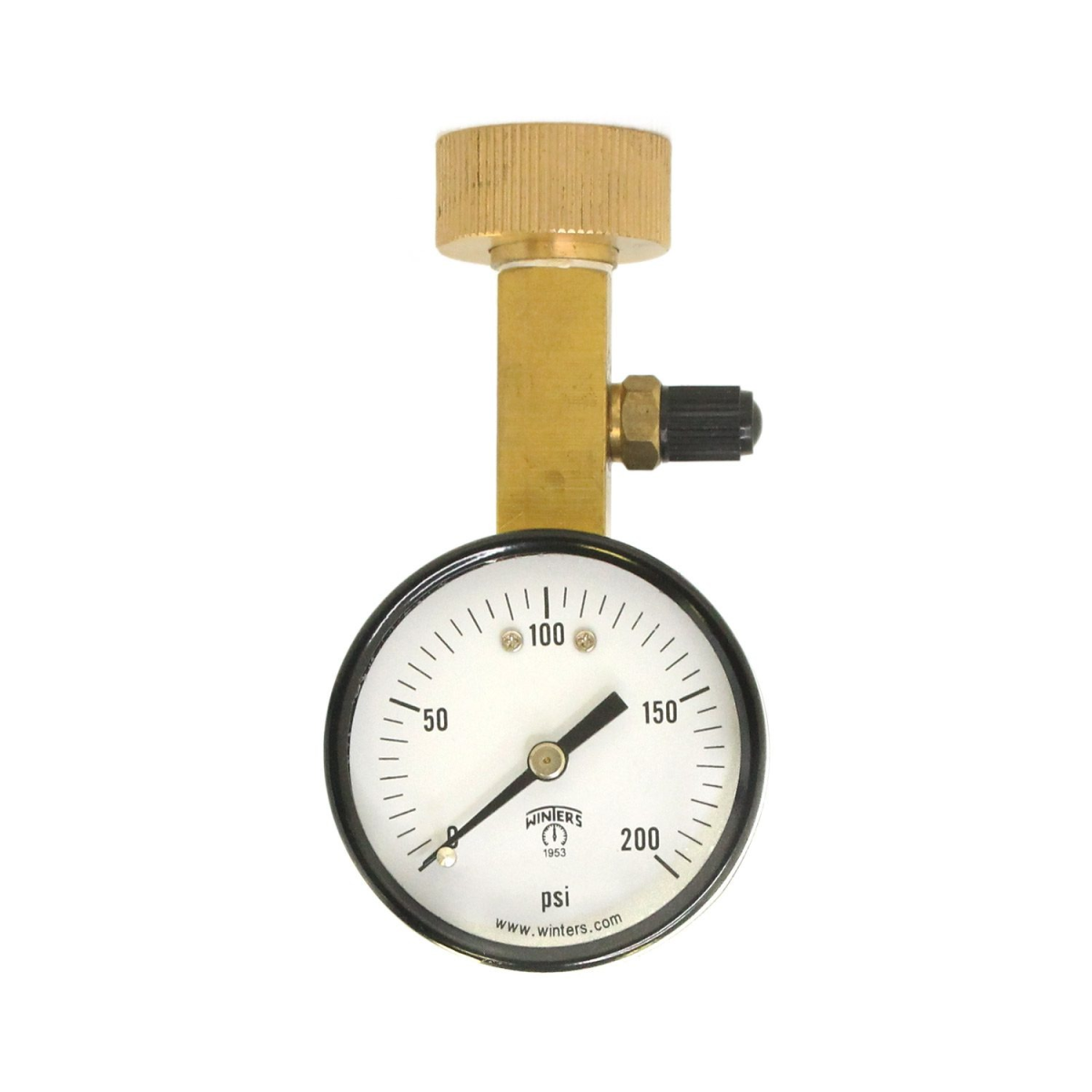

Winters Instruments AOM-204TM Air Over Water Test Gauge Kit 0 psi to 200 psi

Product Description

The WINTERS INSTRUMENTS AOM-204TM is an economical pressure gauge designed for water pressure testing. It features a swivel hose adapter for easy connectivity and includes a Schrader bleed valve. The gauge has a black steel case, brass wetted parts, and a single scale in PSI with 3-2-3% accuracy. It is suitable for residential and commercial applications with non-clogging and non-corroding media.

• Includes 3/4 in Swivel Hose, Gauge, Schrader Bleed Valve On The Socket
• Accuracy 3-2-3%
• Suitable for non-clogging and non-corroding media

Product Highlights

Air over water test gauge kit with swivel hose adapter, Schrader bleed valve, and brass wetted parts.

Product Information

Standard Information

• Brand: WINTERS INSTRUMENTS
• Manufacturer Part Number: AOM-204TM
• Country of Origin: China

Technical Specifications

• Brand: WINTERS
• Accuracy: 3-2-3%
• Accuracy Grade: ASME B40.100 Grade B
• Dial Color: White
• Dial Face Material: Aluminum
• Freeze Resistant Movement: No
• Includes: 3/4 in Swivel Hose Gauge Schrader Bleed Valve On The Socket
• Lens Material: Acrylic
• Manufacturer Part Number: AOM-204TM
• Nominal Dial Size: 2 in
• Pointer Material: Aluminum
• Pressure Gauge Type: Air Over Water Test Gauge
• Pressure Gauge or Kit Type: Air Over Water Test Gauge
• Pressure Range: 0 psi to 200 psi
• Pressure Range Type: Pressure
• Primary Pressure Scale Color: Black
• Process Connection: 3/4 in GHT Female
• Process Connection Gender: Female
• Process Connection Location: Top
• Process Connection Size: 3/4 in
• Process Connection Type: GHT
• Scale Type: Single
• Sensor Material: Bronze
• Sensor Type: Bourdon Tube
• Series: AOM
• Socket Material: Brass
• Standards: ANSI/ASME
• Temp. Range: -40 F to 150 F
• Operating Temperature - Maximum: 150 F
• Operating Temperature - Minimum: -40 F
• Primary Scale Pressure Measurement - Maximum: 200 psi
• Primary Scale Pressure Measurement - Minimum: 0 psi
• Process Media Temperature - Maximum: 150 F
• Process Media Temperature - Minimum: -40 F
• Wetted Parts Material: Brass Bronze
• Gauge Wetted Parts: Brass / Bronze
• UNSPSC: 23151820
• MPN: AOM-204TM
• MFR #: AOM-204TM
• Item: Air Over Water Test Gauge Kit
• Range: 0 to 200 psi
• Application: Non-Corroding Media, Residential, Non-Clogging Media
• Adjustable Pointer: No
• Pointer Color: Black
• Gauge Case Material: Steel
• Primary Scale Units: psi
• Temperature Scale Units: Degrees C, Degrees F
• Reads Head Pressure: No
• Accuracy Scale: Mid-Scale
• Compatible Process Media: Water
• Primary Scale Color: Black
• Ambient Operating Temperature Range: -40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
• Process Temperature Range: -40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
• Dial: 2 (50mm) white aluminum with black markings
• Case: Steel painted black
• Ring: Steel, painted black
• Bourdon Tube: Phosphor bronze
• Movement: Brass
• Connection: 3/4 female swivel hose connection
• Welding: #50 tin solder
• Ambient/Process Temperature: -40 F to 150 F (-40 C to 65 C)
• Water Test: 32 F to 150 F (0 C to 65 C)
• Working Pressure: Maximum 75% of full scale value
• Enclosure Rating: IP52
• Mfr. Series: AOM Series
• standard: ANSI/ASME
