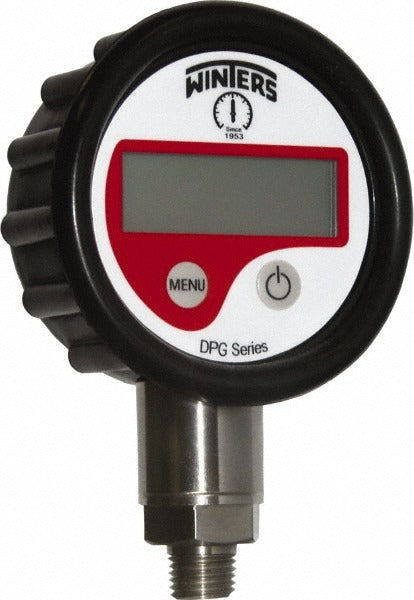

Winters DPG224 Digital Pressure Gauge 0-10000 Psi

Product Description

The WINTERS DPG224 is a digital pressure gauge designed for accurate pressure measurement across a wide range of industrial and mechanical applications. It features a 2.5-inch digital dial display and covers a pressure range of 0 to 10,000 psi, making it suitable for high-pressure system monitoring. The gauge carries 1% of scale accuracy and is built with an ABS (Acrylonitrile Butadiene Styrene) case for durability. It uses a 1/4-inch NPT lower-mount connection and requires no liquid fill. Licensed HVAC technicians, plumbers, and industrial service professionals typically use this gauge for system diagnostics and pressure verification on high-pressure lines.

The DPG224 is suited for use in both residential and commercial settings where high-pressure monitoring is required. Its lower-mount NPT connection makes it compatible with standard pipe fittings commonly found in hydraulic systems, compressed air lines, water service, and high-pressure fluid circuits. The digital readout provides straightforward pressure readings without the parallax error associated with analog gauges, which makes it useful in tight or awkward installation locations where precise reading matters.

Key Features

• Digital display with 2.5-inch dial for clear pressure readings at high ranges
• Wide pressure range of 0 to 10,000 psi covers demanding high-pressure applications
• 1% of scale accuracy meets ASME B40.100 standards
• 1/4-inch NPT lower-mount connection fits standard pipe thread fittings
• No-fill design eliminates liquid glycerin maintenance concerns
• ABS case construction rated for operating temperatures from -4 to 167 degrees F
• IP60 rating provides protection against dust ingress

Compatibility

Designed as a direct-install pressure gauge for systems using 1/4-inch NPT lower-mount connections, including high-pressure hydraulic, pneumatic, compressed air, and fluid service lines.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with the pressure system being serviced. Always depressurize and isolate the system before installing or removing the gauge. Use appropriate thread sealant on NPT connections and tighten to fitting manufacturer recommendations without over-torquing the case. Verify the system pressure range does not exceed the gauge maximum of 10,000 psi before placing the gauge in service.
