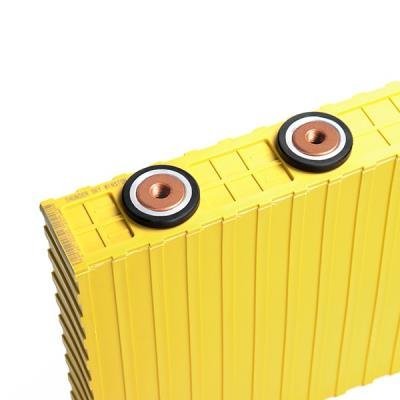

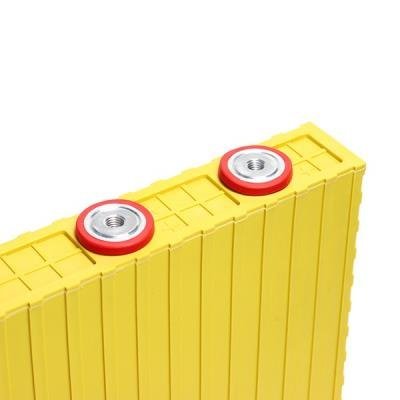

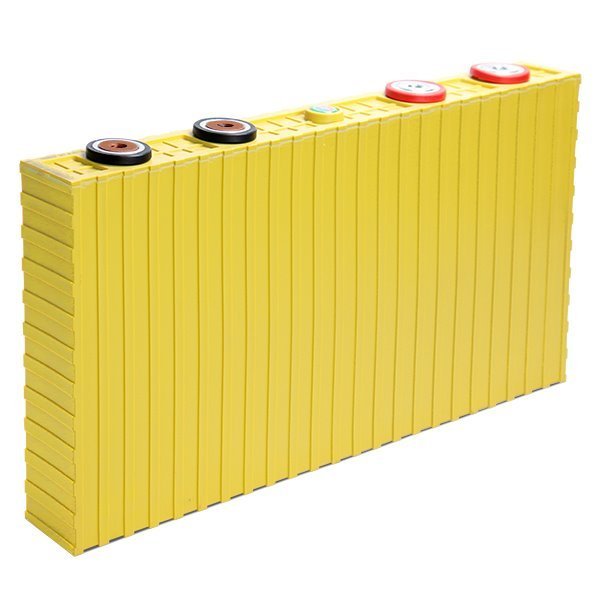

Winston Basics 700 Lithium Iron Phosphate Battery WB-LYP700AH

Product Description

The Winston Basics WB-LYP700AH is a lithium iron phosphate battery with a nominal capacity of seven hundred Ah. This three point two-volt battery is fit for high-power applications, primarily in electric vehicles and energy storage systems.

• Nominal capacity of seven hundred Ah.
• Operating voltage range of two point eight volts to four point zero volts.
• Suitable for traction and stationary applications.

Product Highlights

The battery uses lithium iron phosphate technology which ensures safety and longevity in performance. It is ideal for both traction applications such as electric vehicles and stationary applications like off-grid energy systems.

Product Information

Standard Information

• Model Number: WB-LYP700AHA
• Battery Type: LiFeYPO4

Technical Specifications

• Nominal Voltage: three point two V
• Operating Voltage: three point zero V
• Nominal Capacity: seven hundred Ah
• Internal Resistance: less than or equal to zero point three mΩ
• Maximum Charge Current: two thousand one hundred A
• Standard Charge/Discharge Current: three hundred fifty A
• Maximum Discharge Current Constant Current: less than or equal to three CA
• Impulse Current: less than or equal to ten CA
• Cycle Life (eighty percent DOD): more than or equal to five thousand times
• Cycle Life (seventy percent DOD): more than or equal to seven thousand times
• Operating Temperature Range: minus forty-five to plus eighty-five degrees Celsius
• Storage Humidity: less than or equal to seventy-five percent RH
• Self-discharge Rate: less than or equal to one percent (monthly)
• Weight: twenty-one point six kg
• Dimensions: six hundred twenty-seven by three hundred five by sixty-seven mm
• Shape: Prismatic
• Electrolyte: Lithium
