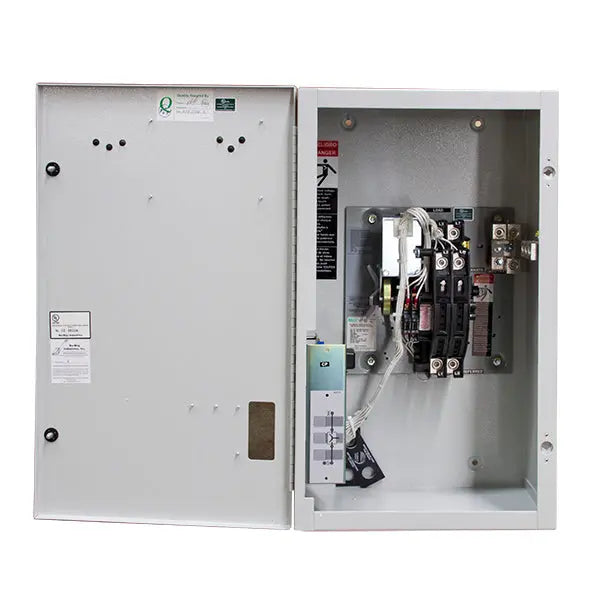

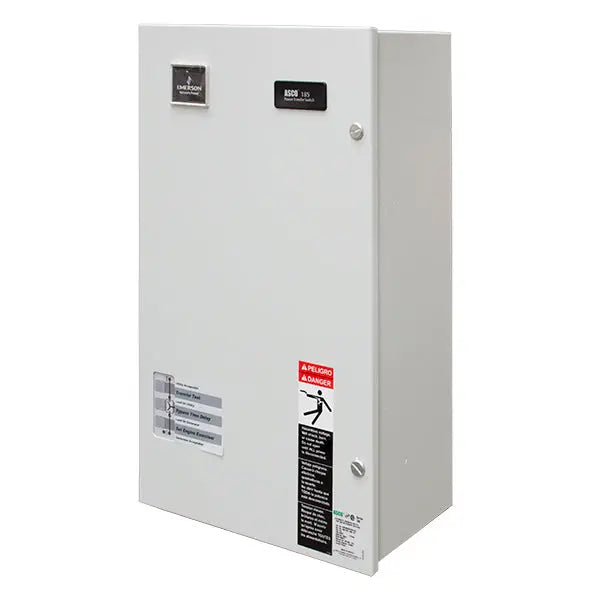

WINCO 97714-375 ASCO185 Series Automatic Transfer Switch

Product Description

The WINCO ASCO185 Series Automatic Transfer Switch with MPN 97714-375 offers reliable power management during utility outages. This transfer switch activates the generator and transfers the load quickly when utility power fails. Once power is restored, it switches back automatically and shuts down the generator with a delay.

• Ensures power continuity during utility failures.
• Complies with UL 1008 standards for handling system loads.
• Offers a weekly exercise mode that can work with or without load.

Product Highlights

This switch is essential for maintaining electrical supply when the main power fails.

Product Information

Standard Information

• Series: 185 Series
• Rating: SE Rated

Technical Specifications

• Amperage: 200 Amps
• Voltage Output: 240V
• Current Limiting Fuses: 200kA
• Dimensions: 14.25 inches x 8.25 inches x 24 inches
• Withstand & Close-On Rating: Supports up to 10kA with circuit breakers.
