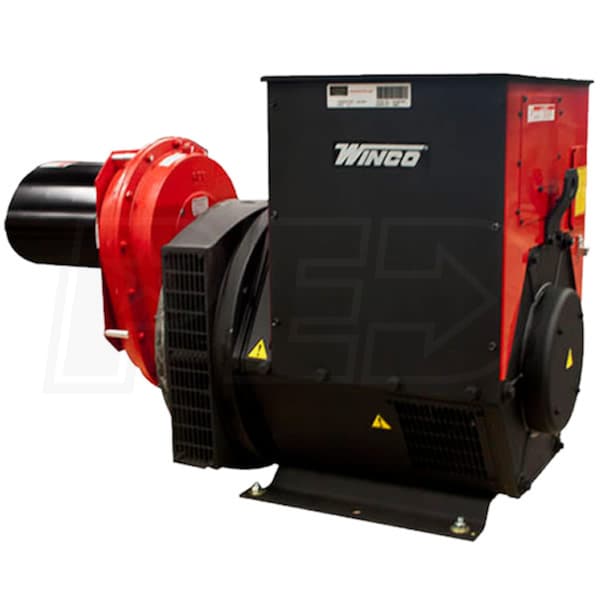

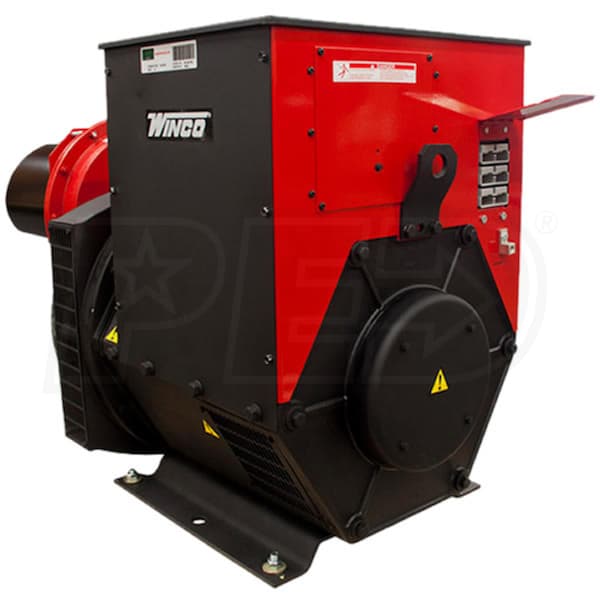

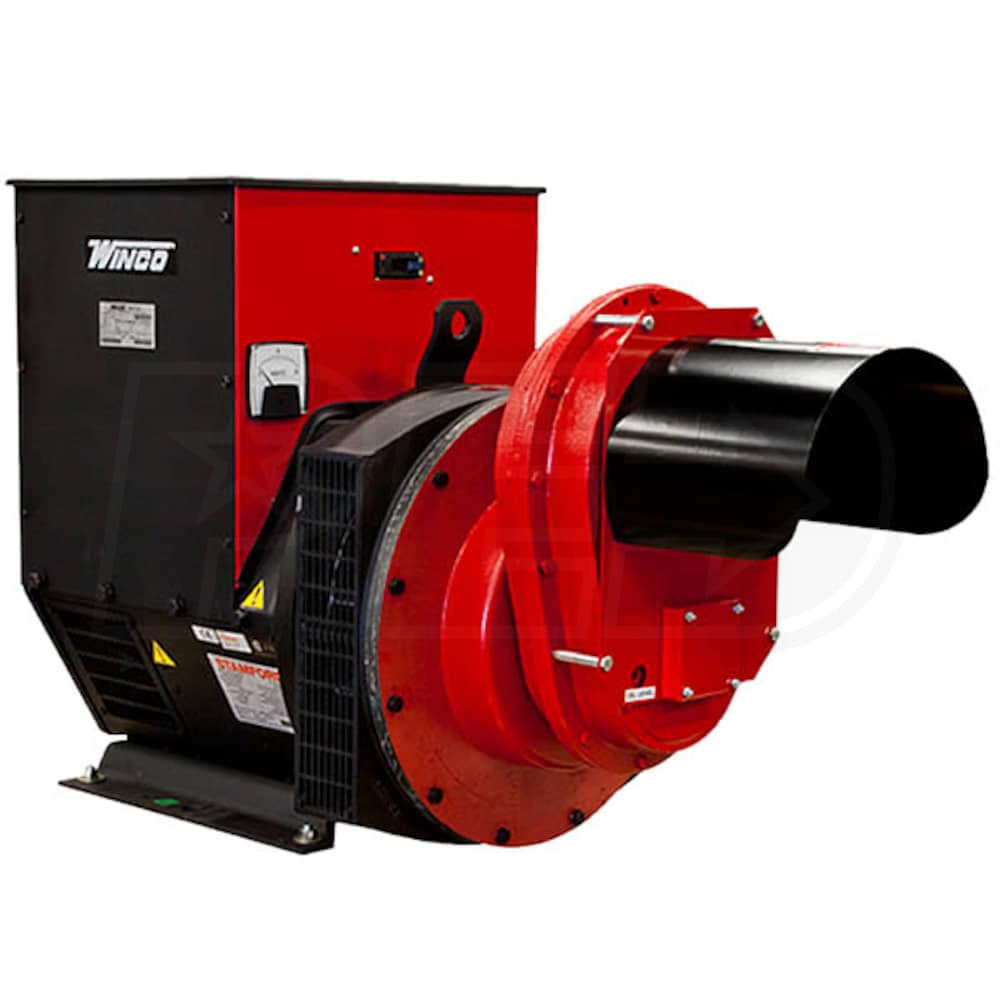

WINCO 64868-011 105kW PTO Generator

Product Description

The WINCO 64868-011 is a powerful 105kW PTO generator that converts the power from your tractor into usable electrical energy. This unit operates on three-phase power at 120/240 volts and is designed for tractors with a minimum of 210 horsepower using a 1000 RPM PTO speed.

• Operates at 120/240V three-phase power
• Requires a 210 HP engine with 1000 RPM PTO
• Features a brushless alternator and automatic voltage regulation

Product Highlights

This generator is equipped with a brushless alternator for enhanced reliability and automatic voltage regulation to maintain consistent output. Ideal for agricultural applications, it ensures you have the necessary electrical supply on the go.

Product Information

Standard Information

• Brand: Winco
• MPN: 64868-011

Technical Specifications

• Power Type: Conventional
• Phase: 3 ph
• Rated Watts: 105,000 Watts
• Running Watts: 105,000 Watts
• Surge Watts: 105,000 Watts
• Output Voltage: 120/240 Volt Three Phase
• Output Current: 316 Amps
• Frequency: 60 Hertz
• PTO RPM: 1000 RPM
• Required HP at Tractor PTO: 210
• Voltage Regulation: Automatic Voltage Regulator (AVR)
• Alternator: Brushless
• Voltage Meter: Yes
• Receptacles: NEMA 5-20R, NEMA 6-50R, 350A Anderson
• Dimensions: 47 x 21.2 x 30.4 inches
• Weight: 1206 lbs
• Unit Warranty: 3 Years
• Assembled In: USA
