Winco 64863-009 100A 3-Phase Manual Transfer Switch

Product Description

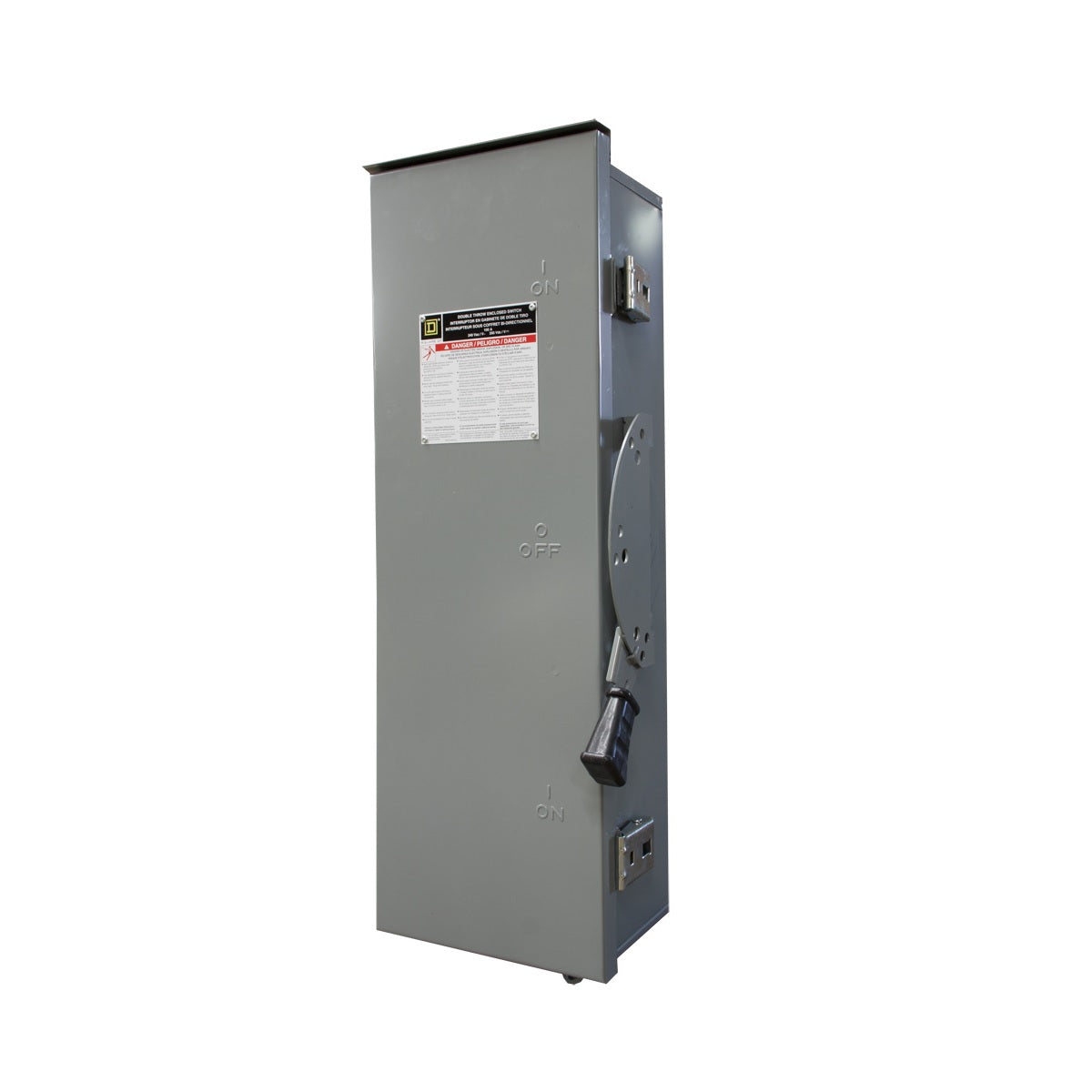

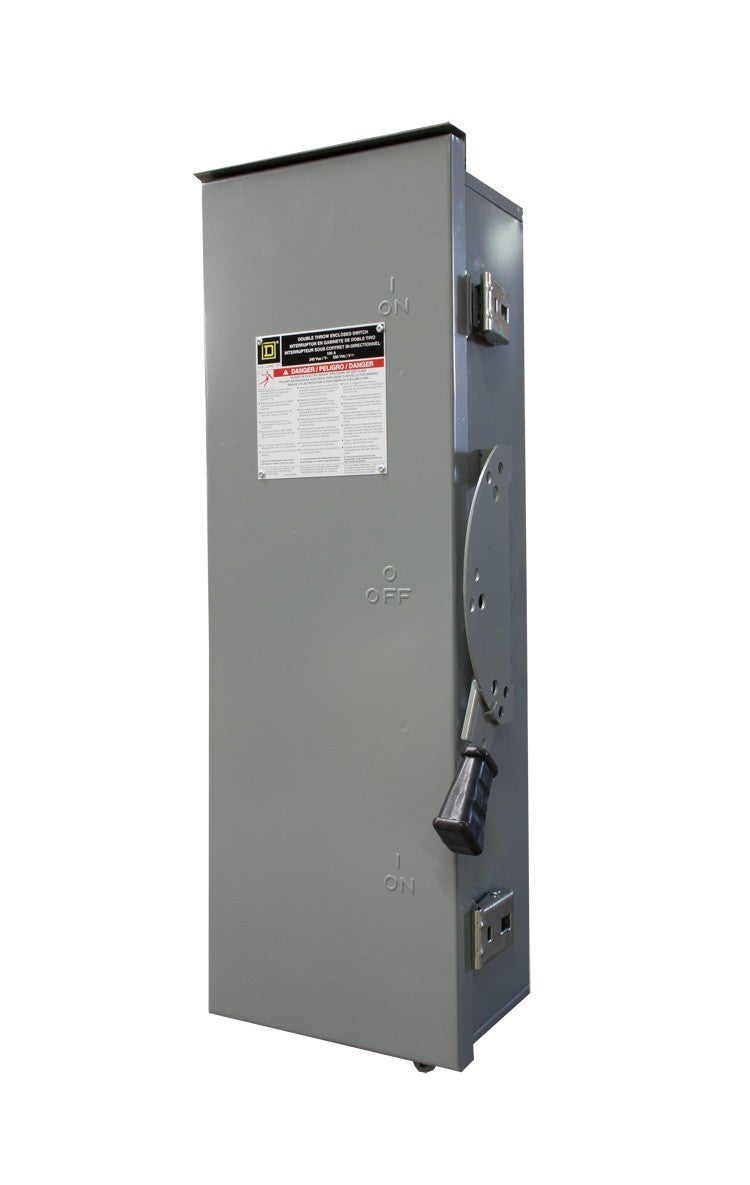

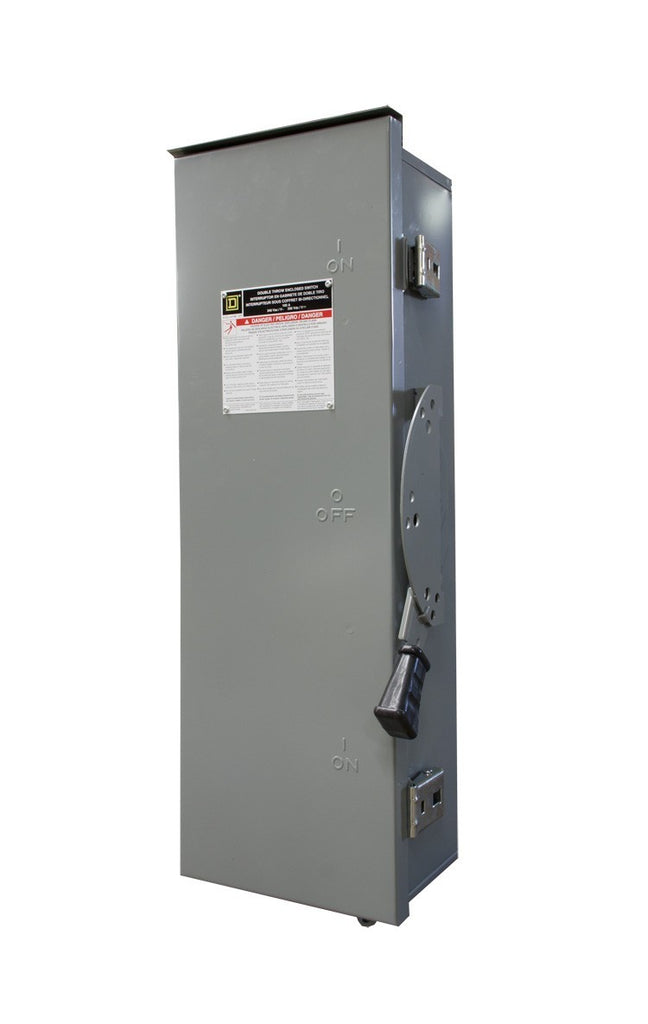

The Winco 64863-009 is a manual transfer switch rated at one hundred amperes. This switch operates with three phases and is designed for outdoor applications. It allows for easy manual connection or disconnection of electrical loads from a power source. The visible blades indicate whether the switch is in the on or off position, ensuring safety and visibility during usage.

• Non-fusible double throw manual switch.
• NEMA 3R rated enclosure for outdoor use.
• Suitable for residential, light commercial, industrial, and agricultural applications.

Product Highlights

This transfer switch is ideal for manually switching power sources, providing reliability in various settings.

Product Information

Standard Information

• Manufacturer: Winco
• MPN: 64863-009

Technical Specifications

• Rated Amperage: 100 A
• Input Voltage: 120/208V, 120/240V, 208/240V
• Phase: 3-Phase
• Poles: 3
• Frequency: 60 Hz
• Enclosure Rating: NEMA 3R
• Certifications: UL Listed
• Weight: 58 lbs
• Dimensions: 30.5L x 10.25W x 12H
