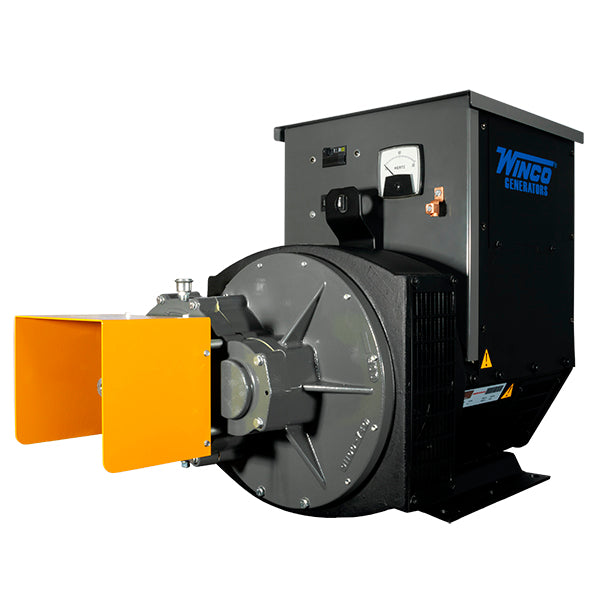

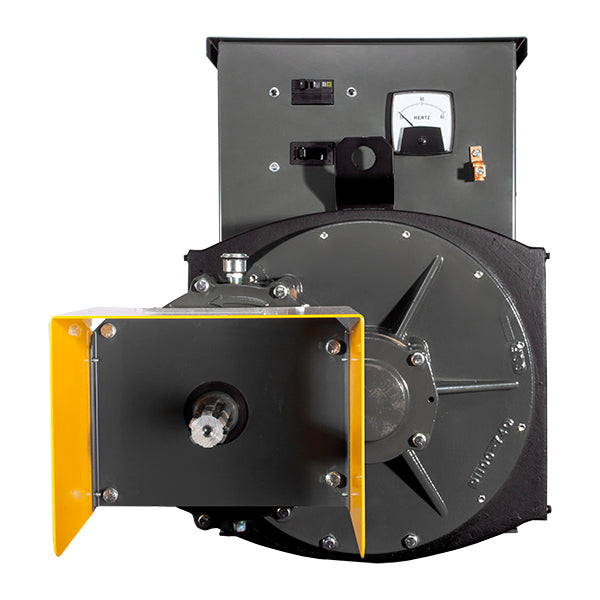

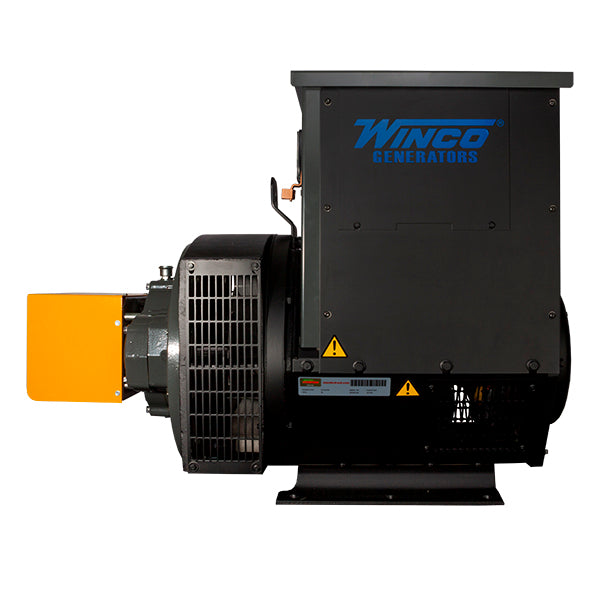

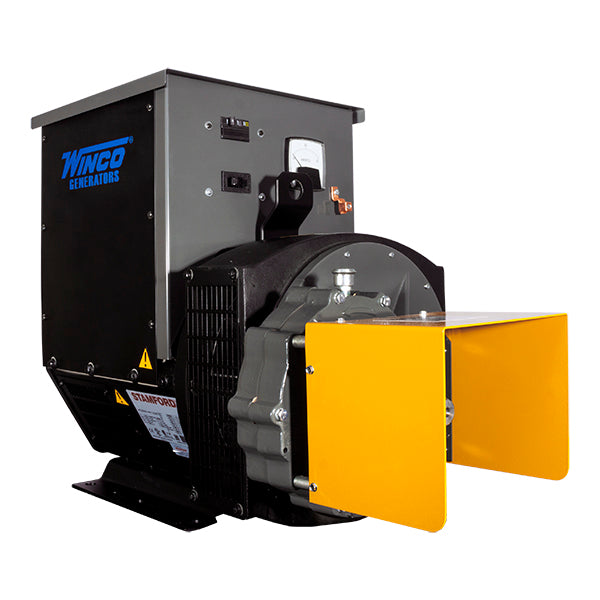

WINCO 205554-211 PTO Generator, 55kW, 346/600V, 3-Phase, 540 RPM

Product Description

The WINCO 205554-211 is a PTO generator designed to provide reliable three-phase power. It operates at a voltage of 346/600V and runs at 540 RPM. This generator is ideal for agricultural uses and other applications requiring robust power sources.

• Provides a three-phase, 346/600V power output.
• Operates efficiently at 540 RPM.
• Includes a protective PTO shield and a five-wire Anderson full power plug.

Product Highlights

The generator is equipped with essential features like a frequency meter and premium circuit breakers, ensuring safety and performance in various applications.

Product Information

Standard Information

• Manufacturer: WINCO
• MPN: 205554-211

Technical Specifications

• Power Type: Conventional
• Phase AC: 3PH
• Voltage VAC: 346/600
• Frequency Hz: 60
• Input Shaft Size: 1 3/8 6-spline
• PTO Input Speed: 540 RPM
• Voltage Regulation: AVR
• Standby Watts: 55,000
• Continuous Watts: 46,400
• Standby Amps: 52 @ 1.0 PF / 66 @ 0.8 PF
• Continuous Amps: 44 @ 1.0 PF / 55 @ 0.8 PF
• Anderson Connector: 175 Amps
• Input HP: 110 hp
• Weight: 745 lbs
• Dimensions: 41 x 20 x 27 inches
• Unit Warranty: 3 Years
• Assembled In: USA
