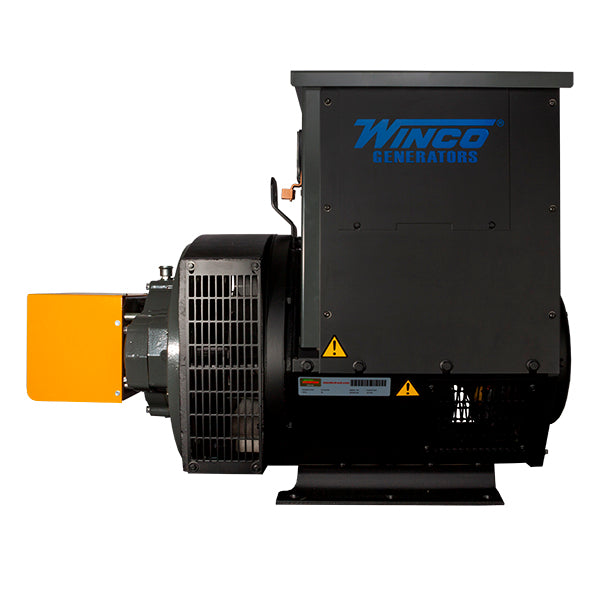

WINCO 205514-181 PTO Generator 277/480V Three Phase

Product Description

The WINCO 55PTOT4-18 PTO Generator 205514-181 is a three-phase generator that outputs 277/480V. This unit is PTO driven, making it suitable for various applications including commercial, industrial, farm, and ranch uses. It comes equipped with an automatic voltage regulator (AVR) to ensure steady voltage output. Users can monitor the frequency with the included frequency meter. It features a full power Anderson receptacle for easy connectivity.

• Provides 277/480V three-phase power.

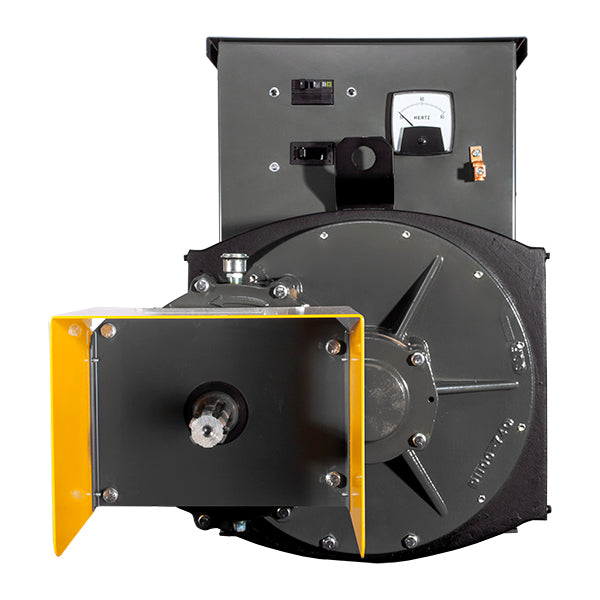

• Equipped with a 1000 RPM gearcase.

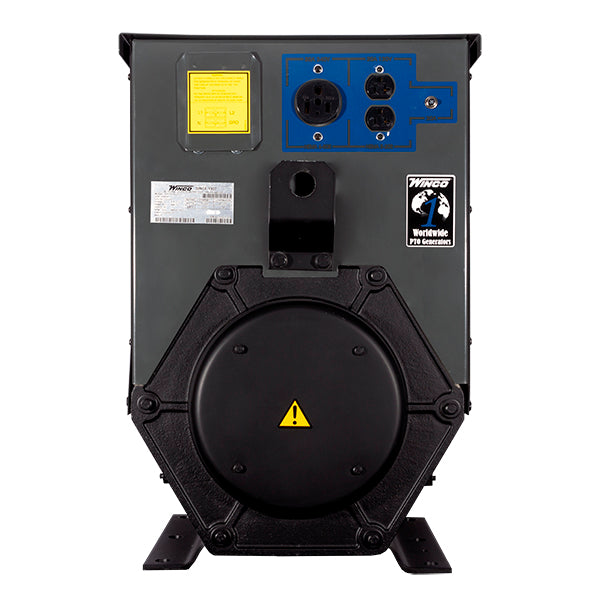

• Features an Anderson connector for power output.

Product Highlights

This generator is ideal for powering equipment in demanding environments. It is built to perform reliably in industrial and agricultural settings.

Product Information

Standard Information

• Manufacturer: WINCO
• MPN: 205514-181

Technical Specifications

• Power Type: Conventional
• Phase AC: Three
• Voltage VAC: 277/480
• Housing: Open
• Product Applications: Commercial / Industrial Power, Farm and Ranch
• Voltage Output: 277/480 Volt Three Phase
• Voltage Regulation: AVR
• Anderson Connector: 175 Amps
• PTO Input Speed: 1000 RPM
• Input Shaft Size: 1 3/8 6-spline
• Weight: 745 lbs
• Warranty: 3 years
• Frequency Hz: 60
• Continuous Watts: 46400
• Standby Watts: 55000
• Continuous Amps: 55 @ 1.0 PF / 69 @ 0.8 PF
• Standby Amps: 66 @ 1.0 PF / 82 @ 0.8 PF
• Generator Speed: 1800 rpm
• Receptacles: 1-Full power Anderson receptacle
• Dimensions LxWxH: 41 x 20 x 27 inches
• Input HP: 110 hp
• Max Watts: 55 kW
• Max Amps: 82A (0.8 pf)
