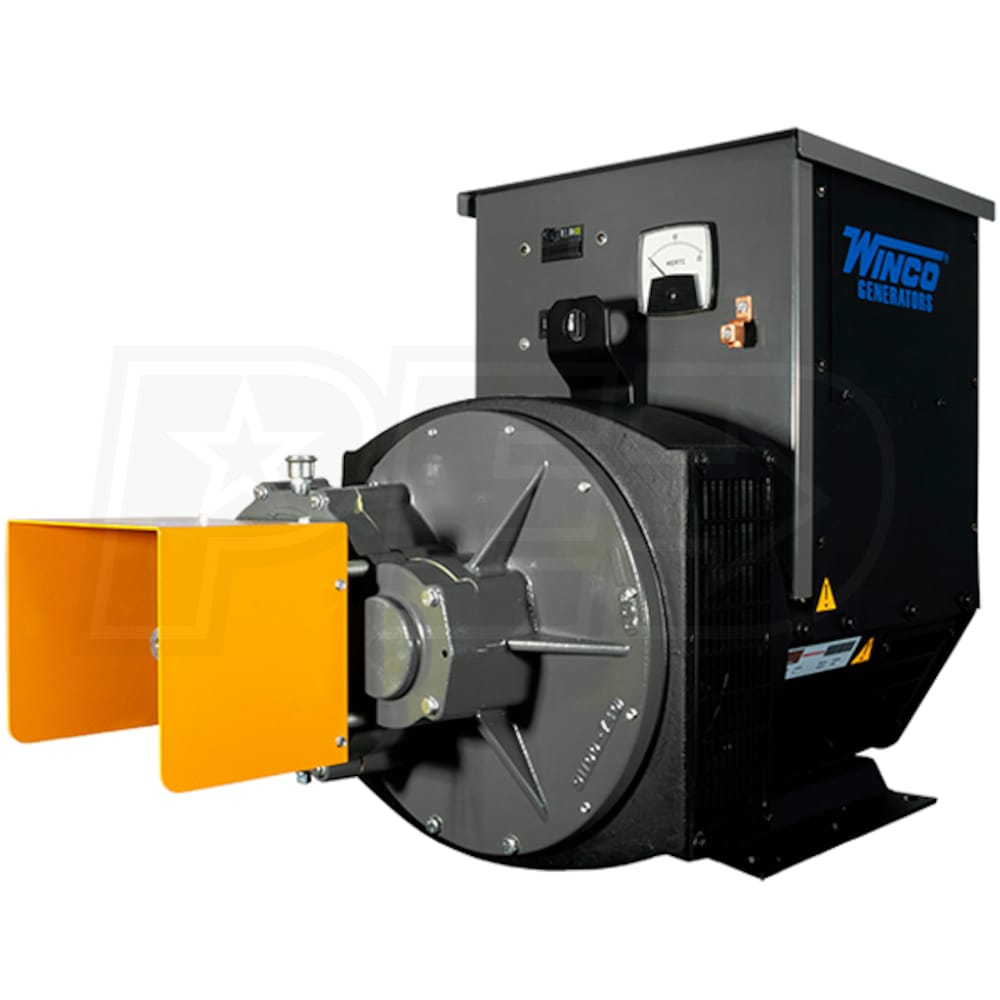

Winco 205054-031 PTO Generator, 50 kW

Product Description

The Winco 205054-031 is a PTO generator designed to convert tractor power into electrical energy. This unit requires a one hundred horsepower engine and connects through a one and three-eighths inch six-spline PTO shaft, operating at five hundred forty RPM. It supplies 120/240 volts of single-phase power and is equipped with an automatic voltage regulator for stable performance.

• Provides 120/240 volts single-phase power.
• Equipped with a one and three-eighths inch six-spline PTO shaft.
• Includes a frequency meter for output monitoring.

Product Highlights

This generator is ideal for agricultural use and provides reliable electricity when needed. It is load tested before shipping to ensure functionality and safety.

Product Information

Standard Information

• Brand: Winco
• MPN: 205054-031

Technical Specifications

• Generator Style: PTO Generator
• Grade Type: Professional
• Voltage Output: 120/240 Volt Single Phase
• Frequency: 60 Hertz
• Continuous Watts: 40,000
• Standby Watts: 50,000
• Rated Amps: 208 Amps
• Standby Amps: 208 @ 1.0 PF
• Continuous Amps: 166 @ 1.0 PF
• Tractors HP: 100 HP
• PTO RPMs: 540 RPM
• PTO Shaft: 1 3/8 6-spline 540 RPM
• Alternator: Brushless
• Voltage Regulation: AVR (Automatic Voltage Regulator)
• Total Harmonic Distortion: Less Than 5%
• 120V Receptacles: (2) NEMA 5-20 20A
• 240V Receptacles: (1) NEMA 6-50R 50A
• 120/240 Anderson Connector: 175 Amps
• Full Power Receptacle: 1
• Circuit Breakers: 200 Amp
• Control Panel Display: Yes, Frequency Meter
• Unit Dimensions: 37L x 21.0W x 24.3H
• Weight: 680 Pounds
• Unit Warranty: 3 Years
• Assembled In: USA
