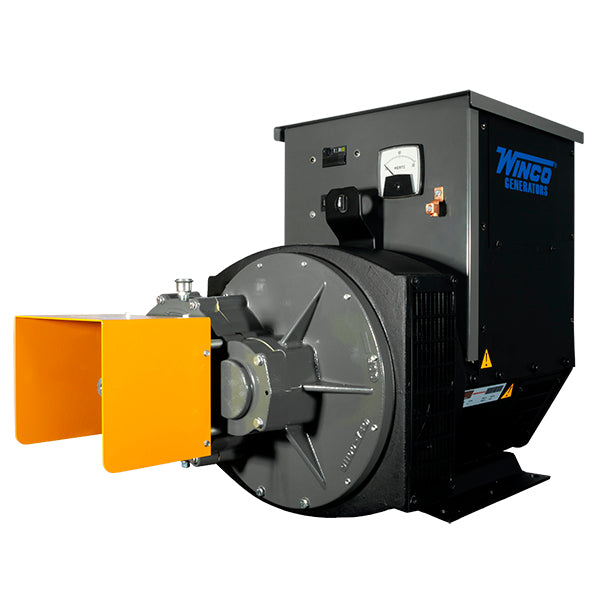

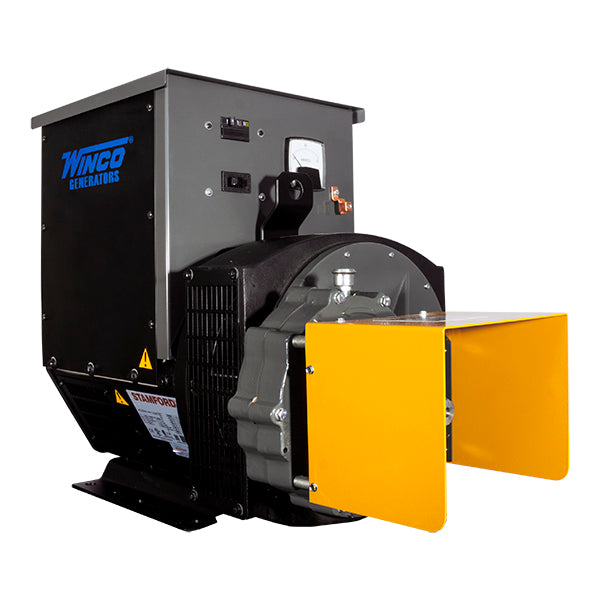

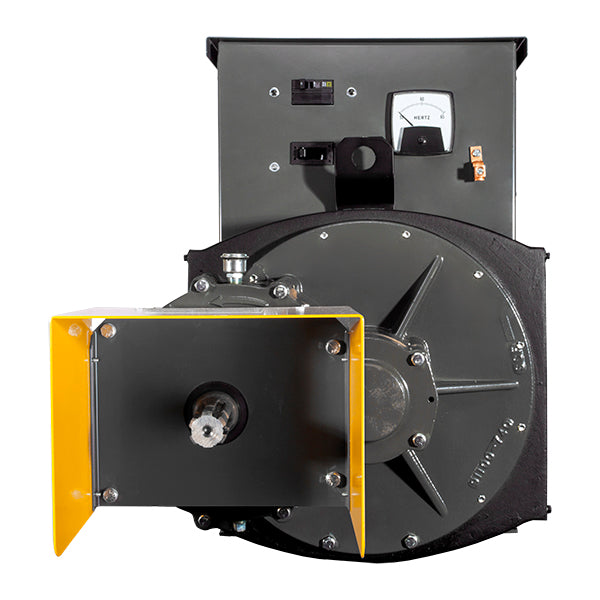

WINCO 205014-171 50kW PTO Generator

Product Description

The WINCO 205014-171 is a 50kW PTO driven generator, designed to provide a dependable three-phase 120/240V power source for various applications. It features a 1000 RPM gearcase, ensuring efficient performance. The unit is equipped with an automatic voltage regulator (AVR) for stable voltage output, along with multiple receptacles for effective power distribution. A 1 3/8 6-spline PTO shaft enables easy connection to a tractor, enhancing usability.

• Provides 120/240V three-phase power.
• Equipped with a 1000 RPM gearcase.
• Features a 1 3/8 6-spline PTO shaft.

Product Highlights

This generator is load tested before leaving the factory to ensure reliability and functionality for users.

Product Information

Standard Information

• Manufacturer: Winco
• MPN: 205014-171

Technical Specifications

• Power Type: Conventional
• Phase AC: 3PH
• Voltage VAC: 120/240
• Frequency Hz: 60
• Standby Watts: 50000
• Continuous Watts: 42000
• Standby Amps: 120 @ 1.0 PF / 150 @ 0.8 PF
• Continuous Amps: 101 @ 1.0 PF / 126 @ 0.8 PF
• Voltage Regulation: AVR
• PTO Input Speed: 1000 RPM
• PTO Shaft: 1 3/8 6-spline
• Input HP: 100 hp
• 120V Receptacles: (2) NEMA 5-20 20A
• 240V Receptacles: (1) NEMA 6-50R 50A
• Anderson Connector: 175 Amps
• Dimensions: 41 x 20 x 27 inches
• Weight: 680 lbs
• Warranty: 3 years
