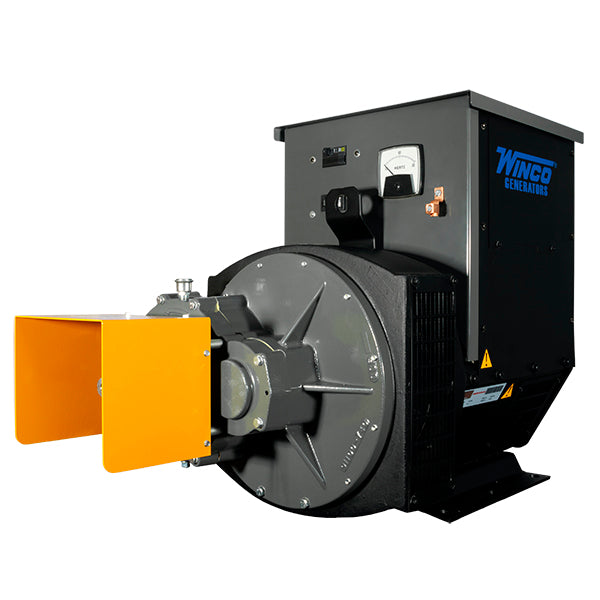

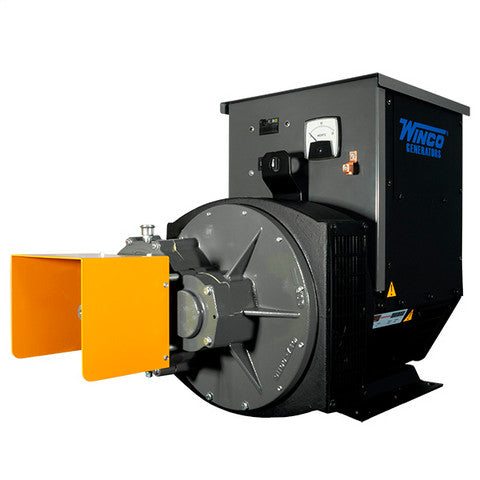

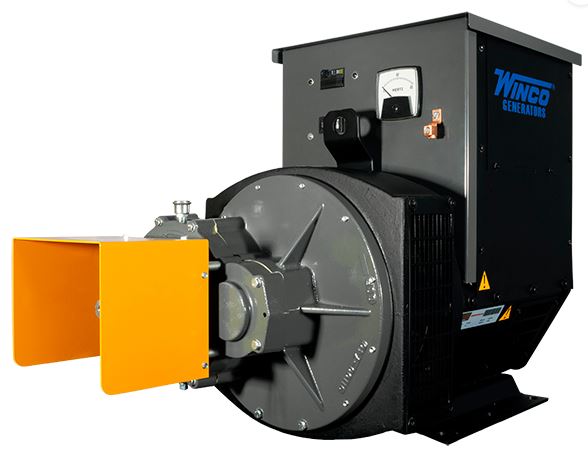

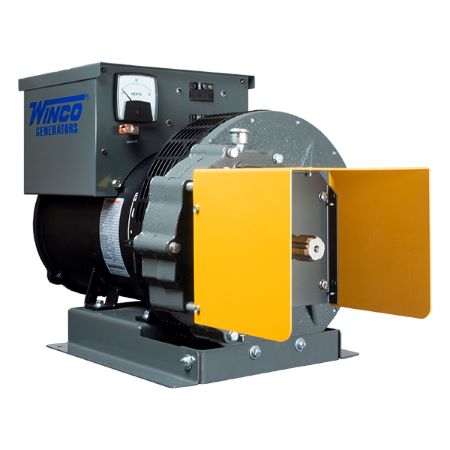

WINCO 205014-041 PTO Generator 50kW 120/208V 3-Phase 205014-041

Product Description

The WINCO 50PTOT4-041 is a PTO generator with the MPN 205014-041, designed for efficient performance and reliability. It provides a 120/208V three-phase power source suitable for various applications. The generator operates at a steady 1000 RPM and delivers up to 50,000 watts of standby power.

• Provides 120/208V three-phase power
• Features automatic voltage regulation for steady output
• Includes premium circuit breakers for enhanced safety

Product Highlights

This generator features a durable gearcase and a protective PTO shield, ensuring safety during operation. It includes a frequency meter for easy monitoring of output.

Product Information

Standard Information

• Brand: WINCO
• Manufacturer Part Number: 205014-041

Technical Specifications

• Power Type: Conventional
• Phase AC: 3PH
• Voltage VAC: 120/208
• Frequency: 60 Hz
• Standby Watts: 50000
• Continuous Watts: 42000
• Standby Amps: 138 @ 1.0 PF / 173 @ 0.8 PF
• Continuous Amps: 116 @ 1.0 PF / 145 @ 0.8 PF
• Voltage Output: 120/208 Volt Three Phase
• Voltage Regulation: AVR
• Receptacles: (2) NEMA 5-20 20A, (1) NEMA 6-50R 50A
• Anderson Connector: 175 Amps
• PTO Shaft: 1 3/8 6-spline
• PTO Input Speed: 1000 RPM
• Input Horsepower: 100 hp
• Dimensions: 41 inches x 20 inches x 27 inches
• Weight: 688 lbs
• Unit Warranty: 3 Years
