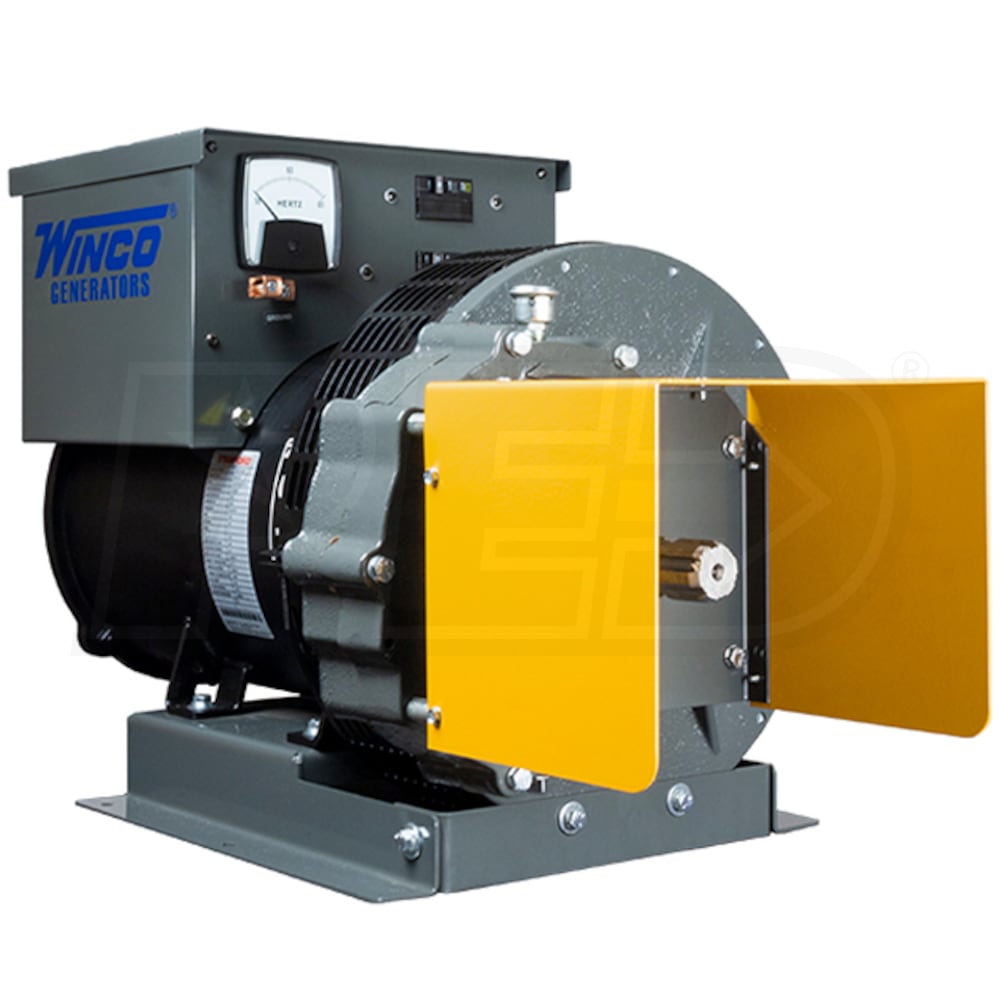

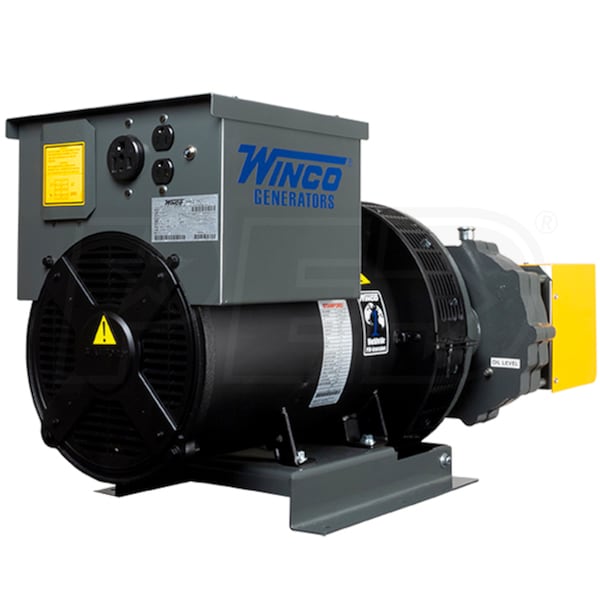

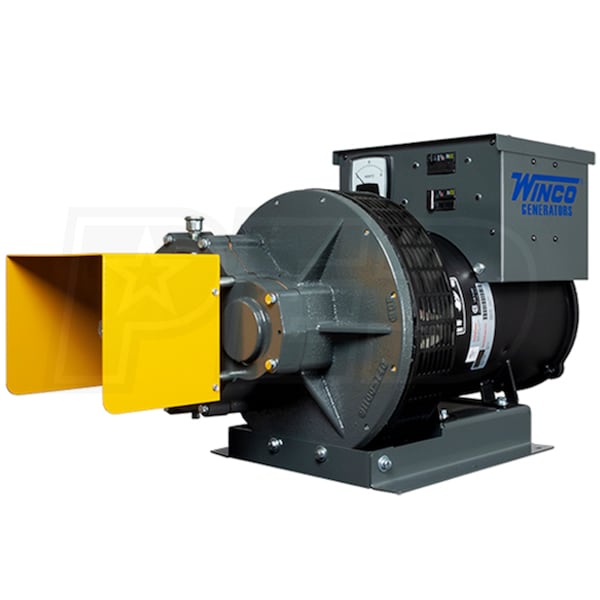

WINCO 203054-041 Winco 30PTOC4-04 PTO Generator - 203054-041

Product Description

The Winco 30PTOC4-04 PTO Generator, MPN 203054-041, generates electrical power using a tractor's engine. This generator operates as a three-phase unit and requires 63 PTO horsepower to function effectively. It is suitable for powering tools or as a backup power source. The generator includes a voltmeter for monitoring electricity usage and has a mainline circuit breaker for overload protection.

• Rated for 31,600 Watts
• Operates at 120/208V Three-Phase
• Requires a 1 3/8 6-spline 540 RPM PTO shaft

Product Highlights

This PTO generator is a reliable solution for agricultural or temporary power needs.

Product Information

Standard Information

• Brand: WINCO
• MPN: 203054-041

Technical Specifications

• Product Category: Generator - PTO
• Product Style: PTO Generator
• Rated Watts: 31600 Watts
• Voltage: 120/208 Three-Phase
• Frequency: 60 Hertz
• Rated Amps: 104 Amps
• Alternator: Brush
• Auto Voltage Regulation: Yes
• Voltage Meter: Yes
• PTO RPMs: 540 RPM
• Tractors HP: 63 HP
• Weight: 570 lbs
• Product Length: 37 Inches
• Product Width: 21 Inches
• Product Height: 24.3 Inches
• Standby Watts: 31,600
• Continuous Watts: 26,900
• Voltage Regulation: AVR (Automatic Voltage Regulator)
• PTO Shaft: 1 3/8 6-spline 540 RPM
• Input Shaft Size: 1 3/8 6-spline
• PTO Input Speed: 540 RPM
• Input HP: 63 hp
• Warranty: 3 Years
• Amps Cont. 1.0 PF (0.8 PF 3-PH): 87
• 120V Receptacles: (2) NEMA 5-20 20A
• 240V Receptacles: (1) NEMA 6-50R 50A
• Full Power Plug (Included): Anderson 4 Wire
• Phase AC: 3PH
• Voltage VAC: 120/208
