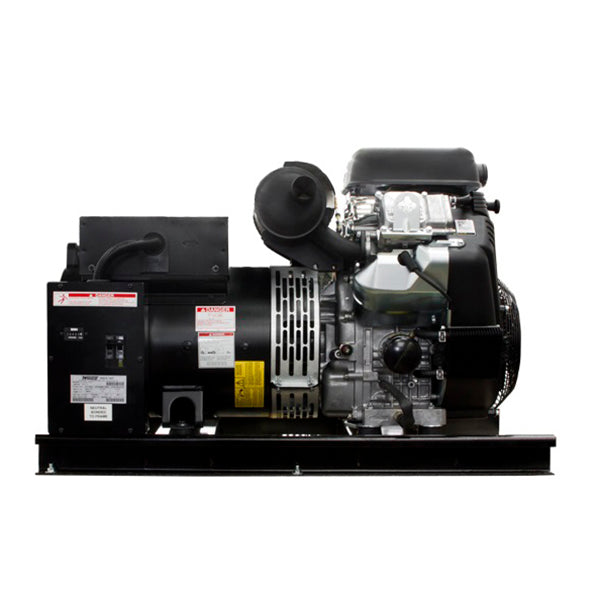

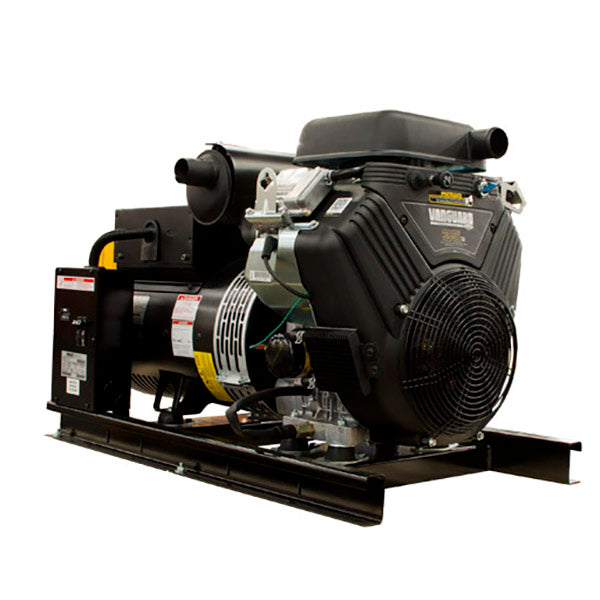

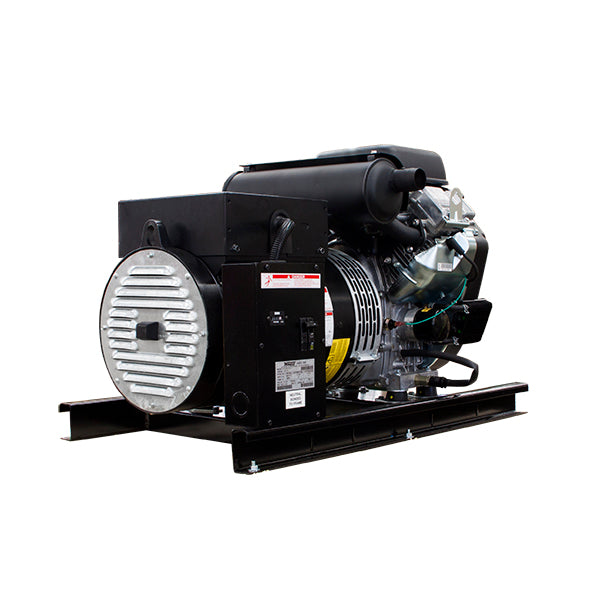

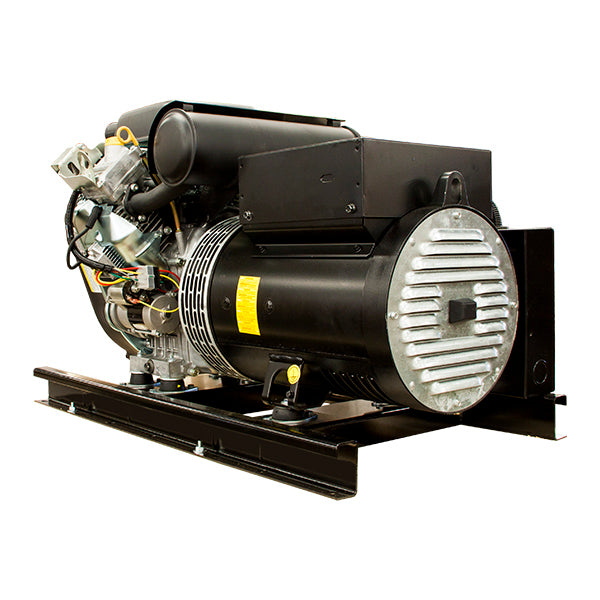

WINCO 19022-012 Vehicle Mounted Generator

Product Description

The WINCO EC22000VE-17/A is a vehicle-mounted generator with the MPN 19022-012. It is ideal for use with vehicles and trailers. This air-cooled generator offers reliable power and is a favorable alternative to liquid-cooled models. It includes an auxiliary system designed to handle motor starting inrush. Powered by a Briggs and Stratton Vanguard engine, it features low oil protection that automatically shuts down the engine when oil pressure is low.

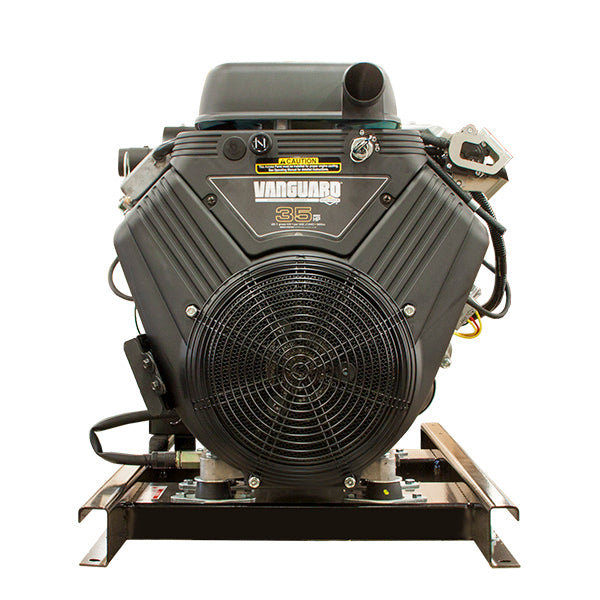

• Equipped with a Briggs and Stratton Vanguard engine
• MAUX auxiliary system for handling motor starting inrush
• Low oil protection to prevent engine damage

Product Highlights

This generator is built for durability and ease of use, making it suitable for various applications.

Product Information

Standard Information

• Starting Watts: 22,000
• Running Watts: 19,000

Technical Specifications

• Running Amps: 277/480 3-PH: 28
• Voltage Output: 120/240 Volt Three Phase
• Voltage Regulation: AVR (Automatic Voltage Regulator)
• Engine Brand: Briggs
• Fuel: Gasoline
• Emissions: EPA Prime
• Dimensions: 38 inches x 21.5 inches x 25 inches
• Weight: 515 lbs
• Unit Warranty: 2 Years
• Assembled In: USA
• Frequency Hz: 60
• Power Type: Conventional
• Phase AC: 3PH
• Voltage VAC: 120/240
• Voltage VDC: 12
• Gen/Power Rating: Standby / Intermittent
• Cooling System: Air Cooled
• Housing: Open
