WINCO 19022-008 Generator 19022-008

Product Description

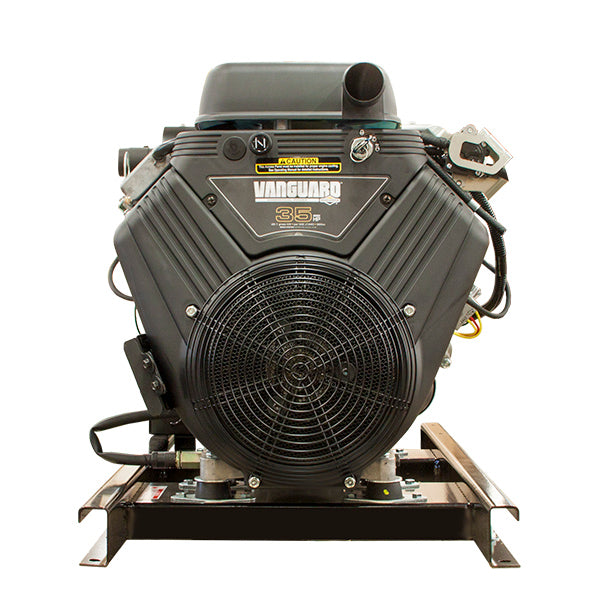

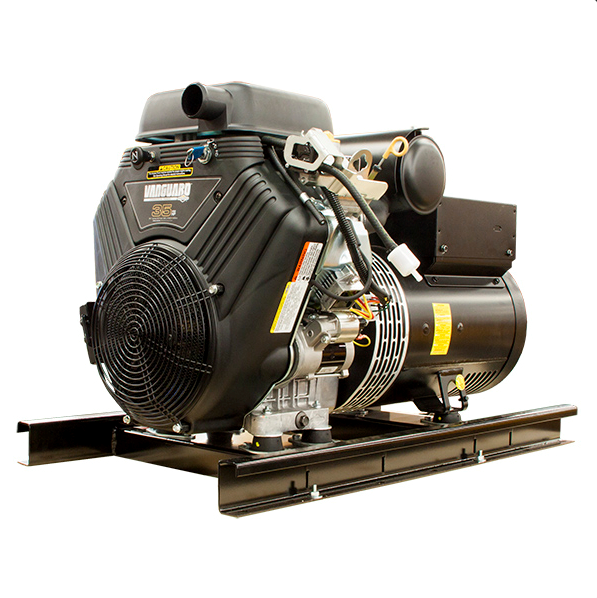

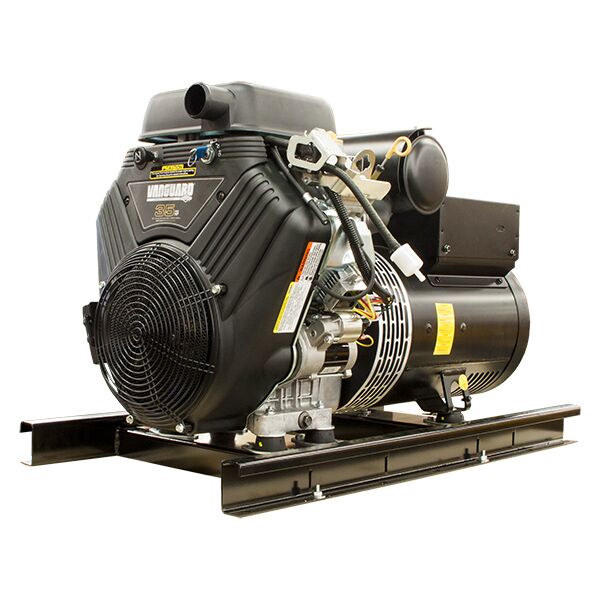

The WINCO EC22000VE-03/A is an air-cooled generator designed for vehicle or trailer mounting. It utilizes a Briggs & Stratton Vanguard engine along with an automatic voltage regulator for stable power output. This generator effectively handles motor starting inrush, making it ideal for various applications. It includes low oil protection to safeguard the engine from damage in low oil conditions. The unit undergoes thorough load testing before leaving the factory.

• Briggs & Stratton Vanguard engine included.
• Equipped with an MAUX auxiliary system for motor starting.
• Low oil protection feature ensures engine longevity.

Product Highlights

This generator is suitable for commercial, industrial, farm, and mobile applications, ensuring reliable power during critical situations such as storms and emergencies.

Product Information

Standard Information

• Application: Commercial / Industrial Power, Commercial Mobile Generators, Farm and Ranch, Food Truck, Hurricane and Storms
• Phase: 1PH

Technical Specifications

• Power Type: Conventional
• Rated Power: Standby / Intermittent
• Enclosure: Open
• Frequency: 60 Hz
• Starting Watts: 22000
• Running Watts: 19000
• Output Voltage: 120/240 V
• DC Voltage: 12 V
• Output Current: 79 A @ 240 Volts, 158 A @ 120 Volts
• Voltage Regulation: AVR (Automatic Voltage Regulator)
• Engine Brand: Briggs
• Engine Size: 993 cc
• Fuel Type: Gasoline
• Fuel Consumption: 3.3 gal/hr
• Starting System: Electric Key Start
• Emissions: EPA Prime
• Dimensions: 38 x 21.5 x 25 inches
• Weight: 515 lbs
• Warranty: 2 Years Commercial
• Assembly: USA
• Cooling System: Air Cooled
