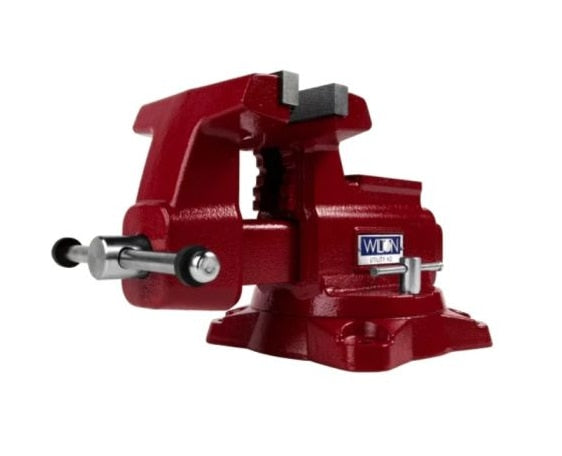

Wilton WL9-28815 Bench Vise 6.5 in Jaw 4.25 in Throat

Product Description

The WILTON WL9-28815 is a heavy-duty bench vise built for demanding shop and trade work. The body and movable jaw are constructed from 30,000 psi gray cast iron, while the base is 60,000 psi ductile iron for added durability under load. The vise features a 6.5-inch jaw width and 4.25-inch throat depth, giving technicians and tradespeople the clamping capacity needed for a wide range of workpieces. A 360-degree locking swivel base with dual lock-downs and four mounting posts keeps the vise firmly positioned during use. Built-in pipe jaws and a large anvil surface extend its utility beyond standard clamping tasks.

This bench vise is suited for use in professional shops, maintenance facilities, fabrication environments, and trade service bays. It is commonly installed on heavy workbenches where stable, repeatable clamping is required. The built-in pipe jaws make it useful for plumbing, HVAC, and general mechanical work where pipe and round stock need to be held securely. The swivel base allows repositioning without unbolting the unit from the bench, which is practical in multi-task work environments.

Key Features

• 30,000 psi gray cast iron body and movable jaw for high-load clamping
• 60,000 psi ductile iron base for structural rigidity
• 360-degree swivel base with dual lock-downs for flexible positioning
• Four mounting posts for maximum bench stability
• Built-in pipe jaws accommodate various pipe sizes
• Replaceable hardened steel top jaws for consistent grip
• Large anvil work surface for light forming and striking tasks

Compatibility

Designed as an OEM-style replacement or direct bench installation vise for professional shop and trade workbench applications.

Installation Notes

Installation is typically performed by a machinist, mechanic, or general tradesperson. Mount the vise to a solid hardwood or steel workbench using the four mounting posts and appropriately rated hardware to ensure stability under load. Ensure the mounting surface can support the vise weight of 52.1 pounds plus anticipated workpiece and clamping loads. Verify swivel lock-downs are fully engaged before applying clamping force.

Technical Specifications

• Jaw Width: 6.5 inches
• Throat Depth: 4.25 inches
• Body Material: Gray cast iron, 30,000 psi
• Base Material: Ductile iron, 60,000 psi
• Swivel Base: 360 degrees with dual lock-downs
• Mounting Posts: 4
• Weight: 52.1 pounds
• UPC: 731325749564

Standard Information

• Brand: WILTON
• Manufacturer Part Number: WL9-28815
