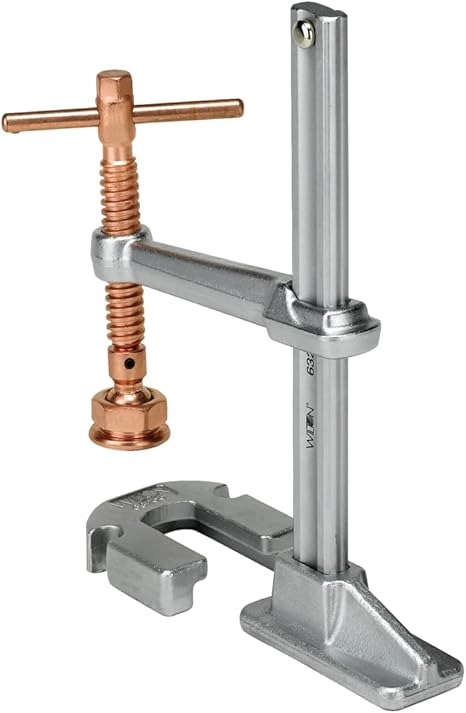

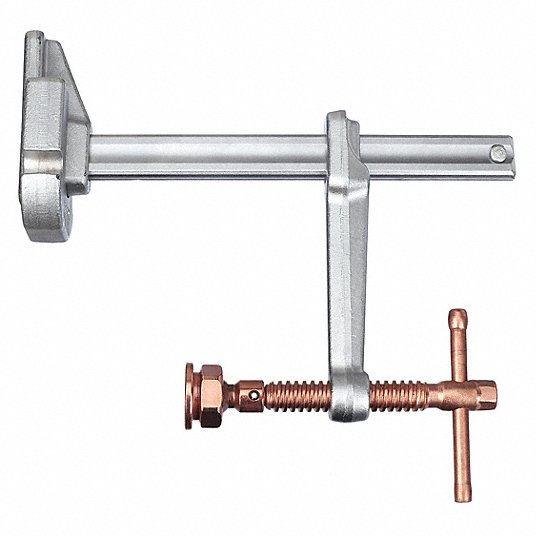

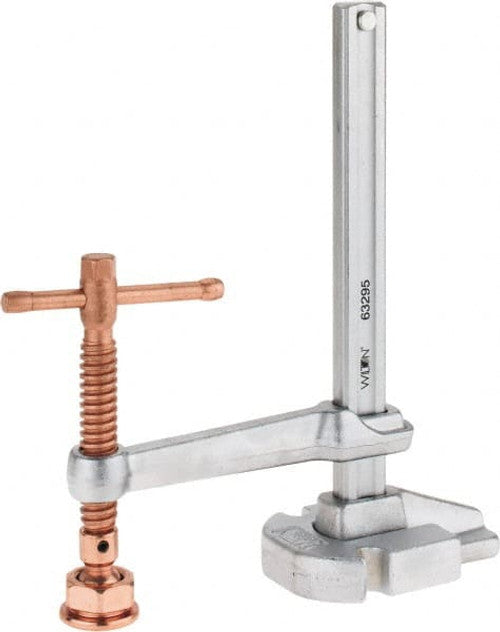

WILTON 63295 Welding Shoe Clamp 2600 lb 8 1/2 inch Jaw Opening

Product Description

The WILTON 63295 welding shoe clamp offers an opening of eight and a half inches and a throat depth of five and a half inches. It is designed for effective use in welding applications and can be securely bolted or welded to a workstation or fixture.

• Clamping force of two thousand six hundred pounds
• Flexible design simplifies setup and reduces the number of clamps needed
• Drop-forged arm allows rapid loading

Product Highlights

The clamp maintains stability while reducing setup time.

Product Information

Standard Information

• Stock Number: WL9-63295
• Warranty: Lifetime

Technical Specifications

• Clamping Force (lb.): 2600
• Nominal Rail Size (in): 1-3/16 x 9/16
• Spindle Diameter (in): 3/4
• Throat Depth (in): 5-1/2
• Gross Weight (lb): 8.25
• Net Weight (lb): 8.25
• Nominal Opening Capacity (in): 8-1/2
• Material: Alloy Steel
• Item Dimensions (L x W x H): 12.6 x 10.03 x 1.97 inches
• Clamping Height - Maximum (in): 8-1/2
• Rail Profile Thickness (in): 0.563
• Rail Profile Width (in): 1.188
• Manufacturer Part Number: 63295
• Maximum Opening Capacity (in): 8-1/2
• Rail Size (in): 1-13/16 x 9/16
