Wilton 5674022 Bi-metal Bandsaw Blade 135 Inch for Jet Horizontal

Product Description

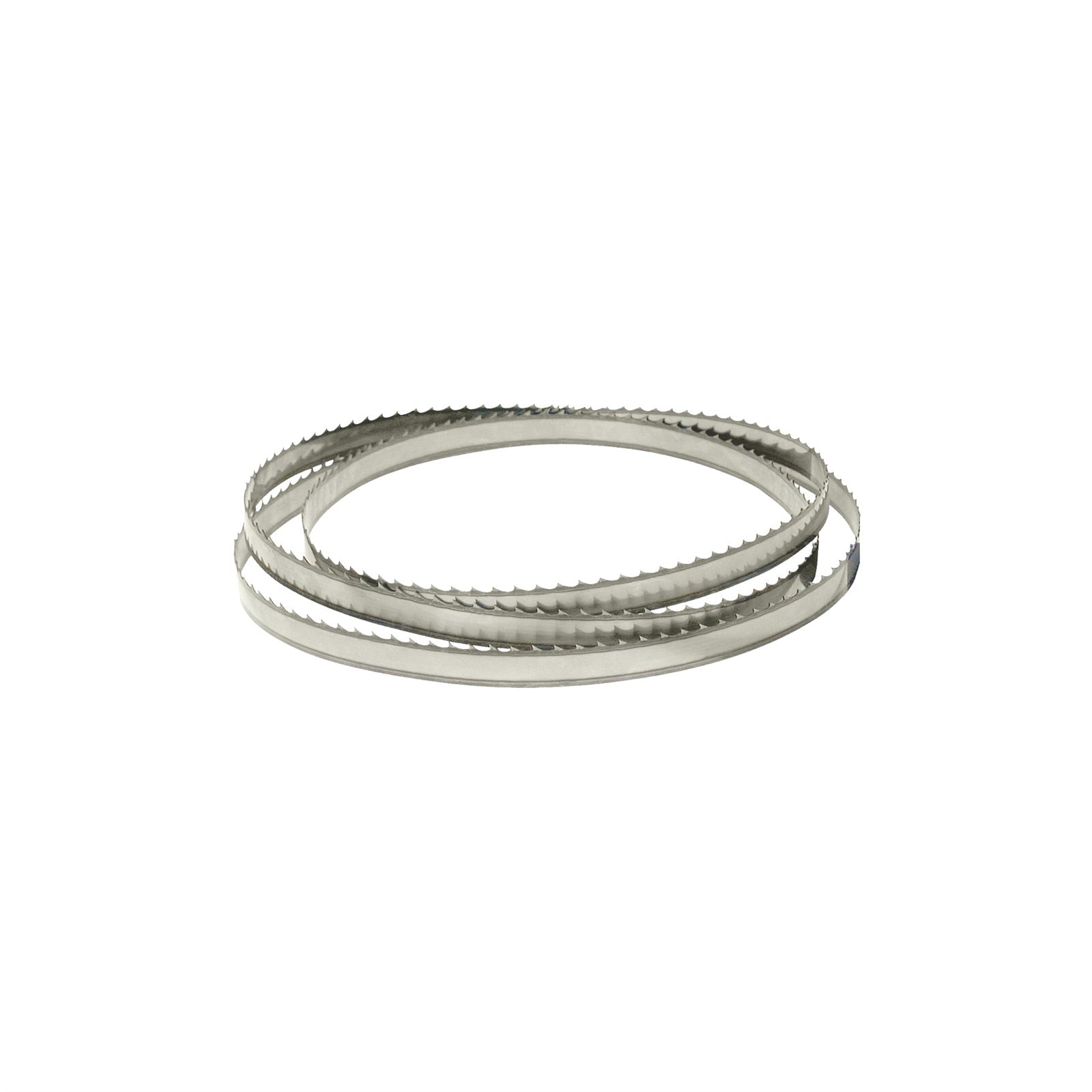

The WILTON 5674022 is a bi-metal replacement bandsaw blade engineered for horizontal band sawing operations in metal-cutting applications. Measuring 1 inch wide, 0.035 inch thick, and 135 inches in length, this blade features a 5/8 variable tooth (VT) pitch configuration that supports efficient chip clearance and smooth cutting across a range of stock sizes. The bi-metal construction bonds a high-speed steel tooth edge to a flexible alloy steel backer, delivering extended tooth life under repeated use. It is installed by machinists, metalworking professionals, and maintenance technicians performing band saw blade replacements in shop environments.

This blade is specified as a direct replacement for JET 10 inch x 16 inch horizontal bandsaws. The 5/8 VT tooth pattern is well-suited for cutting solid bar stock, structural shapes, and bundled sections commonly encountered in fabrication, maintenance, and production cutting operations. The 135-inch loop length matches the wheel-to-wheel dimension of the compatible saw models, ensuring proper tensioning and tracking without modification.

Key Features

• Bi-metal construction with high-speed steel teeth bonded to a flexible alloy backer for long service life
• 5/8 variable tooth pitch supports smooth entry and reduced vibration across varied stock profiles
• 135-inch loop length matched to JET 10 inch x 16 inch horizontal bandsaw geometry
• 1 inch blade width and 0.035 inch gauge provide rigidity for horizontal cutting applications
• Sold individually as a direct OEM-style replacement unit

Compatibility

Designed as a direct replacement blade for JET 10 inch x 16 inch horizontal bandsaws requiring a 1 inch x 0.035 inch x 135 inch blade with 5/8 VT tooth pitch.

Installation Notes

Blade replacement should be performed by a qualified technician with the saw fully powered down and locked out per OSHA lockout/tagout procedures. Wear cut-resistant gloves when handling and coiling bandsaw blades. Verify blade tension and tracking alignment after installation before resuming cutting operations. Follow the saw manufacturer's tensioning specifications for the blade width being installed.

Technical Specifications

• Blade Material: Bi-Metal
• Blade Length: 135 inches
• Blade Width: 1 inch
• Blade Thickness (Gauge): 0.035 inches
• Tooth Pitch: 5/8 VT (Variable Tooth)
• Weight: 1.2 pounds
• Sold As: Each
• UPC: 662755524998

Standard Information

• Brand: WILTON
• Manufacturer Part Number: 5674022
