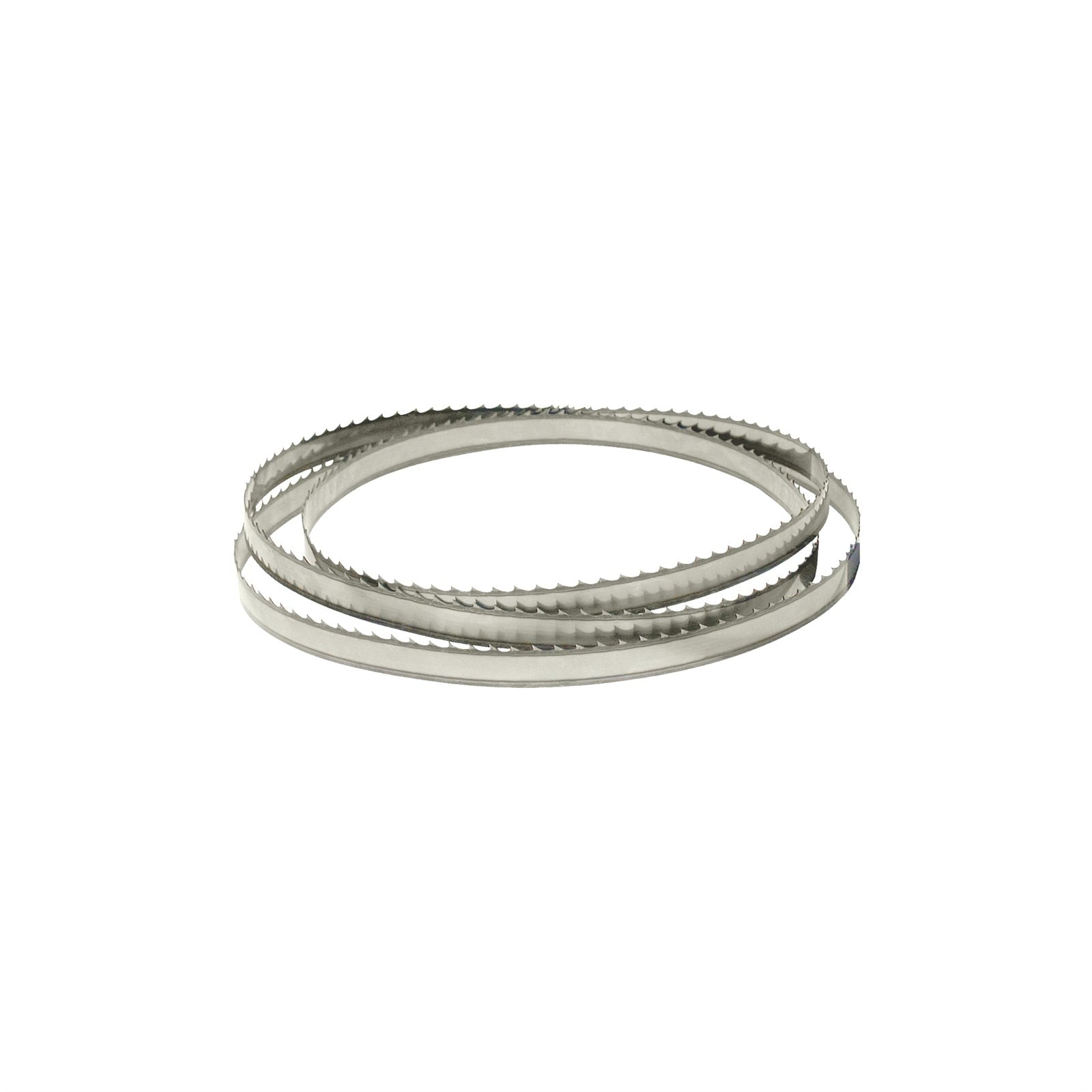

Wilton 5674011 Bi-metal Bandsaw Blade 4/6 Vt 135 Inch

Product Description

The WILTON 5674011 is a bi-metal replacement bandsaw blade sized at 1 inch wide, 0.035 inch thick, and 135 inches in length. It carries a 4/6 variable-tooth pitch, which alternates tooth spacing to reduce vibration and improve cut quality across a range of metal thicknesses. Bi-metal construction bonds a high-speed steel tooth edge to a flexible alloy steel backer, giving the blade resistance to tooth breakage under the stress of interrupted cuts and hard materials. This blade is installed by metalworking technicians and maintenance trades performing horizontal band sawing operations on metal stock, tubing, and structural shapes.

This blade is sized and specified for use in JET 10 inch x 16 inch horizontal bandsaws. The 4/6 variable-tooth pitch makes it well suited for cutting a variety of metal cross-sections where a fixed-pitch blade would produce excessive vibration or rough surface finish. Typical applications include cutting round bar, square bar, pipe, tubing, and solid stock in fabrication shops, maintenance facilities, and machine shops.

Key Features

• Bi-metal construction with high-speed steel teeth bonded to a flexible alloy steel backer
• 4/6 variable-tooth pitch reduces vibration and improves cut finish on variable stock thickness
• 135-inch loop length sized for JET 10 inch x 16 inch horizontal bandsaws
• 1-inch blade width with 0.035-inch kerf thickness for consistent, narrow cuts
• Sold as a single replacement blade unit

Compatibility

Designed as a direct replacement blade for JET 10 inch x 16 inch horizontal bandsaws requiring a 135-inch loop length and 1-inch blade width.

Installation Notes

Blade installation should be performed by a qualified technician familiar with horizontal bandsaw service procedures. Disconnect and lock out power to the saw before opening blade guards or handling the blade. Verify blade tension and tracking according to the saw manufacturer specifications before resuming operation. Wear cut-resistant gloves when handling coiled or uncoiled bandsaw blades.

Technical Specifications

• Blade Length: 135 inches
• Blade Width: 1 inch
• Blade Thickness: 0.035 inches
• Tooth Pitch: 4/6 Variable (VT)
• Blade Material: Bi-Metal
• Weight: 1 pound
• Sold As: Each
• UPC: 662755454295

Standard Information

• Brand: WILTON
• Manufacturer Part Number: 5674011
