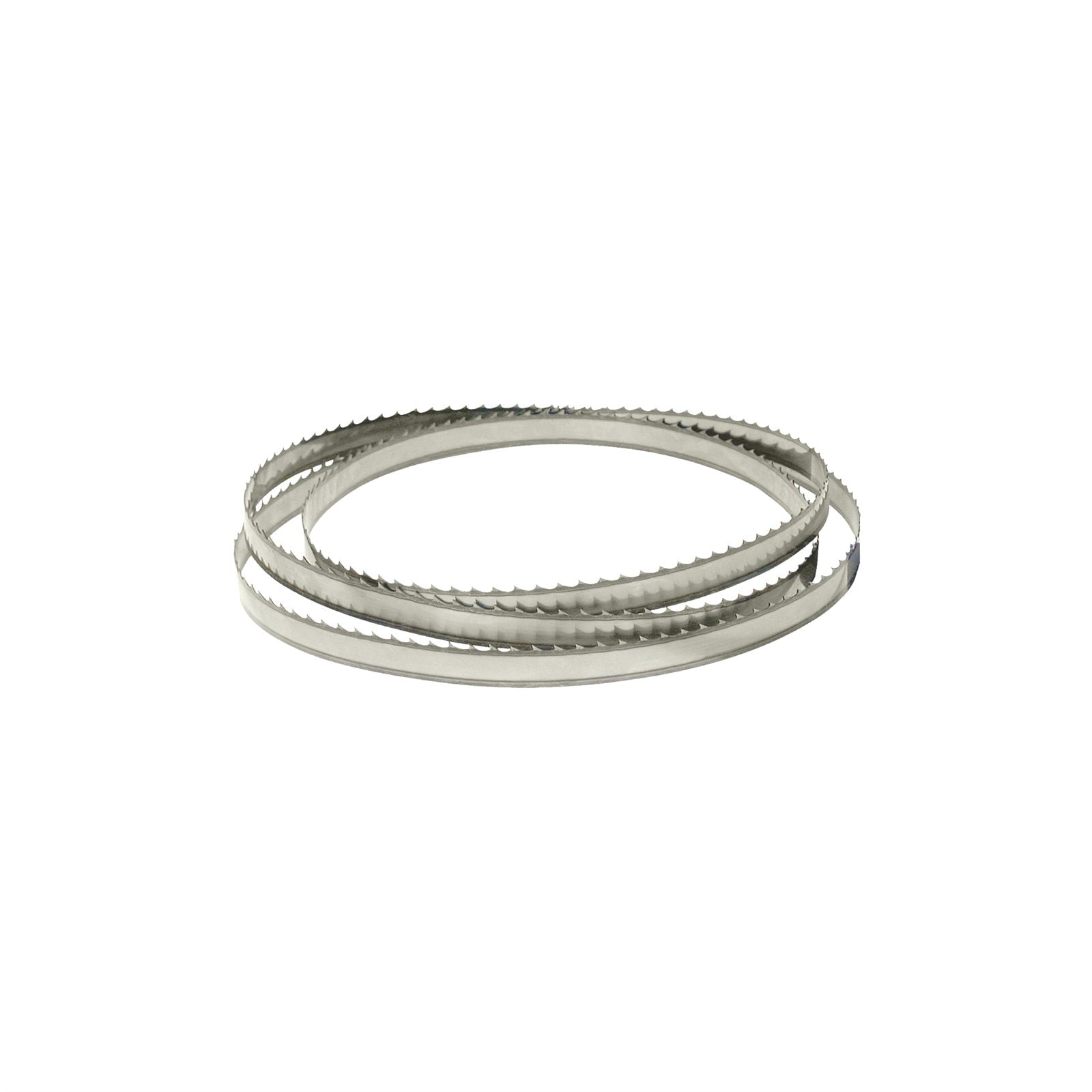

Wilton 5632142 Bi-metal Bandsaw Blade 156 Inch for Jet 12x20 Bandsaw

Product Description

The WILTON 5632142 is a bi-metal replacement bandsaw blade engineered for demanding horizontal bandsaw cutting applications. It measures 1 inch wide, 0.035 inch thick, and 156 inches in length, with a 5/8 VT tooth pattern suited for versatile material removal rates. The bi-metal construction bonds a high-speed steel tooth edge to a flexible alloy steel backer, providing resistance to tooth breakage while maintaining blade body durability under continuous feed pressure. This blade is installed by machinists, fabricators, and maintenance technicians working on semi-automatic horizontal band sawing equipment.

This replacement blade is designed for use with the JET 12 inch x 20 inch Semi-Auto Horizontal Bandsaw. Semi-automatic horizontal bandsaws are common in metalworking shops handling structural steel, bar stock, tubing, and solid round stock. The 5/8 VT tooth form accommodates a range of cross-section sizes and material types, making this blade a practical stock replacement for shops running regular production cutting cycles on this machine configuration.

Key Features

• Bi-metal construction for extended tooth life and flexible backer durability
• 5/8 VT tooth pattern for versatile cutting across a range of cross-sections and materials
• 156-inch blade length matched to JET 12 inch x 20 inch Semi-Auto Horizontal Bandsaw
• 1 inch blade width with 0.035 inch gauge for stable tracking in horizontal bandsaw guide systems
• OEM-style replacement fits without modification to standard blade guides and wheel configuration

Compatibility

Designed as a direct replacement blade for the JET 12 inch x 20 inch Semi-Auto Horizontal Bandsaw.

Installation Notes

Blade installation on horizontal bandsaws should be performed by a qualified machinist or maintenance technician with the machine powered off and locked out per OSHA lockout/tagout procedures. Confirm blade tension and guide bearing clearance per the saw manufacturer's specifications before returning the machine to service. Handle coiled blades with cut-resistant gloves, as bi-metal blades store significant spring energy when coiled.

Technical Specifications

• Blade Length: 156 inches
• Blade Width: 1 inch
• Blade Thickness (Gauge): 0.035 inch
• Tooth Pattern: 5/8 VT
• Blade Material: Bi-Metal
• Weight: 1 pound
• Sold As: Each

Standard Information

• Brand: WILTON
• Manufacturer Part Number: 5632142
